- Data Sheet: C2-88

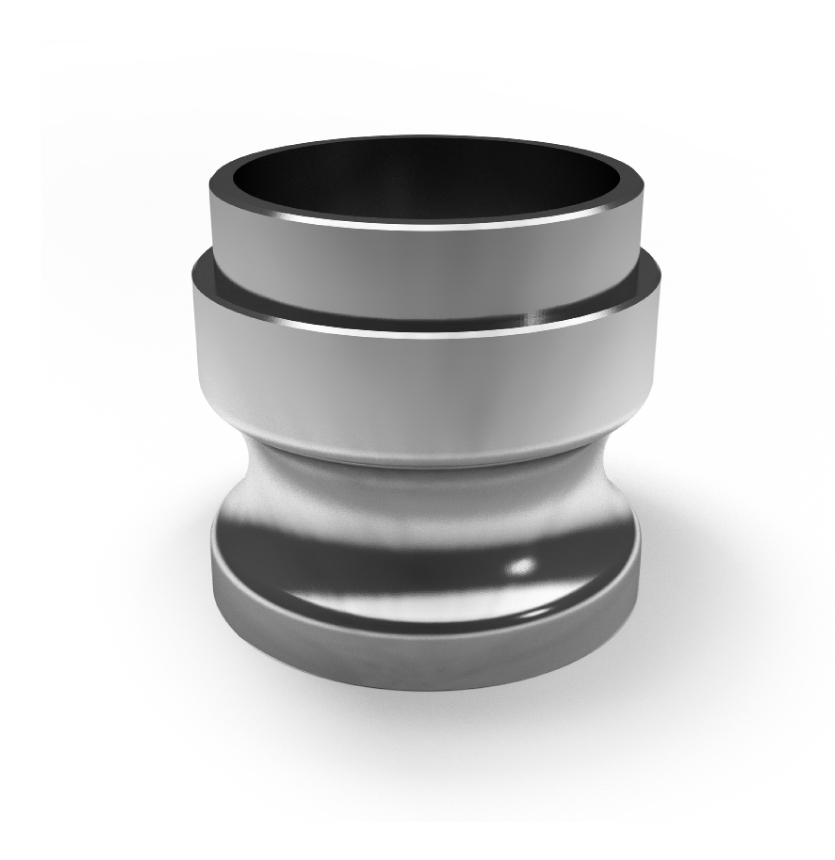

AISI 316L AW Type - EN 14420-7:2004 CAM & GROOVE - Diflon F15

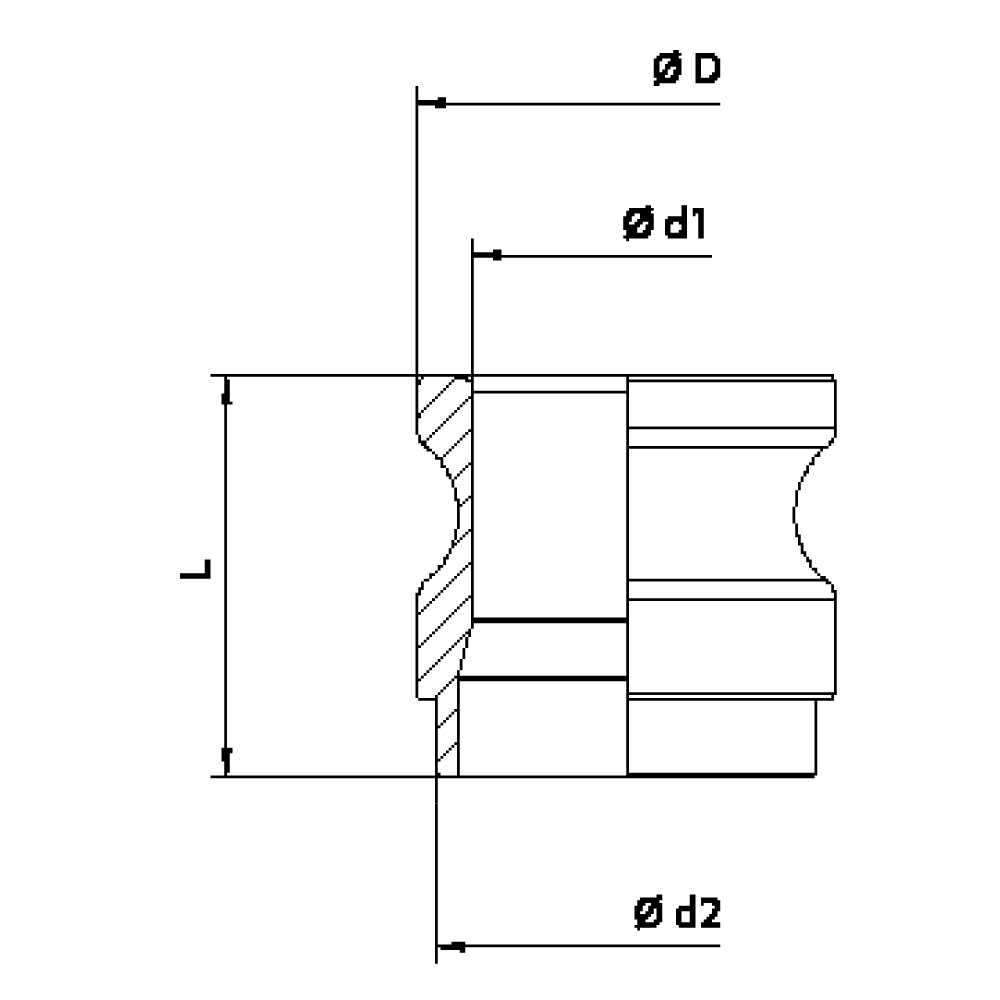

| DN | L | ØD | Ø d1 | Ø d2 |
|---|---|---|---|---|
| 15 - ½" | 33 | 24,5 | 13 | 21 |
| 20 - ¾" | 35 | 29 | 21 | 26 |
| 25 - 1" | 44 | 36,5 | 24 | 33 |
| 32 - 1 ¼" | 50 | 44,5 | 32 | 42 |
| 40 - 1 ½" | 52 | 53 | 38 | 48 |
| 50 - 2" | 62 | 63 | 48 | 60 |
| 65 - 2 ½" | 65 | 75,5 | 60 | 76 |
| 80 - 3" | 65 | 91 | 73 | 89 |
| 100 - 4" | 70 | 120 | 99 | 114 |
