    PTFE Conveyor

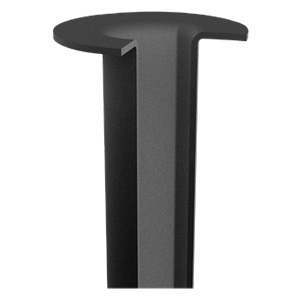

DIFLINE COLORS

▶PTFE Conveyor
Data Sheet: D2-64

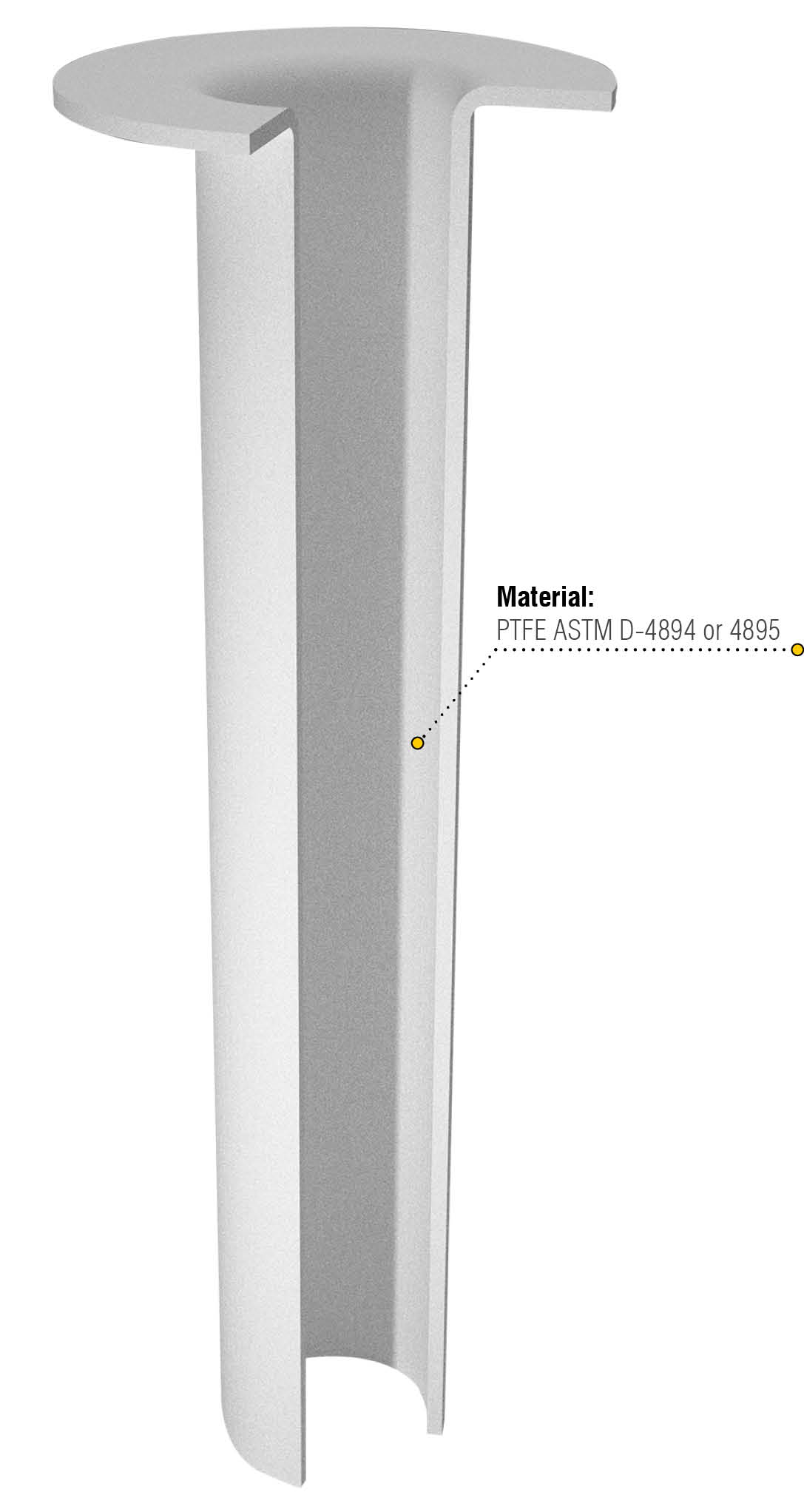

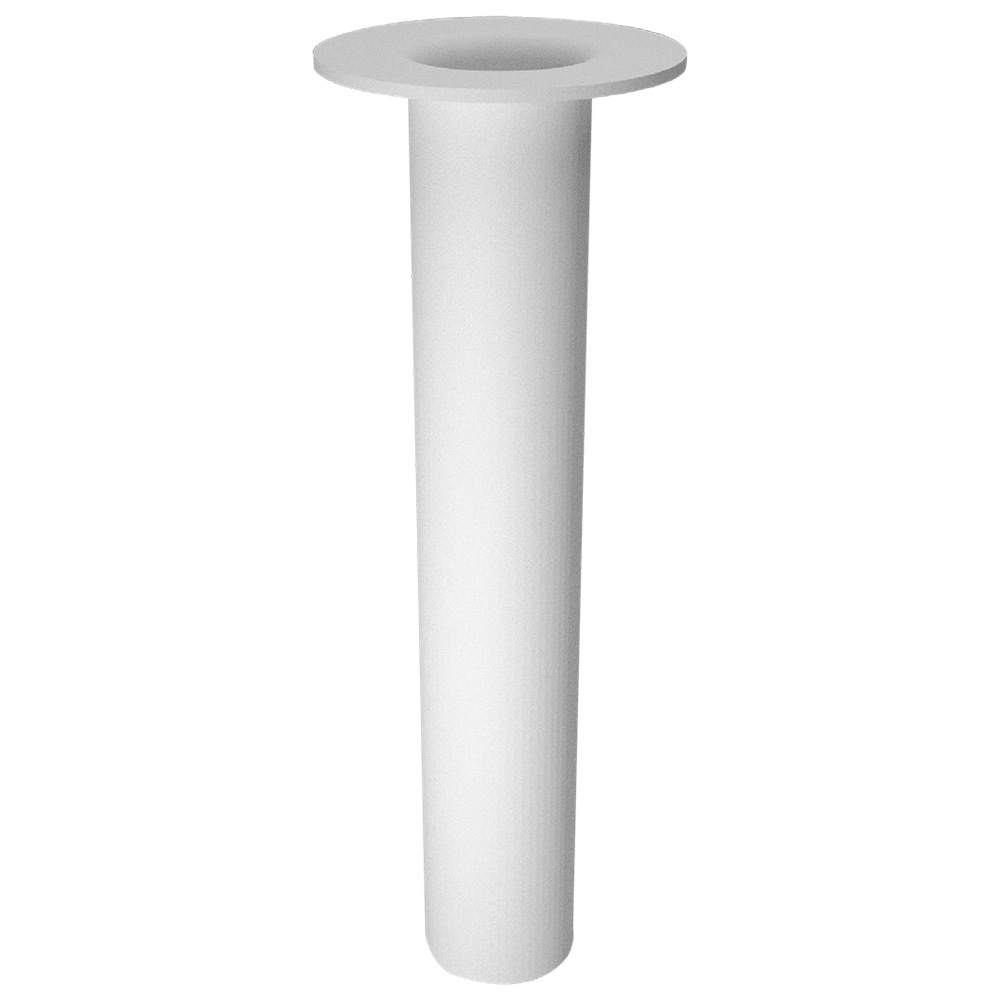

PTFE Conveyor


Available on request
Approvals and
Certifications
Quality and
Special Tests
Engineering
Services
Special
Supply
Stainless Steel
304L/316L
components
External
Finiture

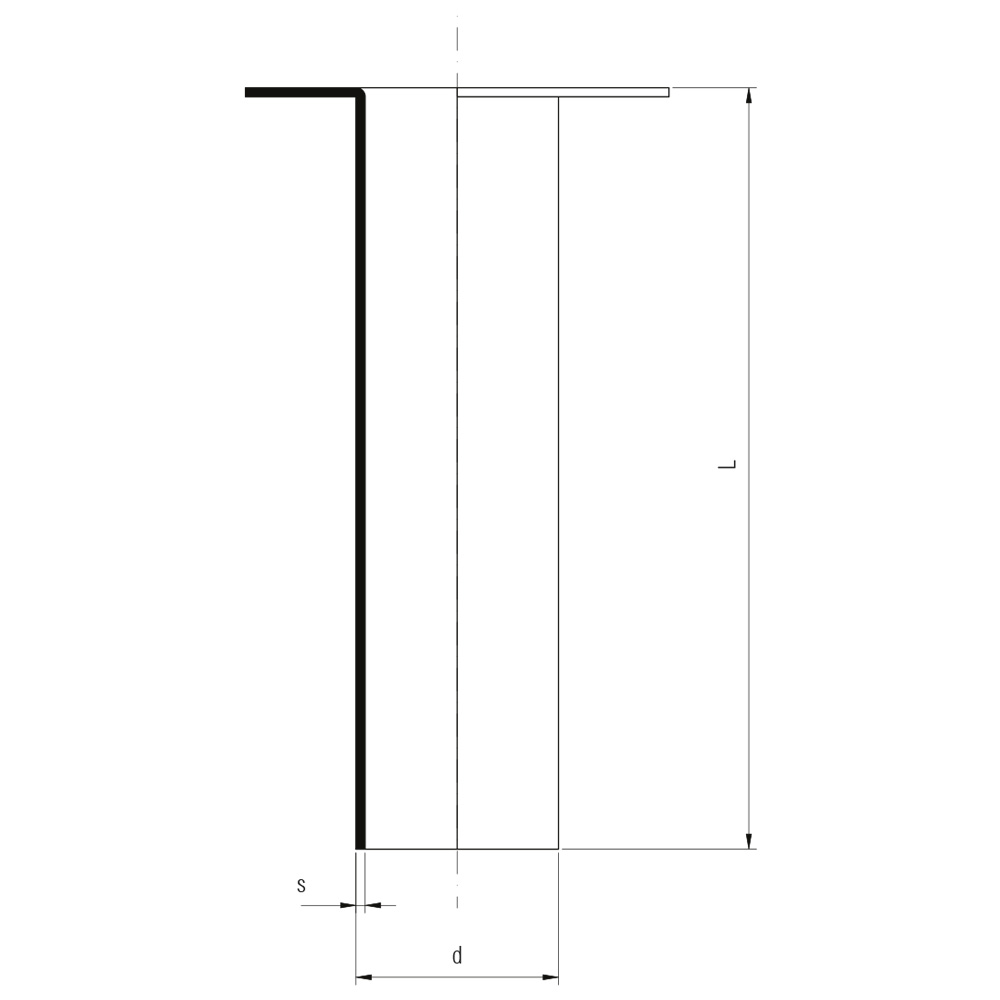

DN L max. mm d mm s ± 10% mm
25 3000 24,5 3,0
32 3000 29,0 3,5
40 3000 32,0 3,5
50 3000 41,0 4
65 3000 60,0 4,5
80 3000 66,0 5
100 3000 94,5 5,5
125 3000 117 5,5
150 3000 139 6
200 3000 182 6,5
250 3000 231 7
300 3000 288 7,0
350 3000 277 7
400 3000 319 7
Technical Specifications of the Difline Products
Pipe dimensions e
flanges according to DIN
Fittings dimensions
according to DIN
Operational
conditions
Power
Tightening
Finish
Packaging marking
Resistance table
chemical materials*
Technical specifications of Difline products
