Data Sheet: C3-108

Gaskets For Bs 4825 Clamp Fittings

Description

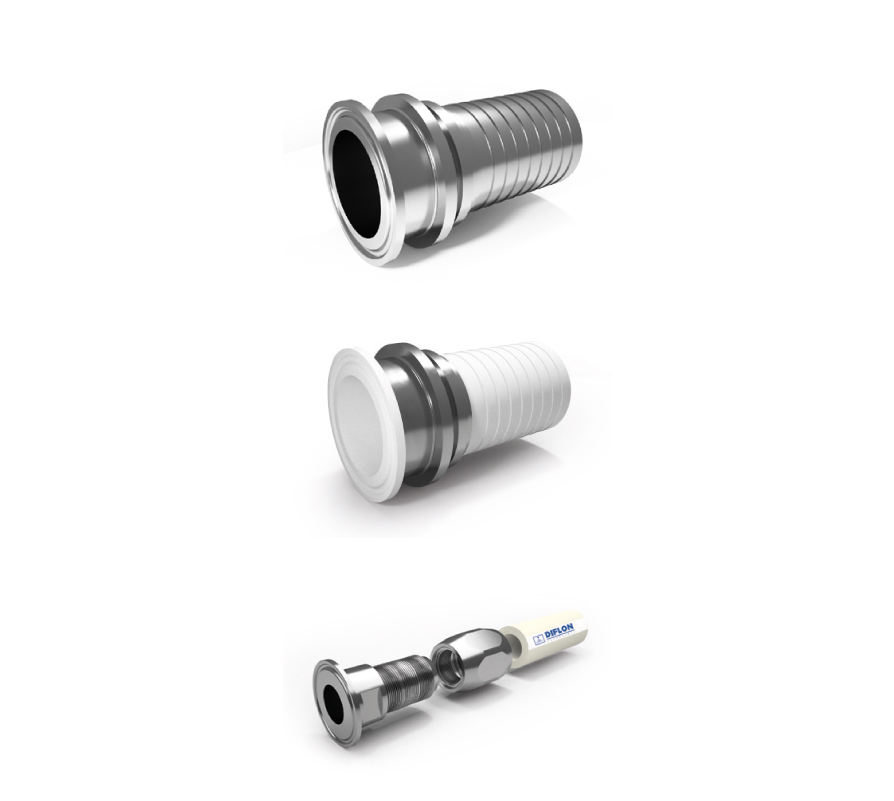

Application examples DIFLEXIn specific design Clamp BS 4825 gasket in DIFLEX
ApplicationsAcids, Strong alkali, Solvents, Catalyzers, Aromatics, Foods, Pharmaceuticals, Chemicals, Petrochemicals, etc.
• Operating temperature: -150° + 260° C
• Working pressure at room temperature: 50 bar

Application examples SILICONIn specific design Silicon (VMQ)
ApplicationsOils, Fats, Oxidations (oxygen and ozone even hot), Medical Products, Pharmaceuticals, Biologicals, Foods, etc.
we can provide special silicones for specific uses.
• Operating temperature: -140° +200° C
• Working pressure at room temperature: 10 bar

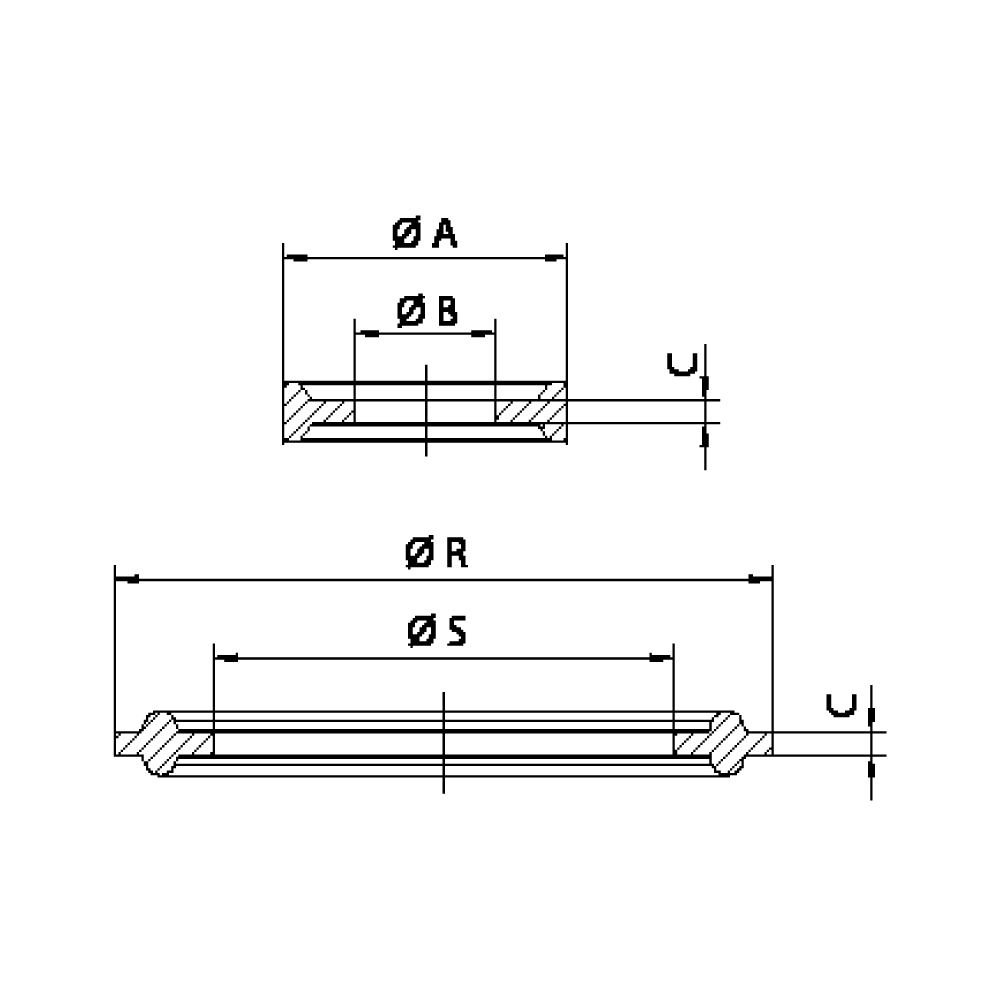

Gaskets dimensions

DN	ØA	ØB	C	ØR	ØS
15 - ½"	22	9,6	1,7	-	-
20 - ¾"	22	16	1,7	-	-
25 - 1"	-	-	1,7	50,5	22,1
32 - 1 ¼"	-	-	1,7	50,5	35,1
40 - 1 ½"	-	-	1,7	64	47,4
50 - 2"	-	-	1,7	77,5	60,5
65 - 2 ½"	-	-	1,7	91	73,2
80 - 3"	-	-	1,7	119	97,5
100 - 4"	-	-	1,7	167	146,9

FLEXILINE base COLORS standard
