    PTFE Lined Elbows 45°

DIFLINE COLORS

▶PTFE Lined Elbows 45°
Data Sheet: D2-33

PTFE Lined Elbows 45°

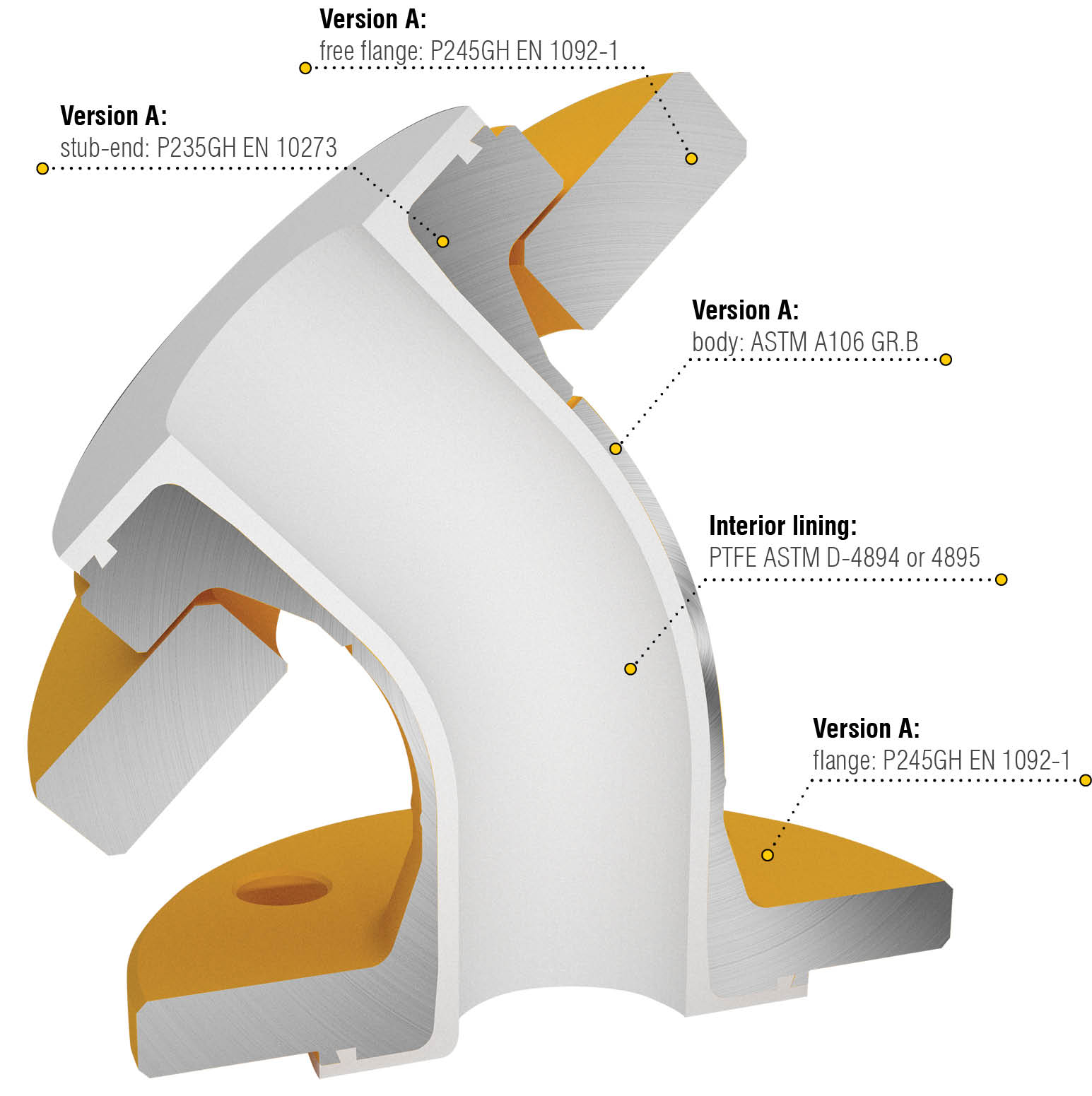

PTFE Lined Elbows 45° design DIN 2448/2874 - Certified - 2014/68/EU (PED)


Available on request
Approvals and
Certifications
Quality and
Special Tests
Engineering
Services
Special
Supply
Stainless Steel
304L/316L
components
External
Finiture

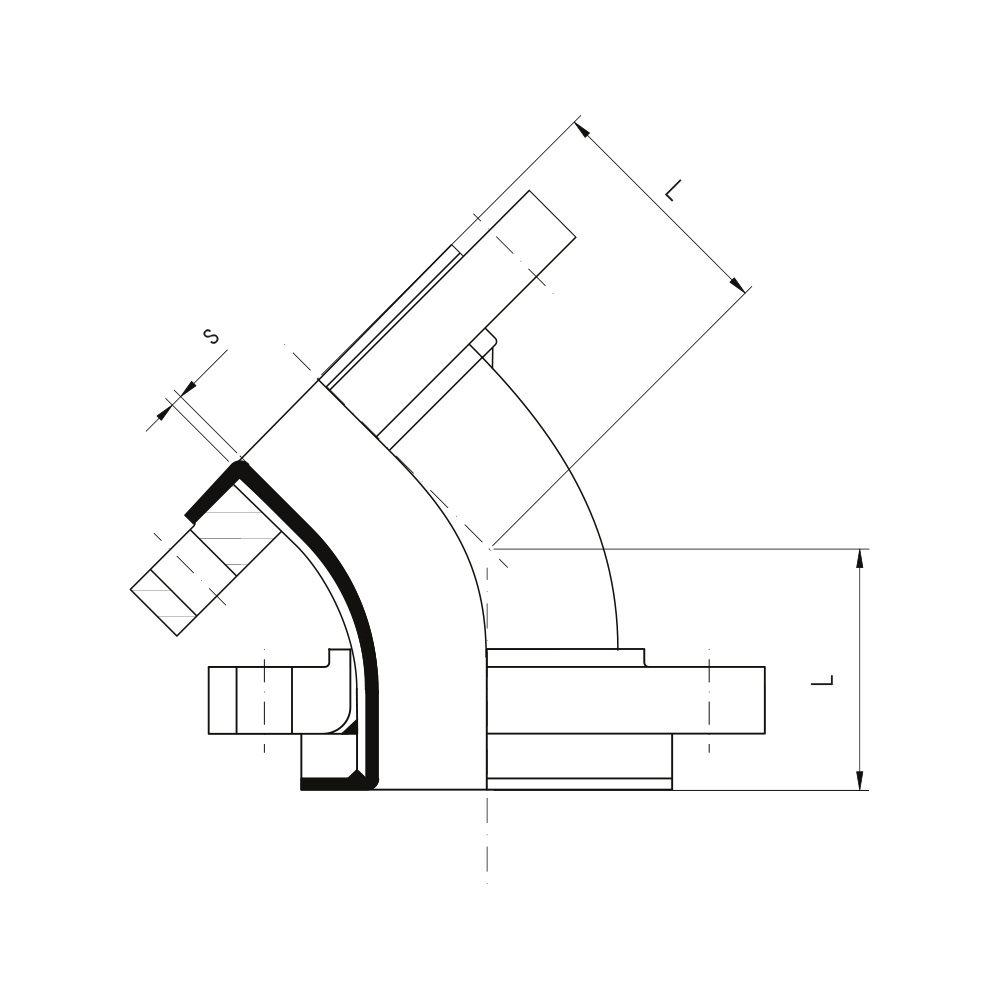

DN L mm s±10% mm Weight kg
15 45 3,0 1,6
20 65 3,0 2,1
25 70 3,0 2,8
32 80 3,5 4,0
40 90 3,5 4,7
50 80 4,0 5,9
65 85 4,5 7,4
80 100 5 9,4
100 115 5,5 12,1
125 135 5,5 16,2
150 150 6 21
200 190 6,5 33,1
250 225 7 48,5
300 260 7 66
350 290 7 87
400 325 7 117
450 305 7 148
500 390 7 186
Technical Specifications of the Difline Products
Pipe dimensions e
flanges according to DIN
Fittings dimensions
according to DIN
Operational
conditions
Power
Tightening
Finish
Packaging marking
Resistance table
chemical materials*
Technical specifications of Difline products
