    AISI 316L DW Type

FLEXILINE base COLORS standard

▶AISI 316L DW Type
Data Sheet: C2-93

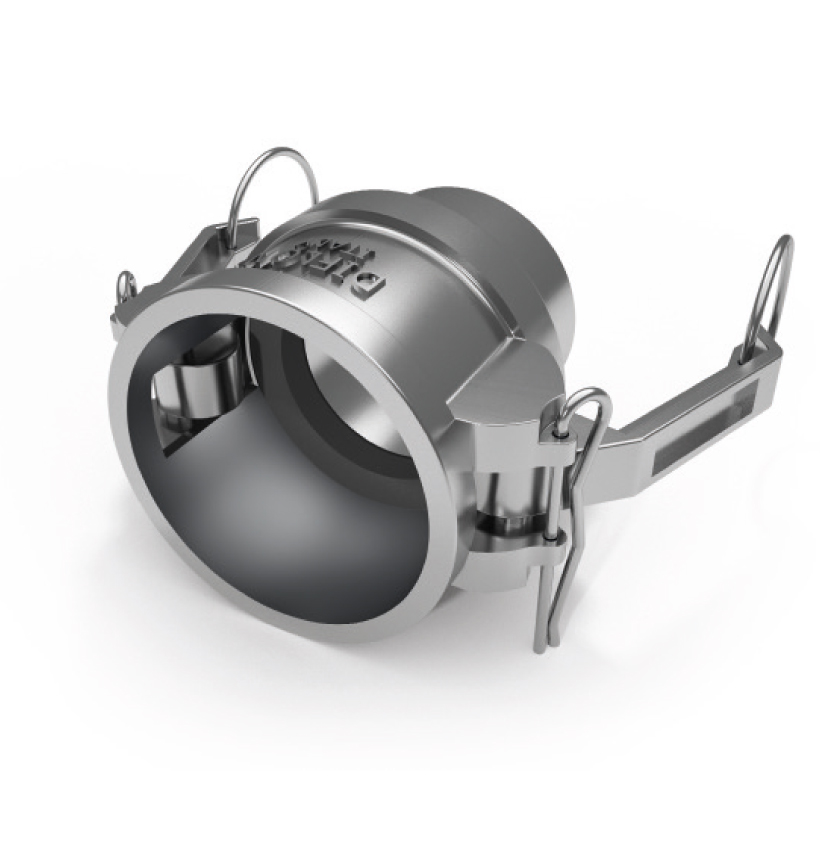

AISI 316L DW Type - EN 14420-7:2004 CAM & GROOVE - Diflon F20

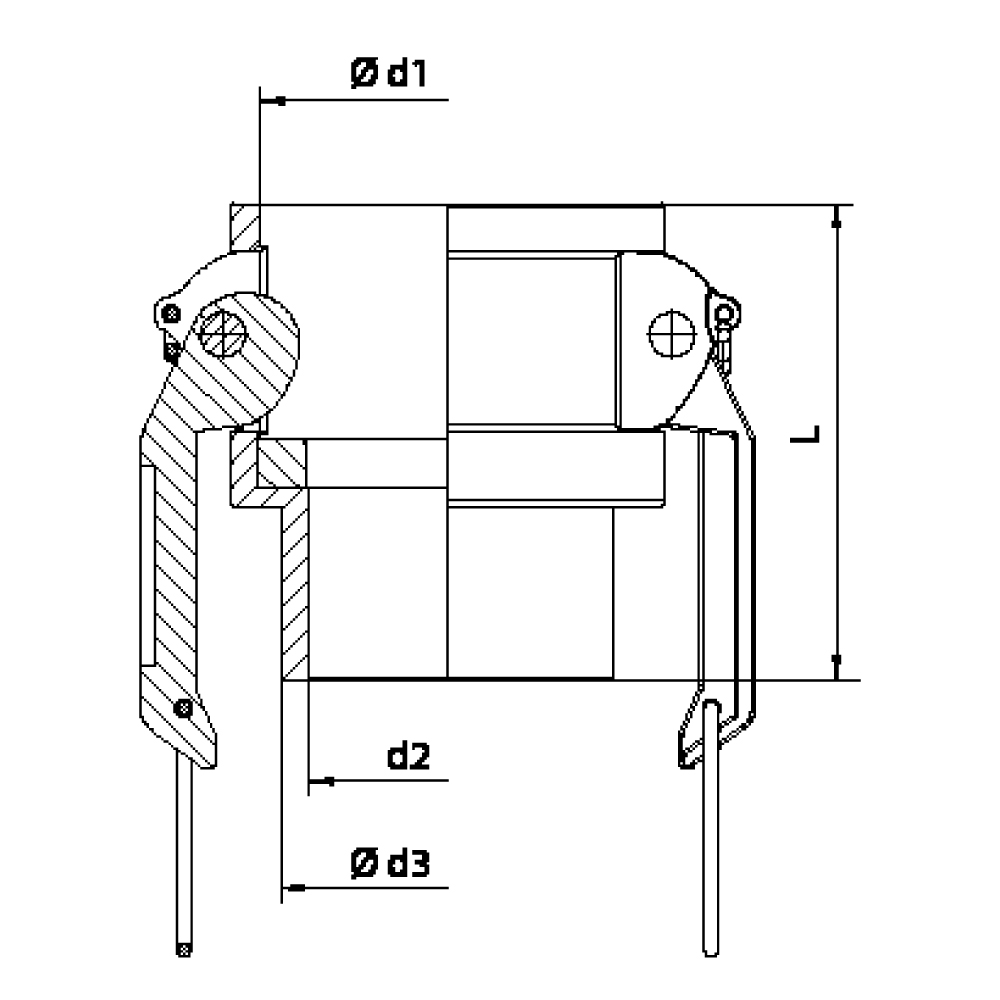

DN L Ø d1 Ø d2 Ø d3
15 - ½" 51 25,5 16 21
20 - ¾" 51 30 21 27
25 - 1" 62 37,5 26 33
32 - 1 ¼" 70 45,5 35 42
40 - 1 ½" 72 54 41 48
50 - 2" 77 64 52 60
65 - 2 ½" 85 76,5 62 73
80 - 3" 91 92 73 89
100 - 4" 95 121 102 114
