Ptfe Enveloped Gasket With Free Asbestos Insert - Type C For En 1092-01 Or Ansi Flange
Description
Application examples• flat gaskets for flanges |

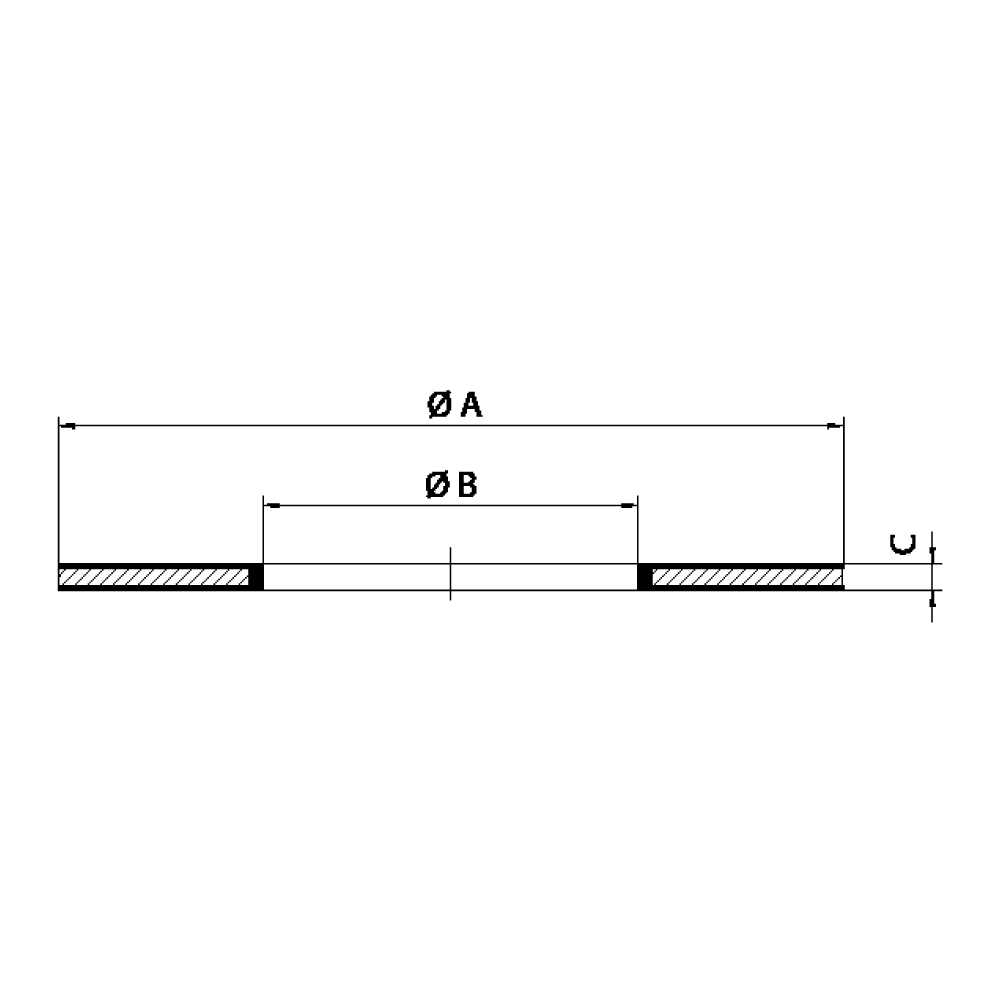

DN | Ø A DIN | Ø A ANSI | ØB | C |
---|---|---|---|---|
15 - ½" | 45 | 35 | 15 | 3 |
20 - ¾" | 58 | 43 | 20 | 3 |
25 - 1" | 68 | 51 | 25 | 3 |
32 - 1 ¼" | 78 | 64 | 32 | 3 |
40 - 1 ½" | 88 | 73 | 40 | 3 |
50 - 2" | 102 | 92 | 50 | 3 |
65 - 2 ½" | 122 | 105 | 65 | 3 |
80 - 3" | 138 | 127 | 80 | 3 |
100 - 4" | 158 | 158 | 100 | 3 |
