- Data Sheet: C2-59

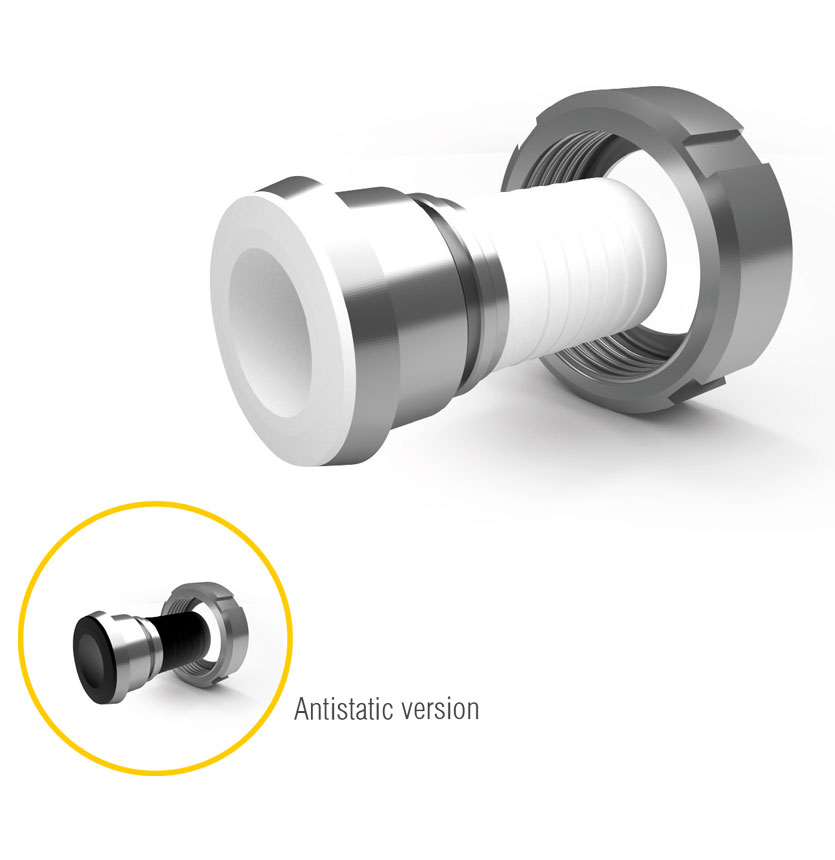

AISI 316L PFA Lined DIN 11851 Male Retainer Diflon B3
Fitting
Description
| B3 fitting is supplied without ferrule and it is used in chemicals and food industries to connect hoses quickly and safely to equipments and plants. Standard construction material is AISI 316L/PFA. The inner lining ensures resistance against nearly all chemicals, pH 0÷14, design temperature -40 °C ÷ 200 °C. DIN 405 threaded ferrule is according to the Standard DIN 11851 can be supplied in AISI 304L and AISI 316L. |

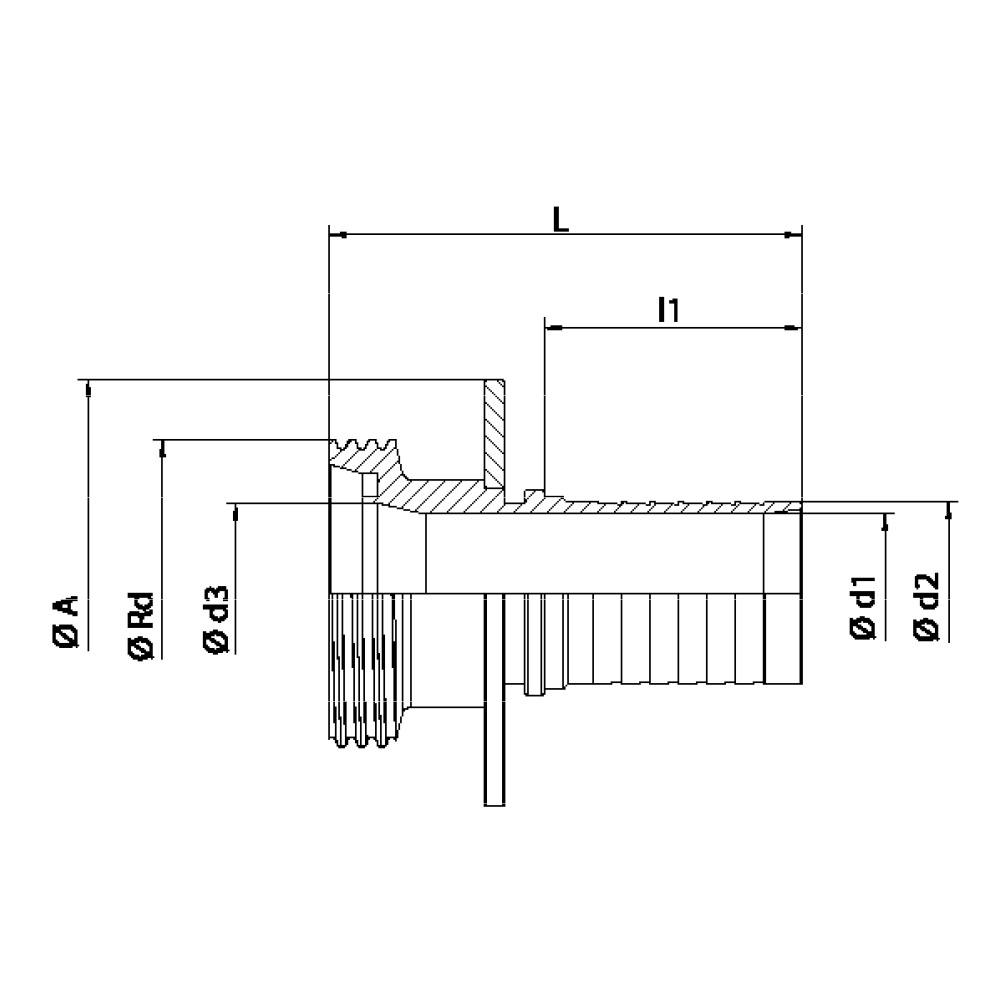

| DN | L | l1 | ØD | Ø d1 | Ø d2 | Ø d3 |
|---|---|---|---|---|---|---|
| 25 - 1" | 72 | 34 | 44 | 16 | 25,7 | 20 |
| 40 - 1 ½" | 90 | 51 | 56 | 27 | 38,5 | 33 |
| 50 - 2" | 100 | 62 | 68 | 39 | 51 | 45 |
| 80 - 3" | 120 | 81 | 100 | 60 | 75 | 75 |
