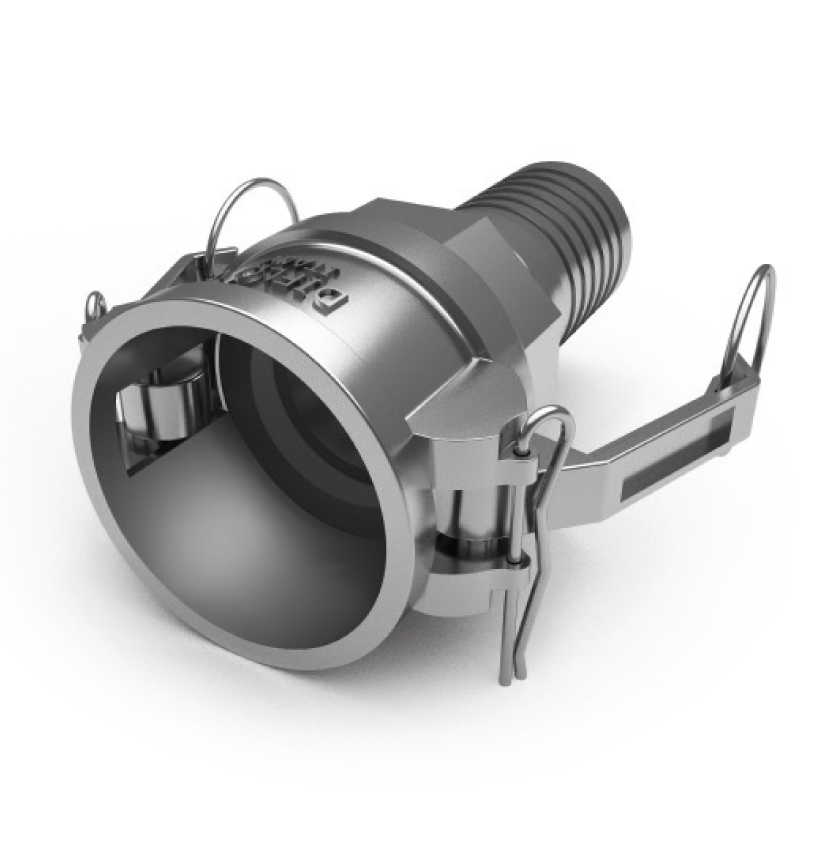

AISI 316L KF EN 14420-7:2004 CAM & GROOVE Retainer - Diflon F3

Fitting
Gasket

Fitting

Description

The fast fitting is used in chemical, pharmaceutical and food industries.

The CELERITY in connecting hoses, to equipments and plants is what distinguishes this type of fitting from the other ones.

The standard construction material is AISI 316L.

Gasket

Download PDF

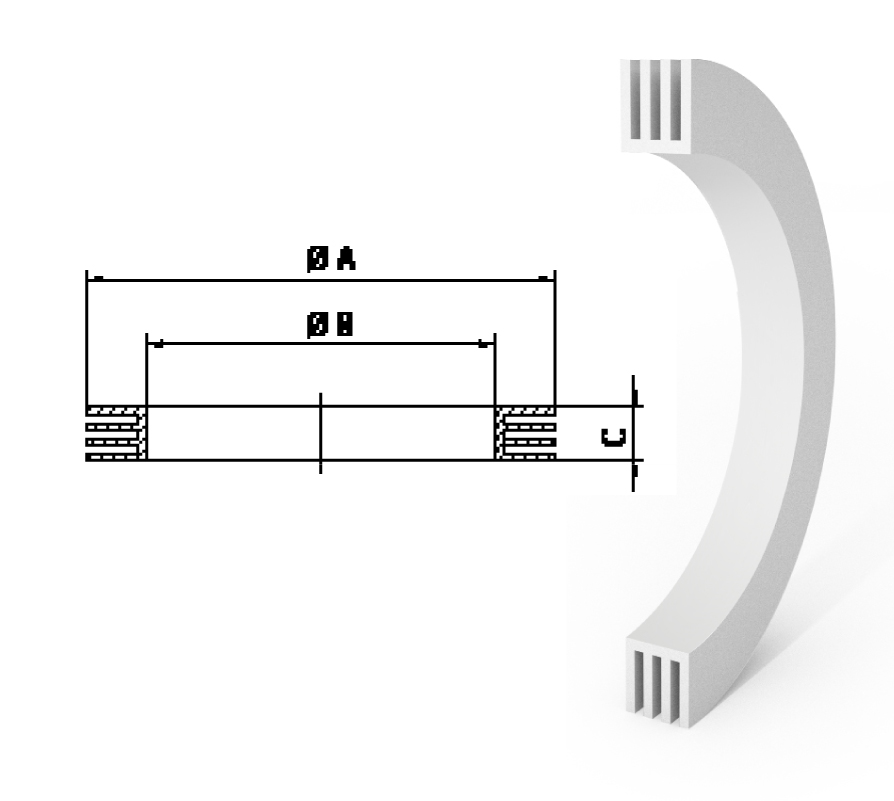

Recommended Gasket

DIFLEX CAM & GROOVE gasket, resistant to all acids and chemicals, pharmaceuticals and food products with temperatures from -170 °C to +270 °C and pressures up to 50 bar.

DN	ØA	ØB	C
15 - ½"	26	17	3,96
20 - ¾"	35	22	5,53
25 - 1"	40	27	6,35
32 - 1 ¼"	49	34	6,35
40 - 1 ½"	55	41	6,35
50 - 2"	66	51	6,35
65 - 2 ½"	79	60	6,35
80 - 3"	94	76	6,35
100 - 4"	123	102	6,35

Approvals and
Certifications

Quality and
Special Tests

Engineering
Services

Special
Supply

Stainless Steel
304L/316L
components

External
Finiture

DN	L	l1	ØD	Ø d1	Ø d2	Ø d3
15 - ½"	60	30	25,5	9	13	15
20 - ¾"	70	31	30	15	19,2	20
25 - 1"	80	34	37,5	21	25,7	26
32 - 1 ¼"	90	40	45,5	28	32,4	32
40 - 1 ½"	90	51	54	33	38,5	38
50 - 2"	95	62	64	45	51	45
65 - 2 ½"	115	68	76,5	58	64	58
80 - 3"	135	81	92	69	75	73
100 - 4"	140	92	121	96	101	101

FLEXILINE - Raccordo KF a portagomma (Disegno tecnico)

SPOSTO VARIANTE E LA MOSTRO SOTTO JAVASCRIPT EN
