PTFE Lined Spacers Type G

DIFLINE COLORS

▶PTFE Lined Spacers Type G

Data Sheet: D2-58

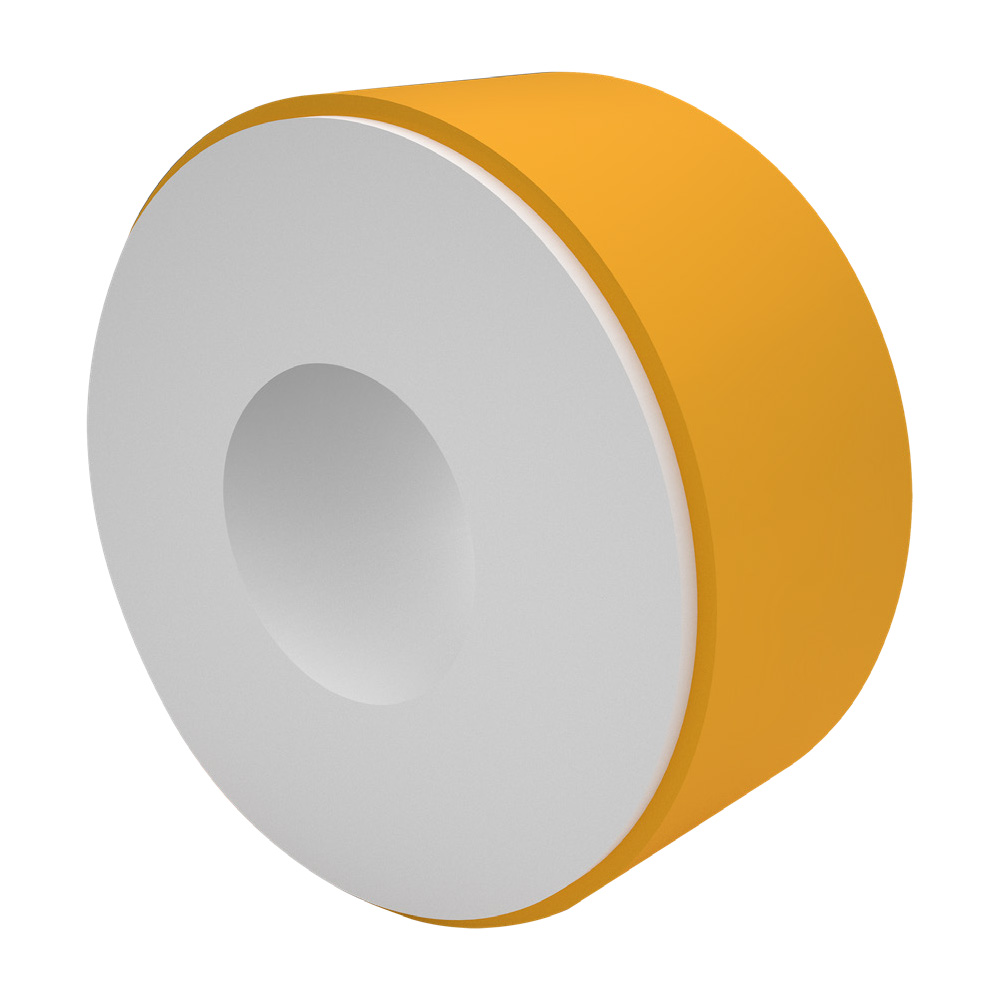

PTFE Lined Spacers Type G

Design DIN 2448/2874 - Certified - 2014/68/EU (PED)

Standard Supply

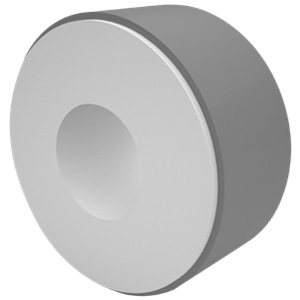

Variant

Standard Supply

Download PDF Catalog

Features

Design:

DIN 2848/2874

Range:

DN 15 - DN 600, PN 10

Metallic Part:

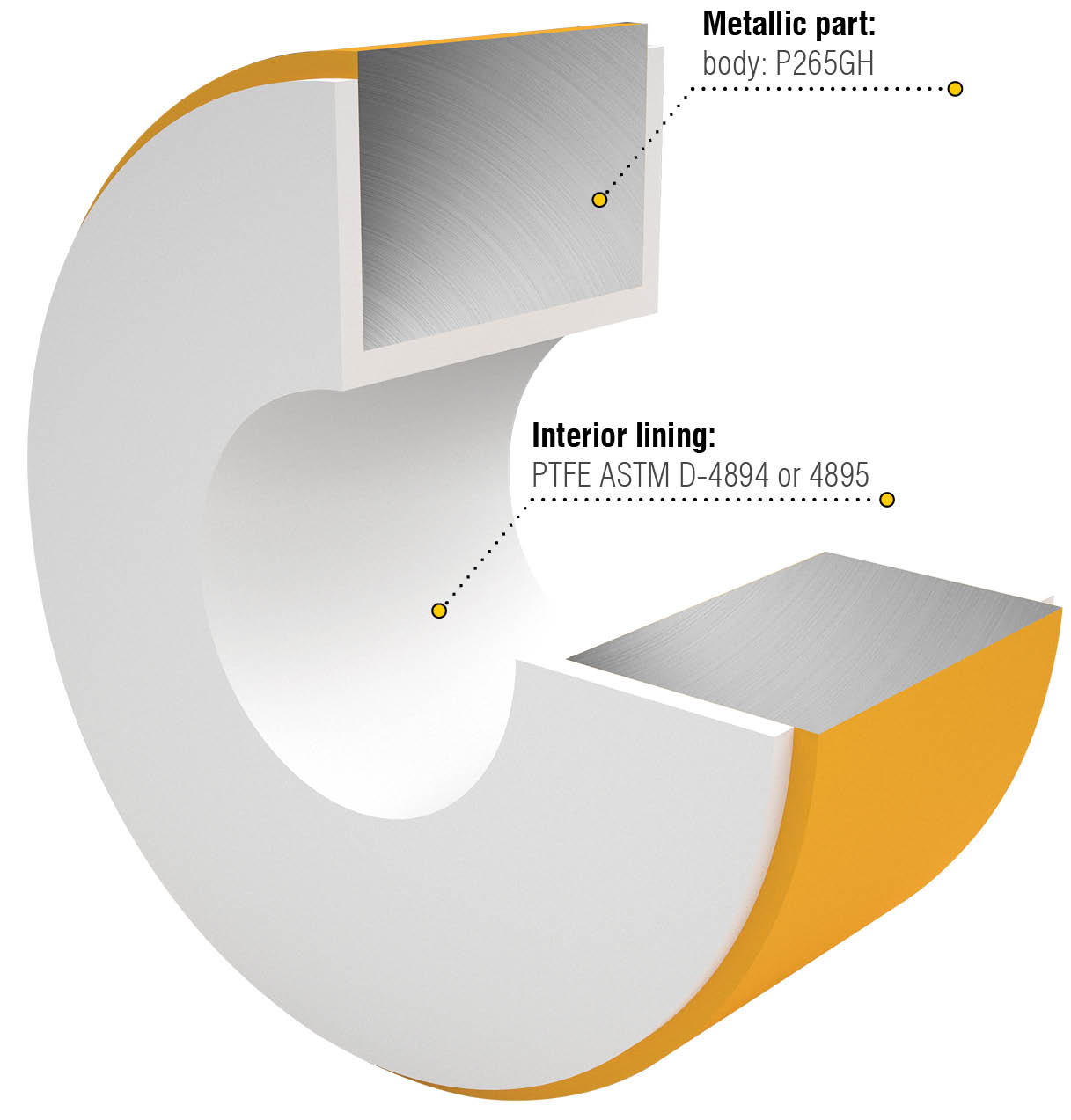

body: P265GH

Interior Lining:

PTFE

Standard finishing

gray epoxy-vinyl
zinc paint

Available on request

Approvals and Certifications

Quality and Special Tests

Approvals and
Certifications

Quality and
Special Tests

Engineering
Services

Special
Supply

Stainless Steel
304L/316L
components

External
Finiture

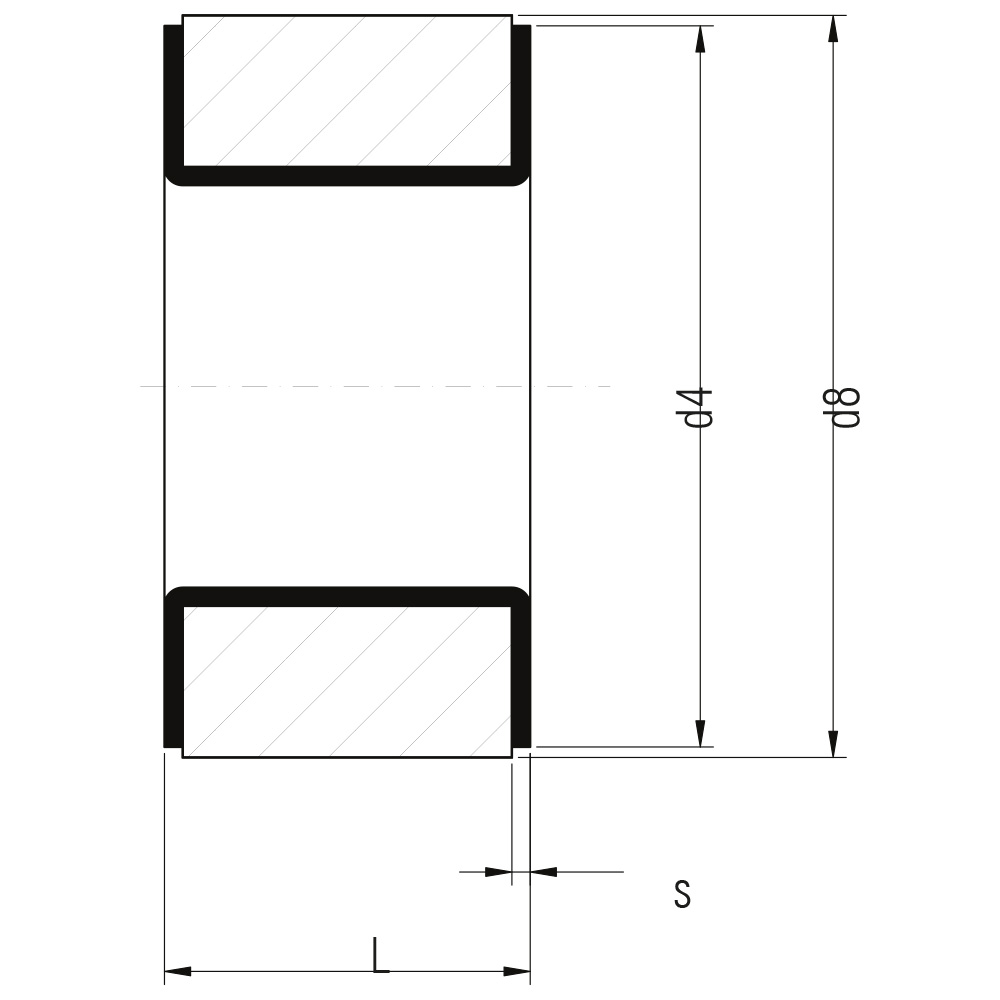

DN	L min. mm	L max. mm	s ± 10% mm	d4 mm	d8 mm	Weight Kg
15	30	60	3	45	50	0,9
20	30	60	3	58	60	1,2
25	30	60	3	68	70	1,8
32	30	60	3,5	78	82	2,1
40	30	60	3,5	88	92	2,6
50	30	60	4	102	107	3,7
65	30	70	4,5	122	127	4,7
80	30	70	5	138	142	5,3
100	30	80	5,5	158	162	9,5
125	30	80	5,5	188	192	11
150	30	80	6	212	218	14
200	30	80	6,5	268	273	18
250	30	80	7	320	328	29
300	30	90	7	370	378	30
350	30	90	7	430	438	50
400	30	90	7	482	488	60
450	30	100	7	532	540	71
500	30	100	7	585	594	75

Technical Specifications of the Difline Products

Pipe dimensions e
flanges according to DIN

Fittings dimensions
according to DIN

Operational
conditions

Power
Tightening

Finish
Packaging marking

Resistance table
chemical materials*

Technical specifications of Difline products

Pipes and Flanges dimensions according to DIN

Fittings dimensions according to DIN

Operative Conditions

Bolt Torque

Finiture, Marking, Packing

Table of Chemical Resistance of Materials*
