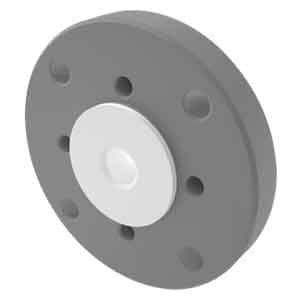

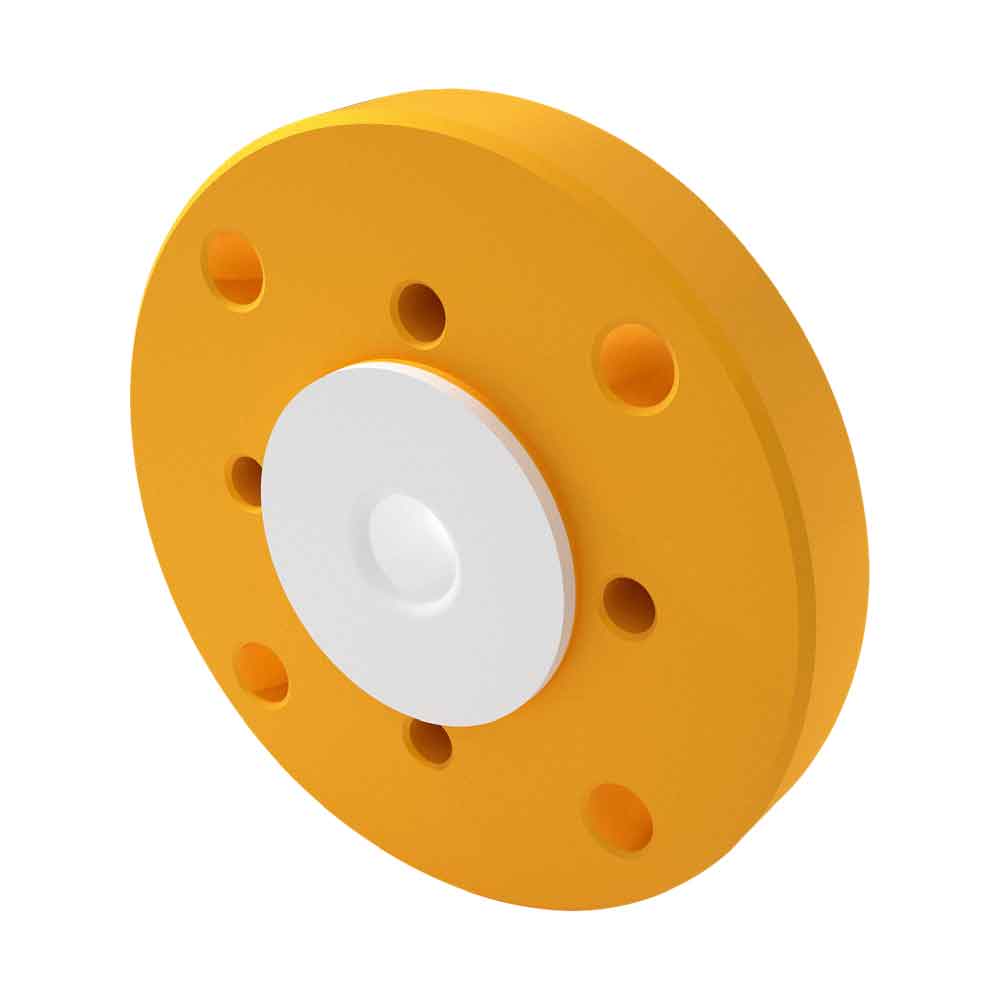

    PTFE - PFA Lined Reducing Flange

DIFLINE COLORS

▶PTFE - PFA Lined Reducing Flange
Data Sheet: A2-45

PTFE - PFA Lined Reducing Flange

Design ASME B16.5 Class 150


Available on request

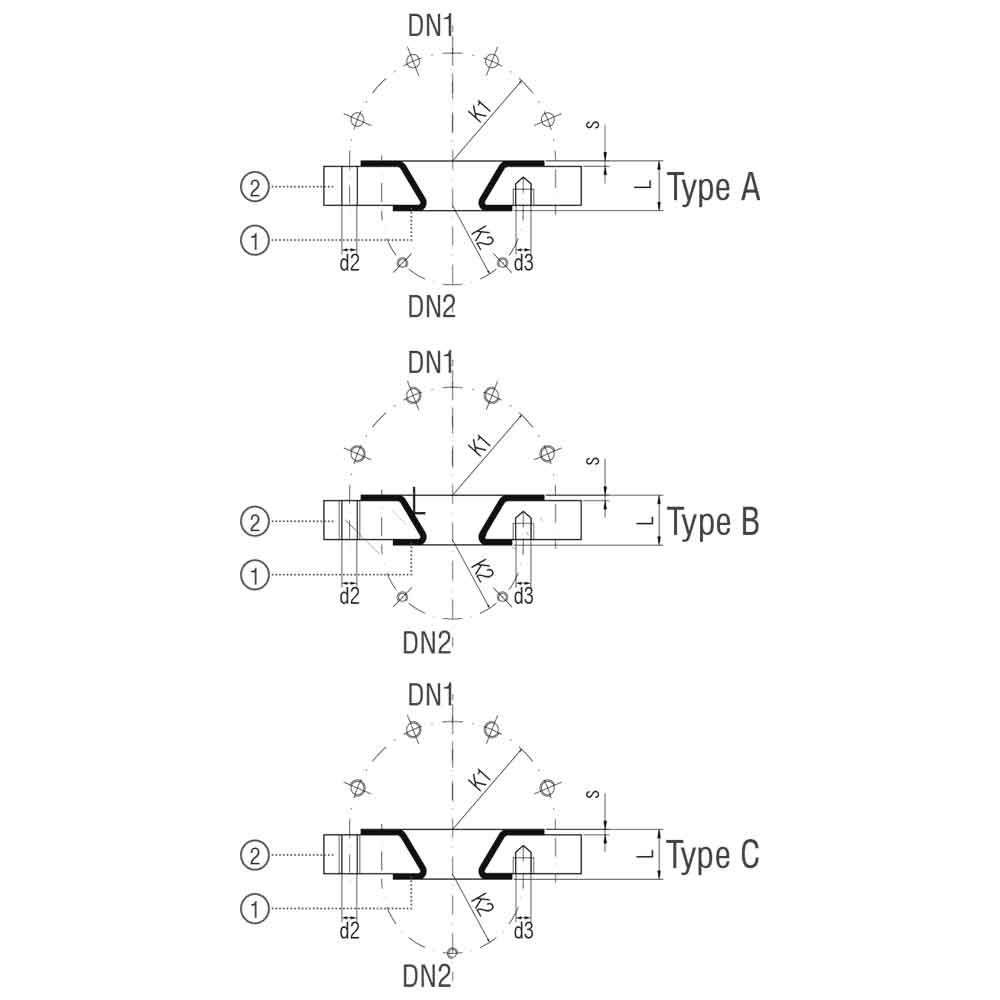

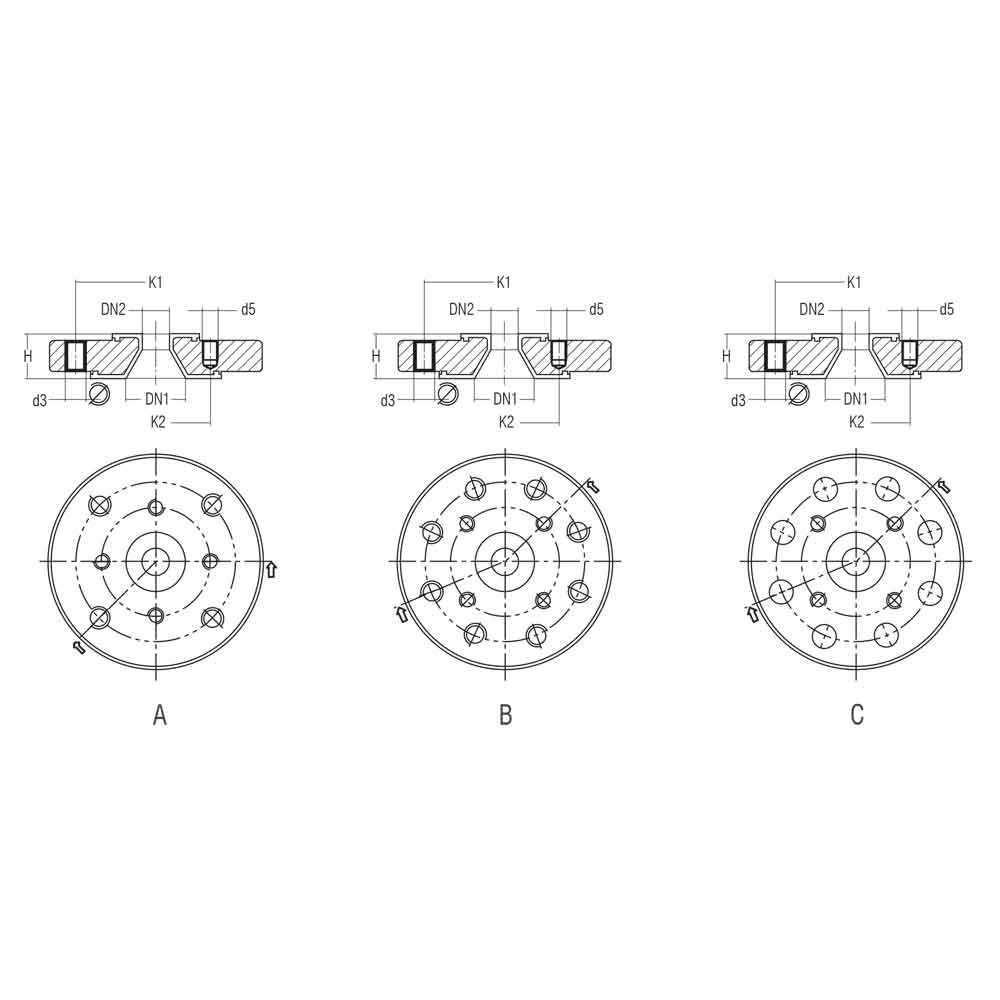

DN1 DN2 L mm s ± 10% mm Type Weight kg
1" 1/2"
3/4"		 35 3,5 C 2,1
2,4
1 1/4" 3/4"
1"		 35 3,5 C 3,9
3,5
1 1/2" 3/4"
1"
1 1/4"		 35 4,0 C 4,0
4,1
3,9
2" 3/4"
1"
1 1/2"		 35 4,0 B
B
C		 5,0
4,9
5,1
2 1/2" 1"
1 1/2"
2"		 35 4,0 A
B
C

5,9
5,6
5,6
3" 1"
1 1/2"
2"
2 1/2"		 35 4/3,5
4
4
4		 A
B
C
C		 6,8
6,6
6,4
6,2
4" 1"
1 1/2"
2"
3"		 45 4,5/3,5
4,5/4
4,5/4		 A

A
B		 12
12
12
10
5" 1"
1 1/2"
2"
3"
4"		 45 4,5/3,5
4,5/4
4,5/4
4,5/4
4,5/4		 A
A
A
B
C		 16
15
14
13
13
6" 1"
1 1/2"
2"
3"
4"
5"		 45 5/3,5
5/4
5/4
5/4
5/4,5
5/4,5		 A
A
A
A
B
C		 22
20
19
18
17
16
8" 1"
2"
3"
4"
6"		 45 5/3,5
5/3,5
5/4
5/4,5
5		 A 29
28
27
25
23
10" 2"
3"
4"
6"
8"		 45 6/4
6/4
6/4
5
5		 A
A
A
A
B		 28
24
22
19
16
12" 2"
3"
4"
6"
8"
10"		 50 6/4
6/4
6/4
6/4
6/4
5,5		 A
A
A
A
A
B		 44
38
36
31
28
24
14" 2"
3"
4"
6"
8"
10"
12"		 50 6/4
6/4
6/4
6/4
6/4
6
6		 A
A
A
A
A
A
C		 56
50
47
42
38
35
33
16" 3"
4"
6"
8"
10"
12"
14"		 50 6/4
6/4
6/4
6/4
6/4
6
6		 A
A
A
A
A
A
B		 71
68
62
60
55
49
40
18" 4"
6"
8"
10"
12"
14"
16"		 50 6/4
6/4
6/4
6/4
6/4
6/4
6		 A
A
A
A
A
B
C		 77
72
70
66
58
49
44
20" 4"
6"
8"
10"
12"
14"
16"		 50 6/4 A
A
A
A
A
A
B		 93
87
86
85
77
70
62
24" 6"
8"
10"
12"
14"
16"
18"
20"		 50 6/4 A
A
A
A
A
A
A
B		 139
131
128
121
105
93
84
78
