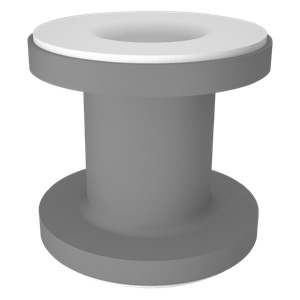

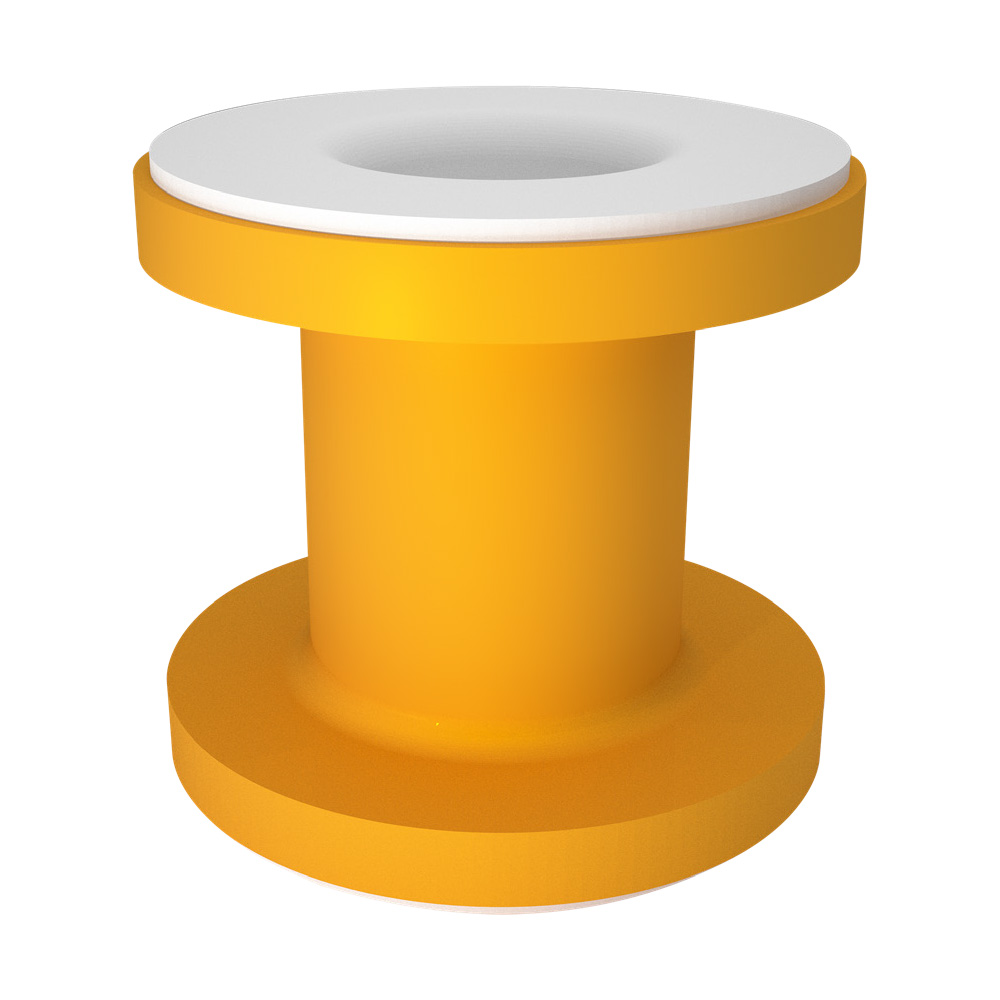

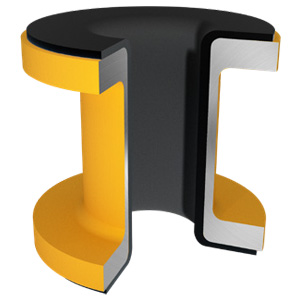

    PTFE Lined Spacers Type H

DIFLINE COLORS

PTFE Lined Spacers Type H
Data Sheet: D2-60

PTFE Lined Spacers Type H

Design DIN 2448/2874 - Certified - 2014/68/EU (PED)


Available on request
Approvals and
Certifications
Quality and
Special Tests
Engineering
Services
Special
Supply

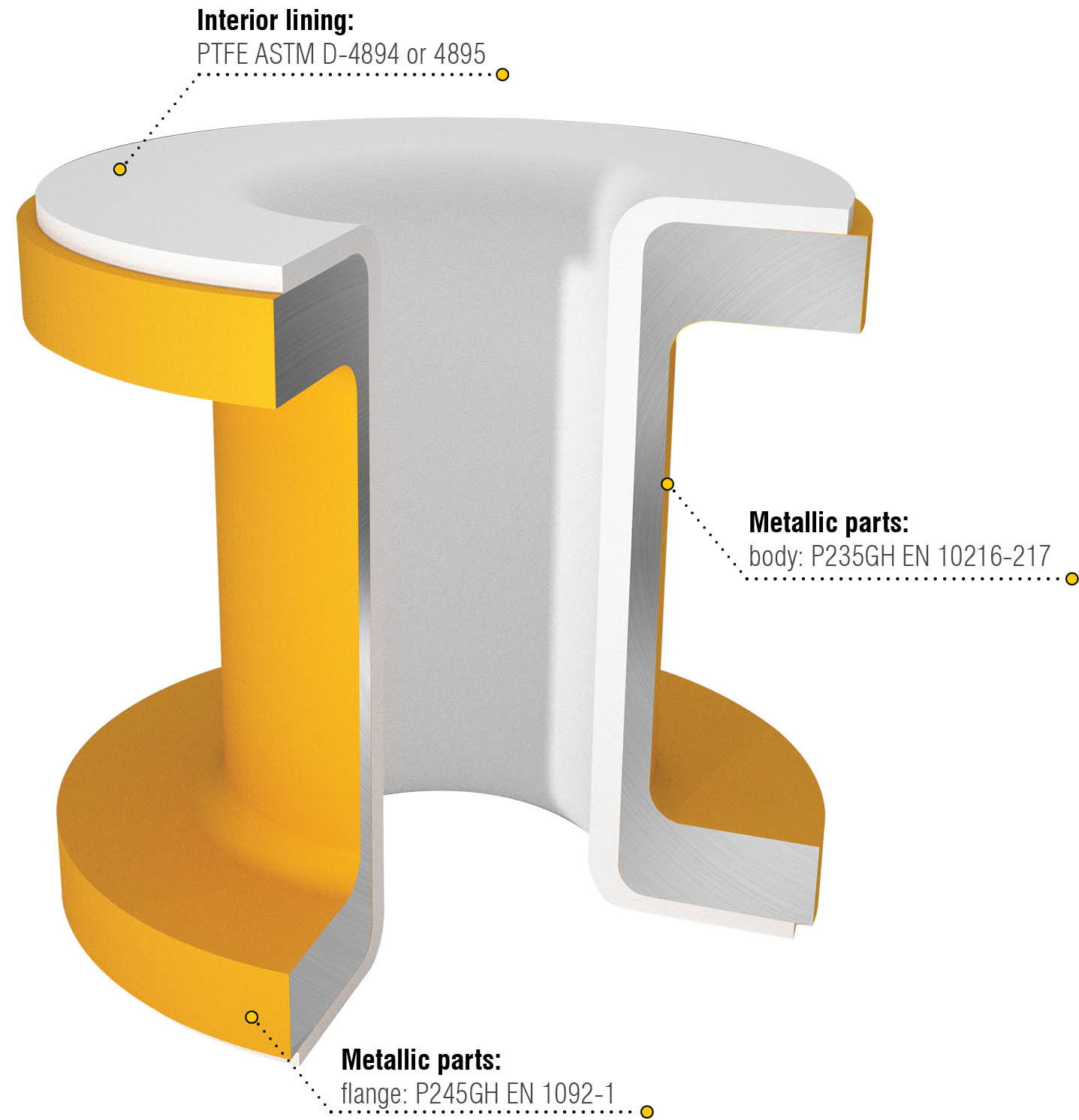

Stainless Steel
304L/316L
components
External
Finiture

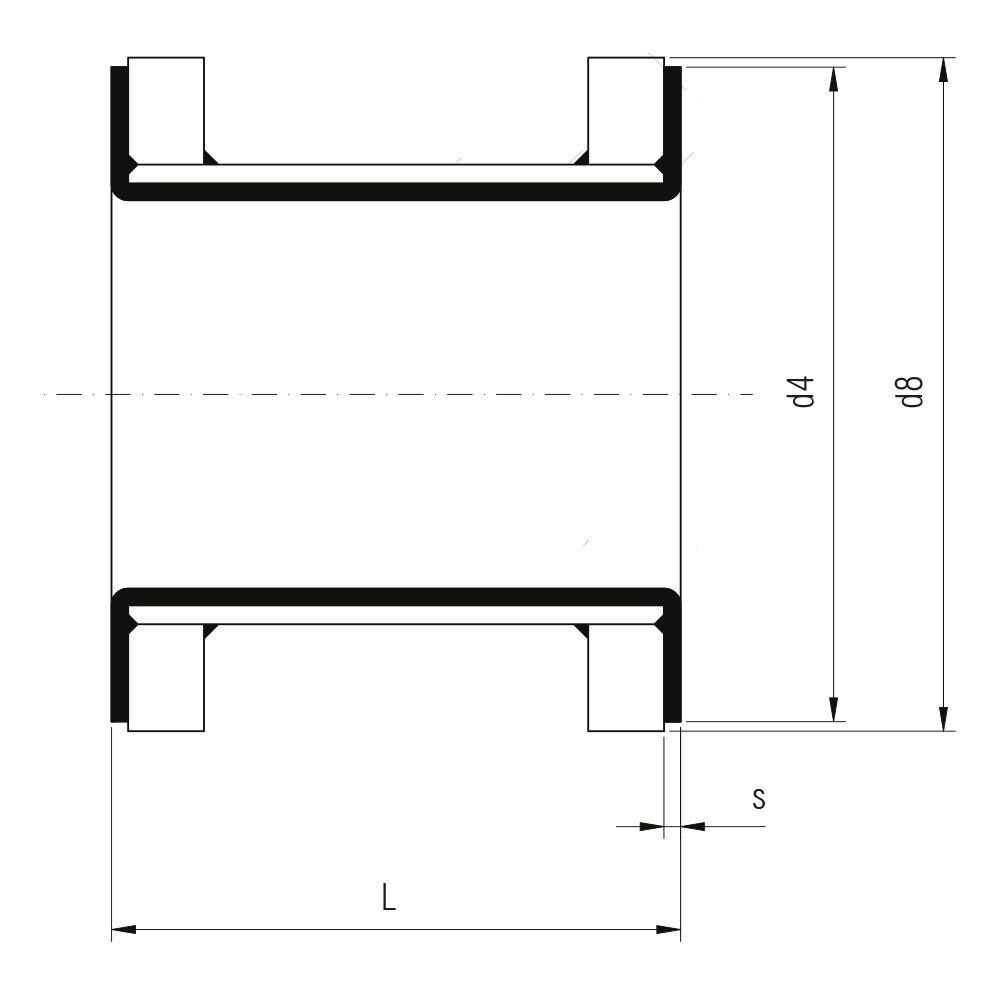

DN L min. mm L max. mm s d4 mm d8 mm Weight Pipe Kg/m Weight 2 Kg
15 60 100 3 45 50 1,2 0,3
20 60 100 3 58 60 1,6 0,4
25 60 100 3 68 70 2,5 0,5
32 60 100 3,5 78 82 3,4 0,7
40 60 100 3,5 88 92 4,5 0,9
50 60 100 4 102 107 5,8 1,3
65 70 120 4,5 122 127 7,1 1,6
80 70 120 5 138 142 10 2,3
100 80 120 5,5 158 162 14 2,7
125 80 120 5,5 188 192 14,5 4
150 80 150 6 212 218 23,5 4,5
200 80 150 6,5 268 273 39 6
250 80 150 7 320 328 55,5 8,5
300 90 200 7 370 378 74 10
350 90 200 7 430 438 85 13
400 90 200 7 482 488 102 16,5
450 100 200 7 532 540 130 20
500 100 250 7 585 594 155 23
Technical Specifications of the Difline Products
Pipe dimensions e
flanges according to DIN
Fittings dimensions
according to DIN
Operational
conditions
Power
Tightening
Finish
Packaging marking
Resistance table
chemical materials*
