Data Sheet: C1-42

Tufood FAT

Tufood FAT

Tufood FAT

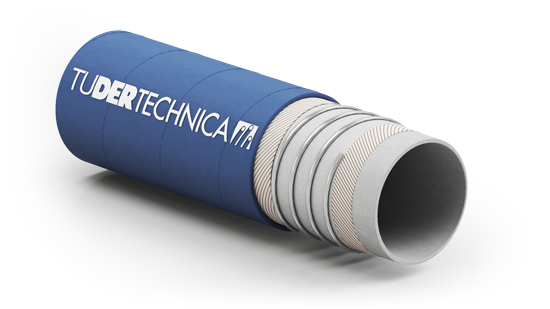

Suction and delivery hose suitable for fatty and non-fatty food products.

Description

Tube
NBR, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN- Ministry of Health and Welfare Notice No.370,1959 and No.201,2006, 3A Sanitary Standard Class II

Reinforcements
synthetic plies, galvanized wire helices

Cover
smooth, blue, cloth finish. Abrasion, ageing, ozone and oil resistant

Sterilization
refer to guidelines for cleaning and sanitizing on Tudertechnica website

Mark
TUFOOD® FAT

Technical Charateristics
Temperature range :: -25°C / +80°C ( -13°F / +176°F )
Norm: ISO 1307 for dimensional tolerances

Inside diameter		Theoretical outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
19	0,75	31	1,22	0,9	13	10	150	30	450	0,74	0,50	60	2,36
25	1,00	37	1,46	0,9	13	10	150	30	450	0,91	0,61	85	3,35
32	1,25	44	1,73	0,9	13	10	150	30	450	1,12	0,75	115	4,53
38	1,50	51	2,00	0,9	13	10	150	30	450	1,40	0,94	150	5,91
51	2,00	64	2,52	0,9	13	10	150	30	450	1,80	1,21	210	8,27
63,5	2,50	78,5	3,09	0,9	13	10	150	30	450	2,70	1,81	265	10,43
76	3,00	91	3,58	0,9	13	10	150	30	450	3,17	2,12	320	12,60
102	4,00	118	4,65	0,9	13	10	150	30	450	4,42	2,96	430	16,93

Data refer to ambient temperature (20°C). Other diameters, wall thickness, cover colours and pressure only on specific request.
