• Flexiline - Tubi tipo alimentare Copertina

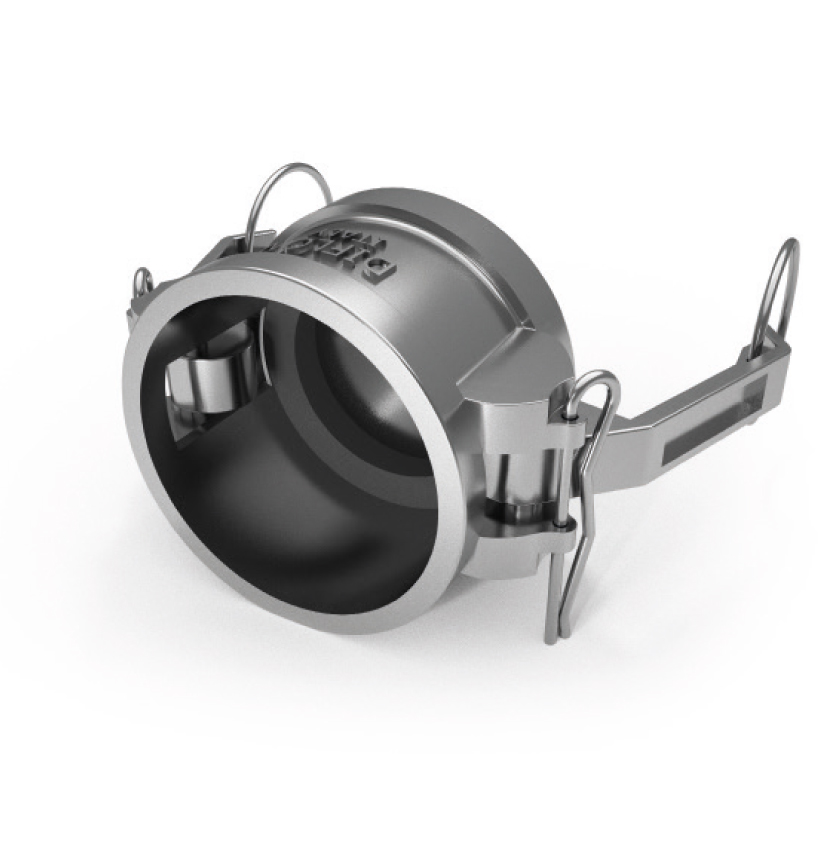

    AISI 316L DC Type

FLEXILINE base COLORS standard

▶AISI 316L DC Type
Data Sheet: C2-94

AISI 316L DC Type - EN 14420-7:2004 CAM & GROOVE - Diflon F21

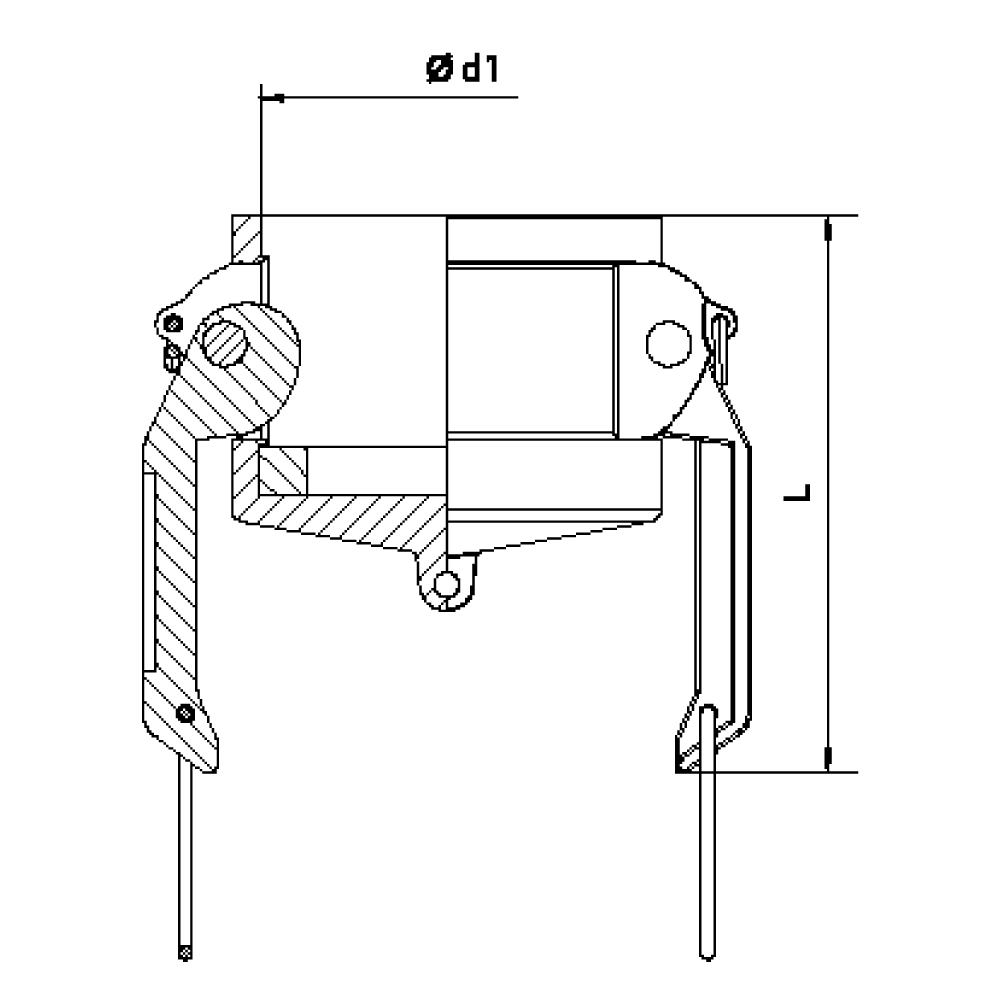

DN L Ø d1
15 - ½" 51 25,5
20 - ¾" 51 30
25 - 1" 60 37,5
32 - 1 ¼" 95 45,5
40 - 1 ½" 95 54
50 - 2" 98 64
65 - 2 ½" 100 76,5
80 - 3" 112 92
100 - 4" 115 121


SPOSTO VARIANTE E LA MOSTRO SOTTO JAVASCRIPT EN
