    PTFE Lined Spacers Type H

DIFLINE COLORS

▶PTFE Lined Spacers Type H
Data Sheet: A2-61

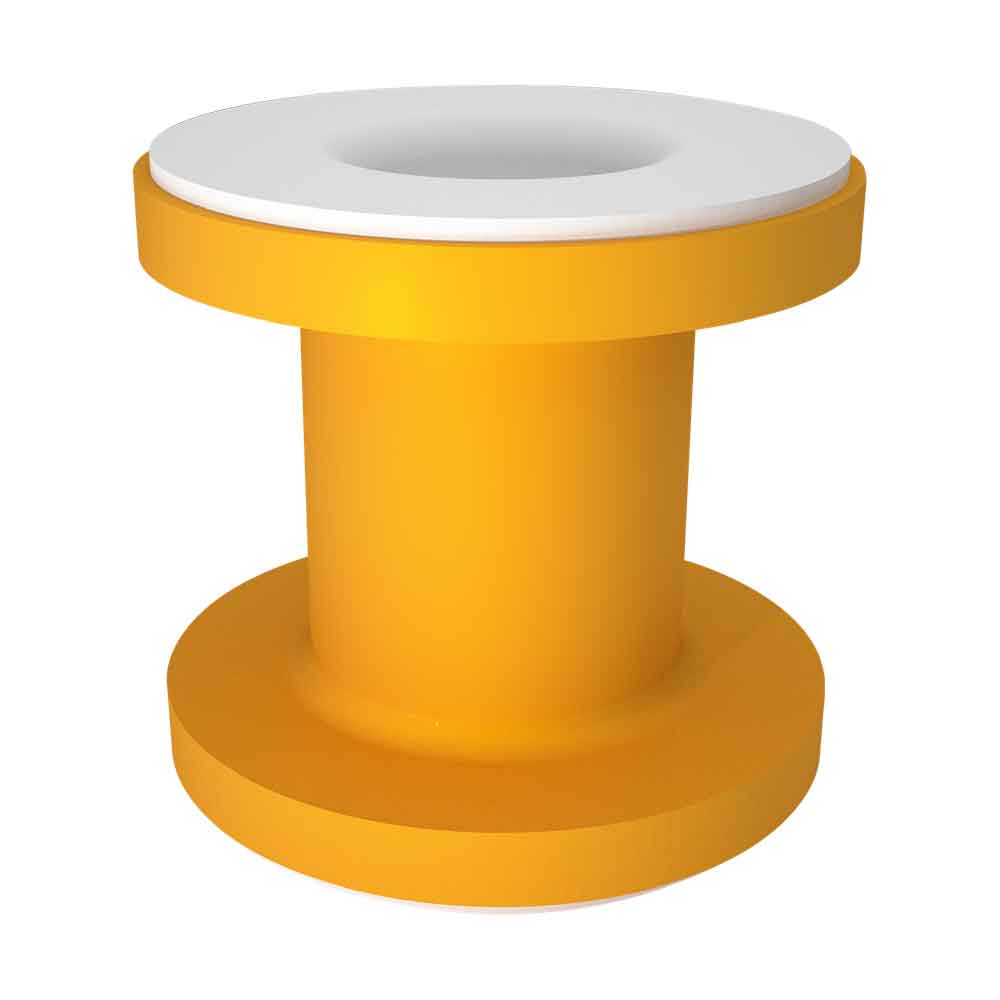

PTFE Lined Spacers Type H

Design ASME B16.5 Class 150


Available on request
Approvals and
Certifications
Quality and
Special Tests
Engineering
Services
Special
Supply
Stainless Steel
304L/316L
components
External
Finiture

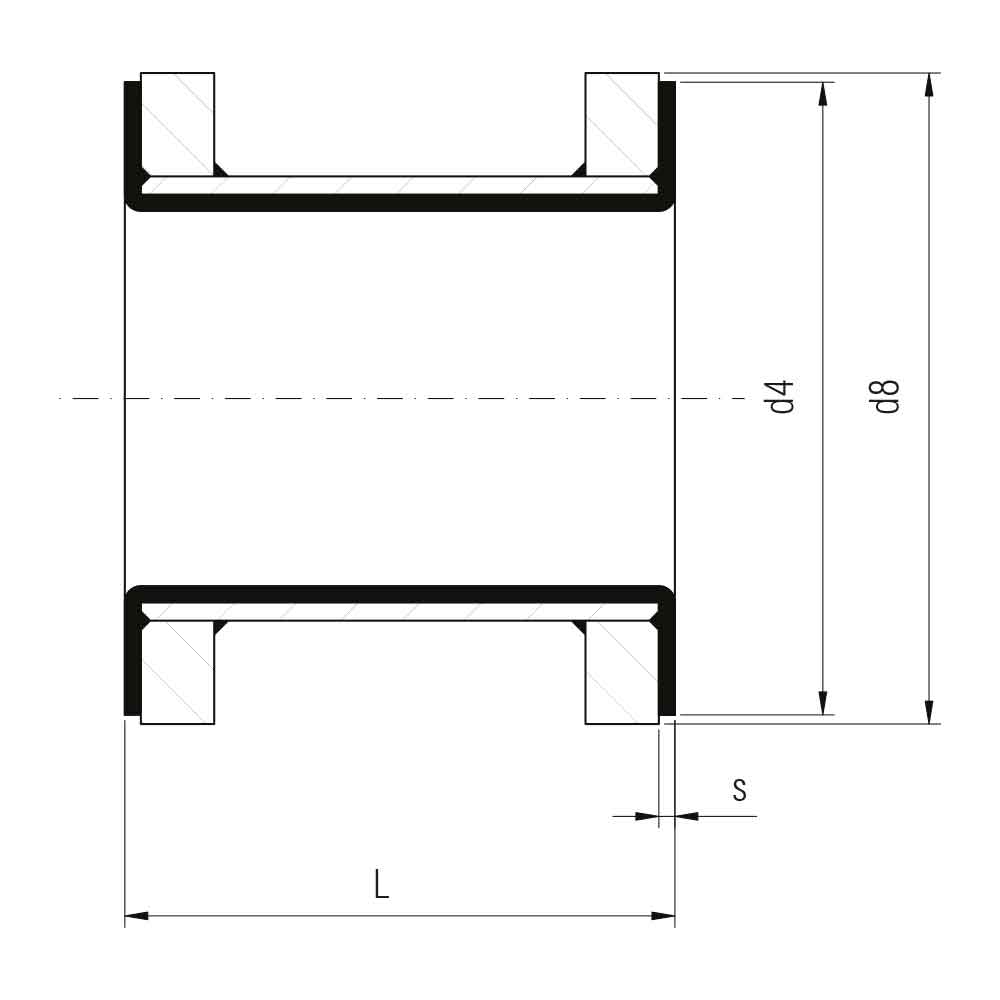

DN L min. max L max. mm s d4 mm d8 mm Weight Pipe Weight Stub-end
1/2" 60 100 3 35 44 1,2 0,3
3/4" 60 100 3 43 53 1,6 0,4
1" 60 100 3 51 63 2,5 0,5
1 1/4" 60 100 3,5 64 72 3,4 0,7
1 1/2" 60 100 3,5 73 82 4,5 0,9
2" 60 100 4 92 100 5,8 1,3
2 1/2" 70 120 4,5 105 120 7,1 1,6
3" 70 120 5 127 133 10 2,3
4" 80 120 5,5 158 170 14 2,7
5" 80 120 5,5 186 193 17,5 4
6" 80 150 6 216 218 23,5 4,5
8" 80 150 6,5 270 276 39 6
10" 80 150 7 324 336 55,5 8,5
12" 90 200 7 381 406 74 10
14" 90 200 7 412 447 85 13
16" 90 200 7 470 510 102 16,5
18" 100 200 7 534 545 130 20
20" 100 250 - 585 602 155 23
24" 120 250 - 692 714 204 31
