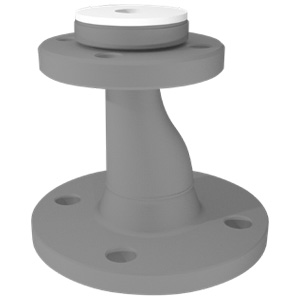

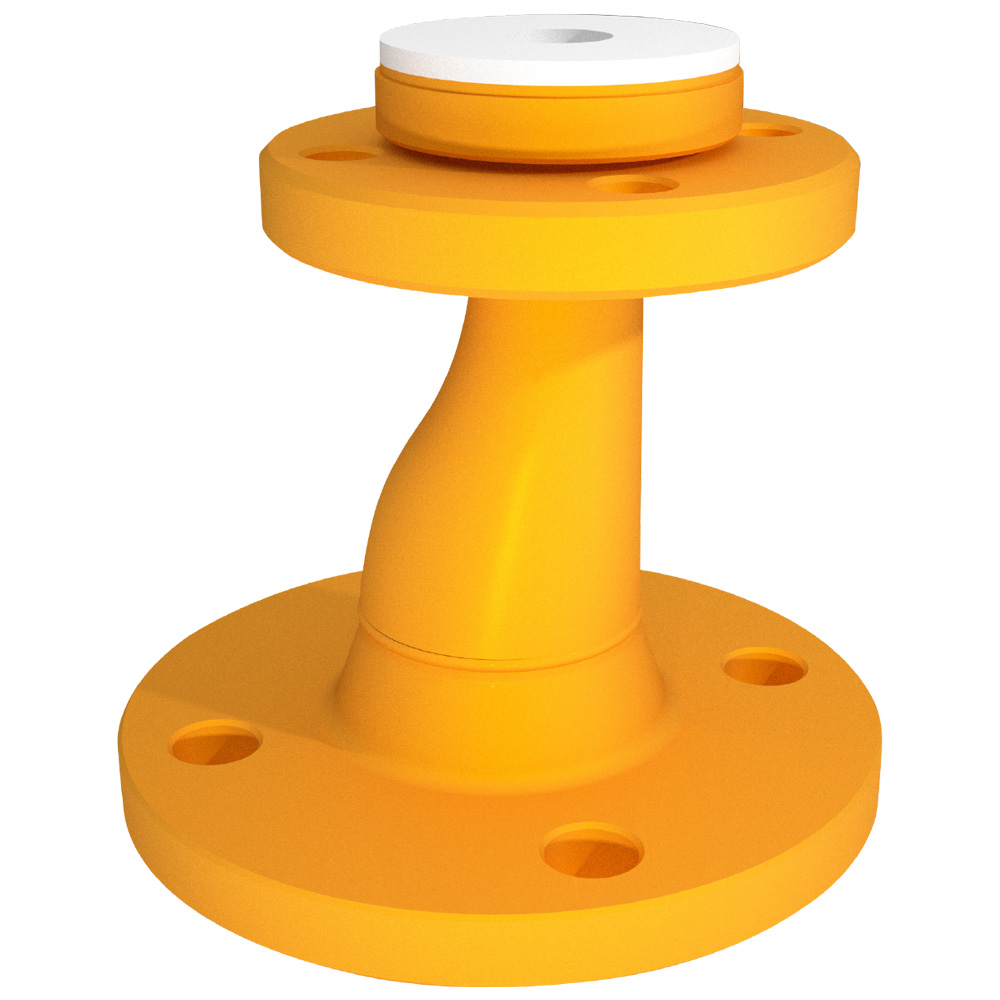

PTFE - PFA Lined Eccentric Reducers
Design DIN 2448/2874 - Certified - 2014/68/EU (PED)

Approvals and
Certifications
Certifications

Quality and
Special Tests
Special Tests

Engineering
Services
Services

Special
Supply
Supply

Stainless Steel
304L/316L
components
304L/316L
components

External
Finiture
Finiture

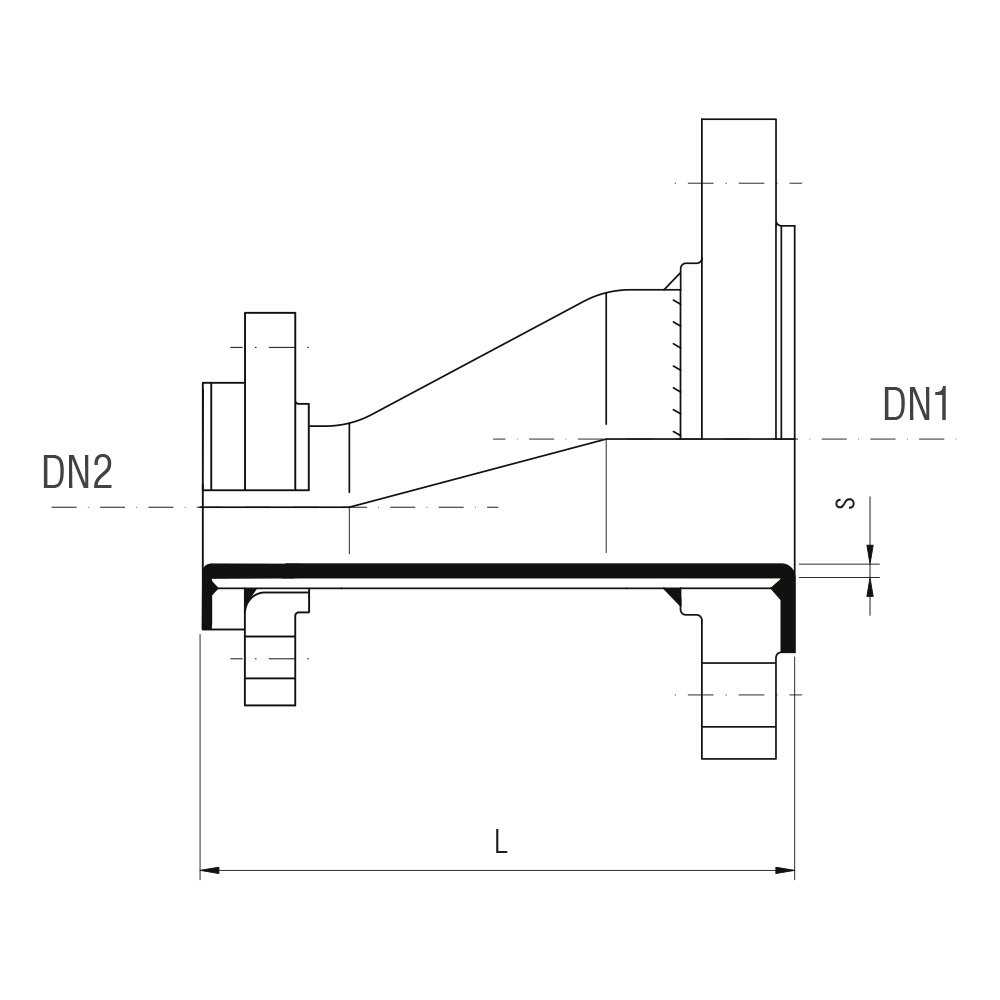

Technical Specification
DN1 | DN2 | L mm | s ± 10% mm | Weight kg |
---|---|---|---|---|
20 | 15 | 110 | 3 | 2,1 |
25 | 15 20 |
125 | 3 | 2,4 2,3 |
32 | 20 25 |
130 | 3 | 2,8 3,0 |
40 | 20 25 32 |
145 145 150 |
3 | 3,1 3,3 3,8 |
50 | 25 32 40 |
160 165 165 |
3 | 4,1 4,3 4,8 |
65 | 25 32 40 50 |
180 180 180 185 |
3 | 6,0 6,2 6,4 7,0 |
80 | 40 65 |
190 190 |
3 | 6,0 6,9 7,5 |
100 | 50 80 |
200 205 |
3 4,5 |
9,9 12,3 |
125 | 80 100 |
235 | 4,5 | 12,8 15,0 |
150 | 100 125 |
250 | 5 | 18,3 20,1 |
200 | 100 150 |
270 | 6 | 23,5 25,2 |
250 | 150 200 |
305 310 |
6,5 | 37,8 44,8 |
300 | 200 250 |
335 340 |
6,5 | 48,0 52,6 |
350 | 250 300 |
465 | 6,5 | 73,6 80,0 |
400 | 300 350 |
495 | 6,5 | 105 115 |
450 | 350 400 |
495 | 6,5 | 148 157 |
500 | 400 450 |
650 | 6,5 | 210 218 |
600 | 500 | 750 | 4,5 | 291 |
