    PTFE - PFA Lined Reducing Flange

DIFLINE COLORS

PTFE - PFA Lined Reducing Flange
Data Sheet: D2-45

PTFE - PFA Lined Reducing Flange

Design DIN 2448/2874 - Certified - 2014/68/EU (PED)


Available on request
Approvals and
Certifications
Quality and
Special Tests
Engineering
Services
Special
Supply
Stainless Steel
304L/316L
components
External
Finiture

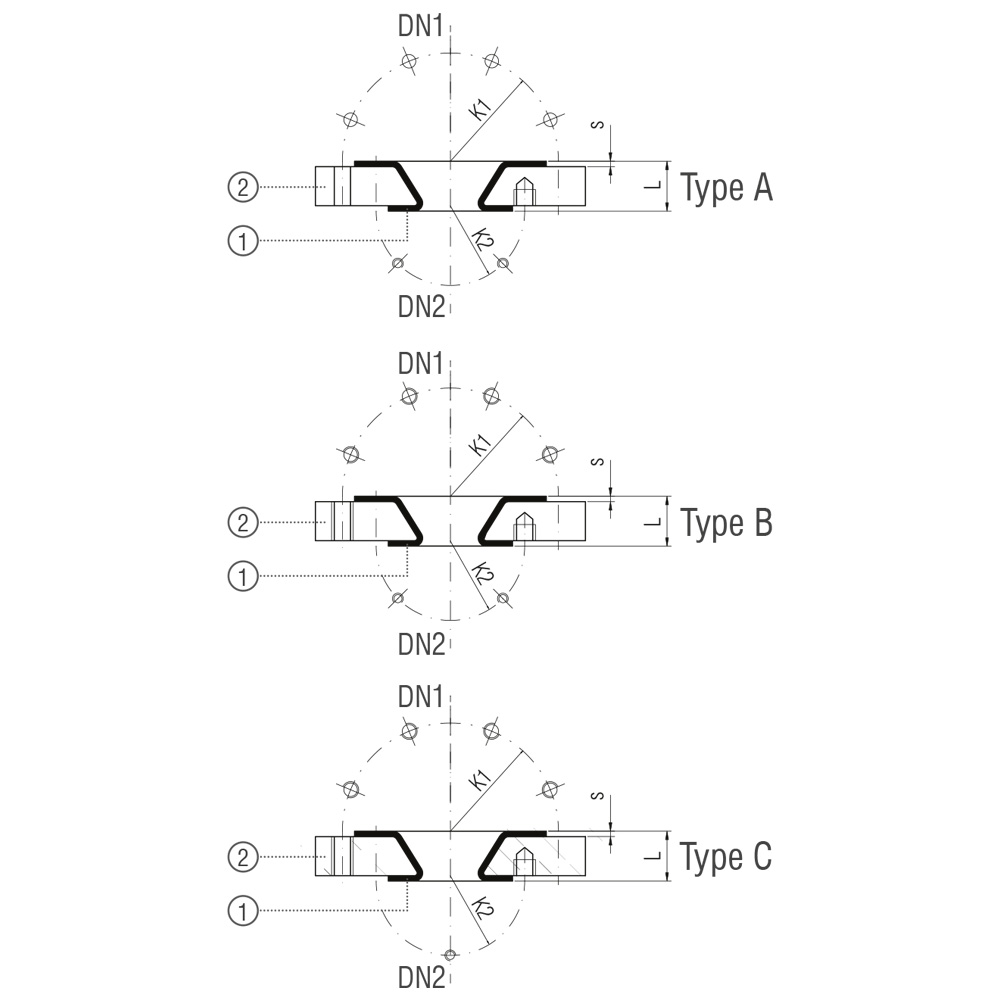

DN1 DN2 L mm s ± 10% mm Type Weight kg
20 15 35 3 C 2,0
25 20 35 3,5 C 2,4
32 20
25
35 3,5 C 3,9
3,5
40 20
25
32
35 4,0 C 4,0
4,1
3,9
50 20
25
32
40
35 4,0 B
B
C
C
5,0
4,9
5,0
5,1
65 25
32
40
50
35 4,0 B
B
C
C
5,9
5,8
5,6
5,6
80 25
32
40
50
65
35 4/3,5
4/3,5
4
4
4
A
B
B
B
B
6,8
6,7
6,6
6,4
6,2
100 25
32
40
50
80
45 4,5/3,5
4,5/3,5
4,5/4
4,5/4
4,5/4
A
B
B
B
C
12
12
12
12
10
125 25
32
40
50
80
100
45 4,5/3,5
4,5/3,5
4,5/4
4,5/4
4,5/4
4,5/4
A
A
A
A
B
C
16
16
15
14
13
13
150 25
32
40
50
80
100
125
45 5/3,5
5/3,5
5/4
5/4
5/4
5/4,5
5/4,5
A
A
A
A
A
B
C
22
21
20
19
18
17
16
200 25
50
80
100
150
45 5/3,5
5/4
5/4
5/4,5
5
A
A
A
A
B
29
28
27
25
23
250 50
80
100
150
200
45 6/4
6/4
6/4
5
5
A
A
A
A
B
28
24
22
19
16
300 50
80
100
150
200
250
50 6/4
6/4
6/4
6/4
5,5
5,5
A
A
A
A
A
C
44
38
36
31
28
24
350 50
80
100
150
200
250
300
50 6/4
6/4
6/4
6/4
6/4
6
6
A
A
A
A
A
A
B
56
50
47
42
38
35
33
400 80
100
150
200
250
300
350
50 6/4
6/4
6/4
6/4
6/4
6
6

A
A
A
A
A
A
B

71
68
62
60
55
49
40
500 100
150
200
250
300
350
400
450
50 6/4 A
A
A
A
A
A
A
C
93
87
86
85
77
70
62
51
600 150
200
250
300
350
400
450
500
50 6,4 A 139
131
128
121
105
93
84
78
Technical Specifications of the Difline Products
