Data Sheet: C3-111

Gaskets Epdm-nbr For Cam & Groove Fittings




Description

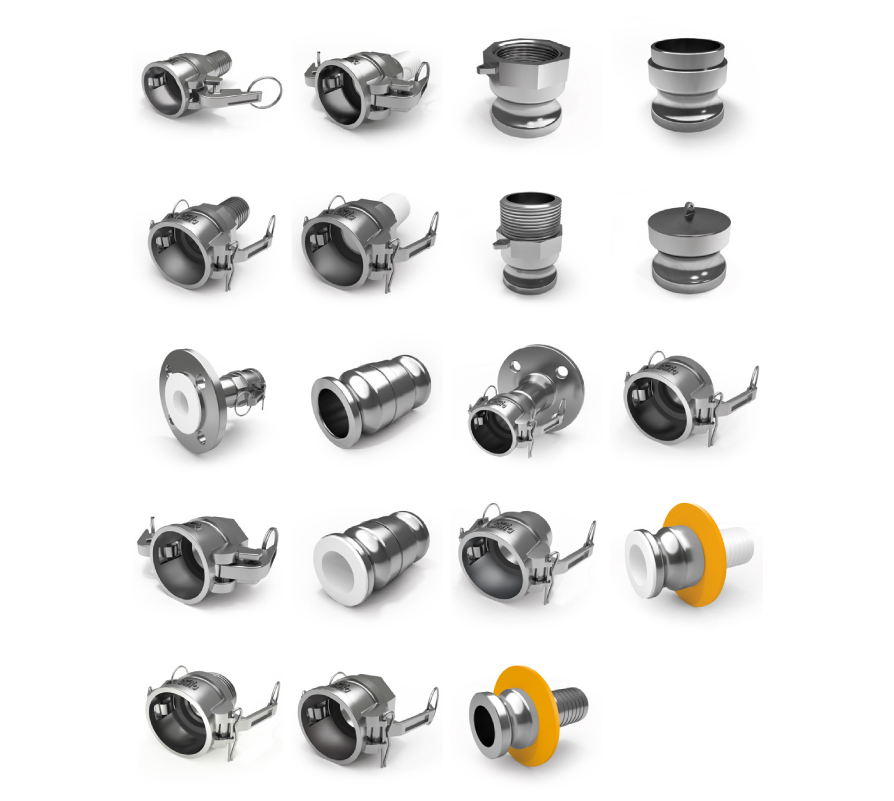

Application examplesIn specific design gaskets EPDM for CAM & GROVE fittings

ApplicationsAir, Water, Steam, Oxygen, Oxidation by ozone, brake hydraulic oils, detergents etc.
• Operating temperature: -40° C +120° C

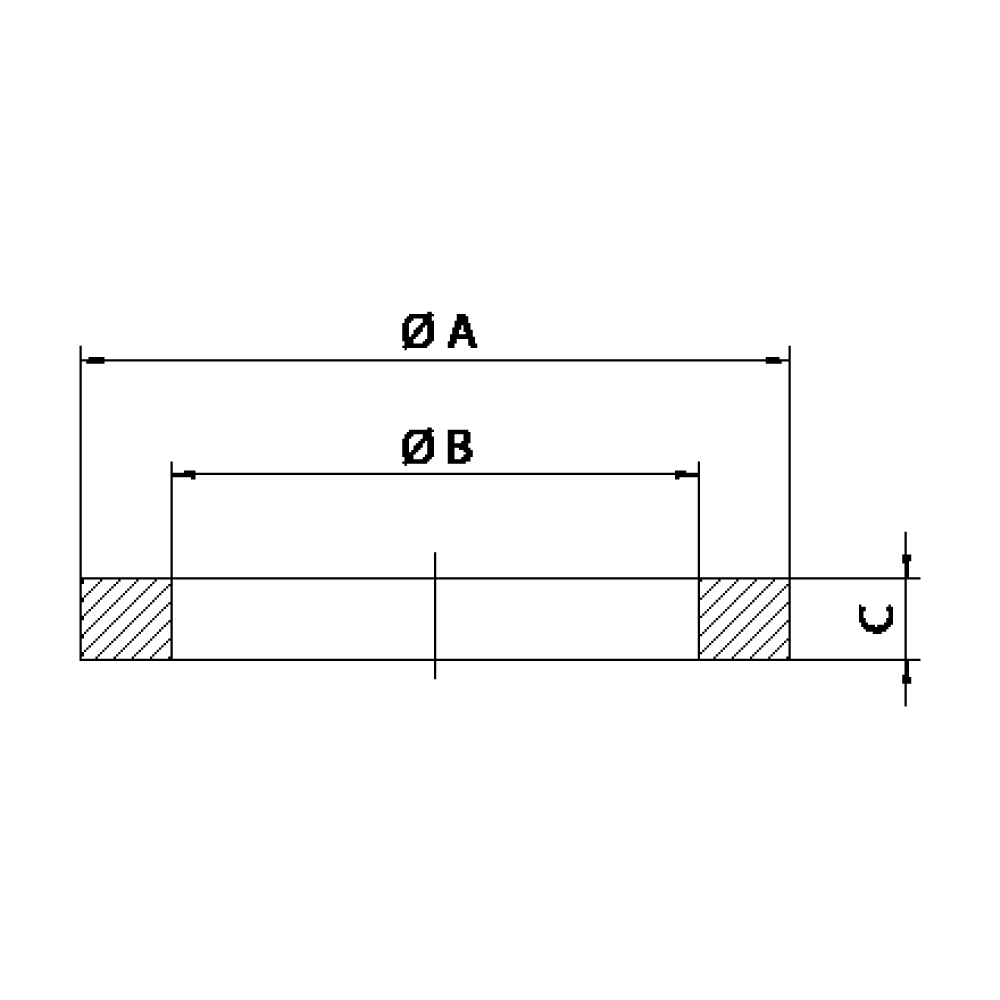

Gaskets dimensions
DN ØA ØB C
15 - ½" 26 17 3,96
20 - ¾" 35 22 5,53
25 - 1" 40 27 6,35
32 - 1 ¼" 49 34 6,35
40 - 1 ½" 55 41 6,35
50 - 2" 66 51 6,35
65 - 2 ½" 79 60 6,35
80 - 3" 94 76 6,35
100 - 4" 123 102 6,35
