    PTFE Conveyor

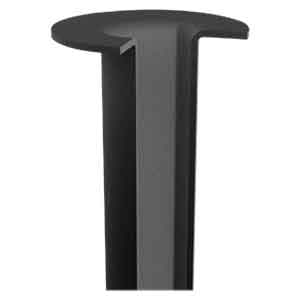

DIFLINE COLORS

PTFE Conveyor
Data Sheet: A2-65

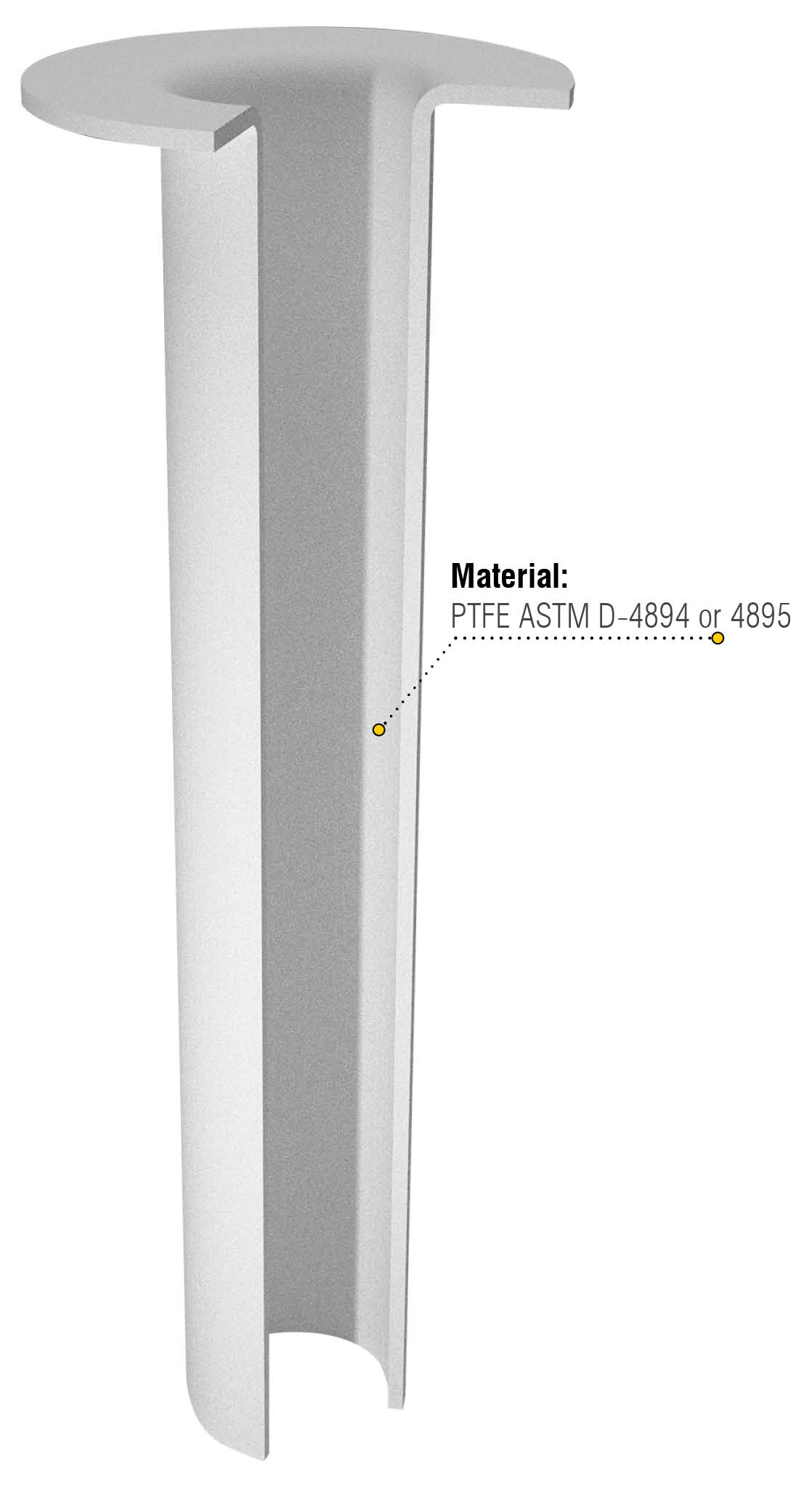

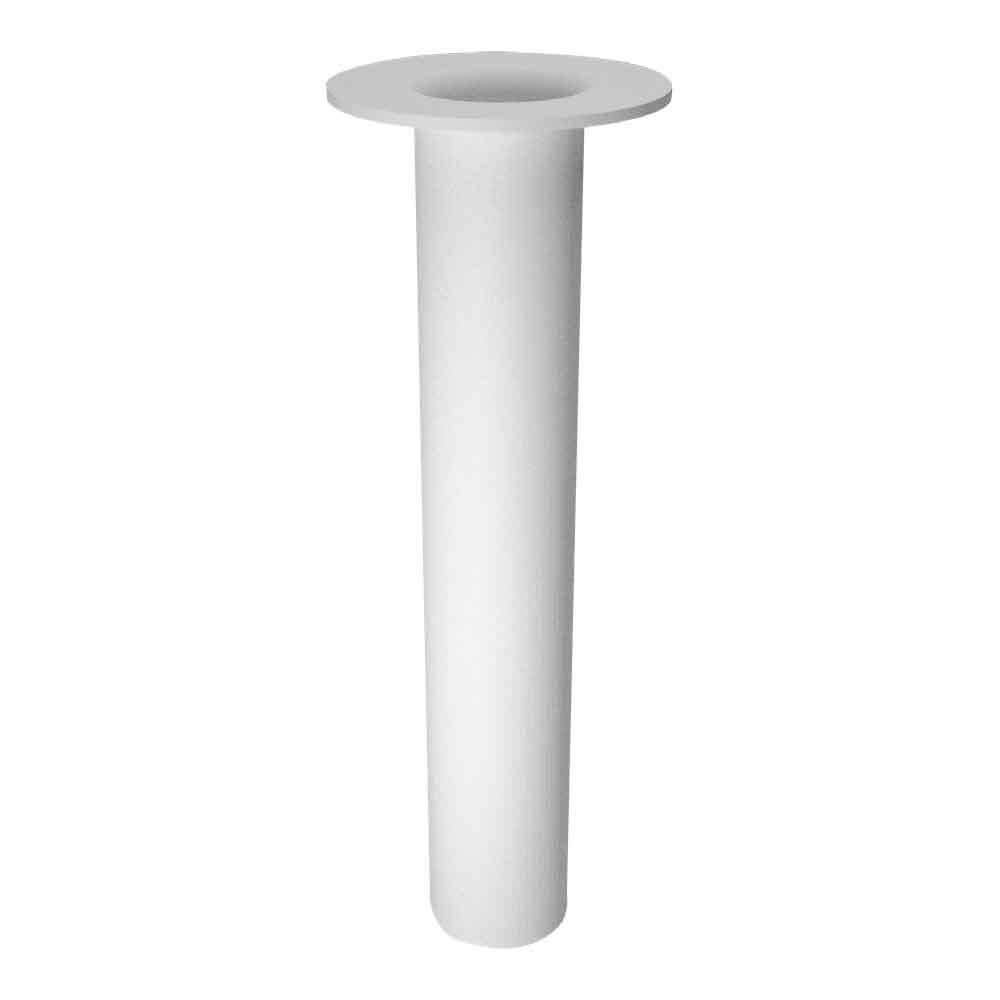

PTFE Conveyor

Design ASME B16.5 Class 150


Available on request

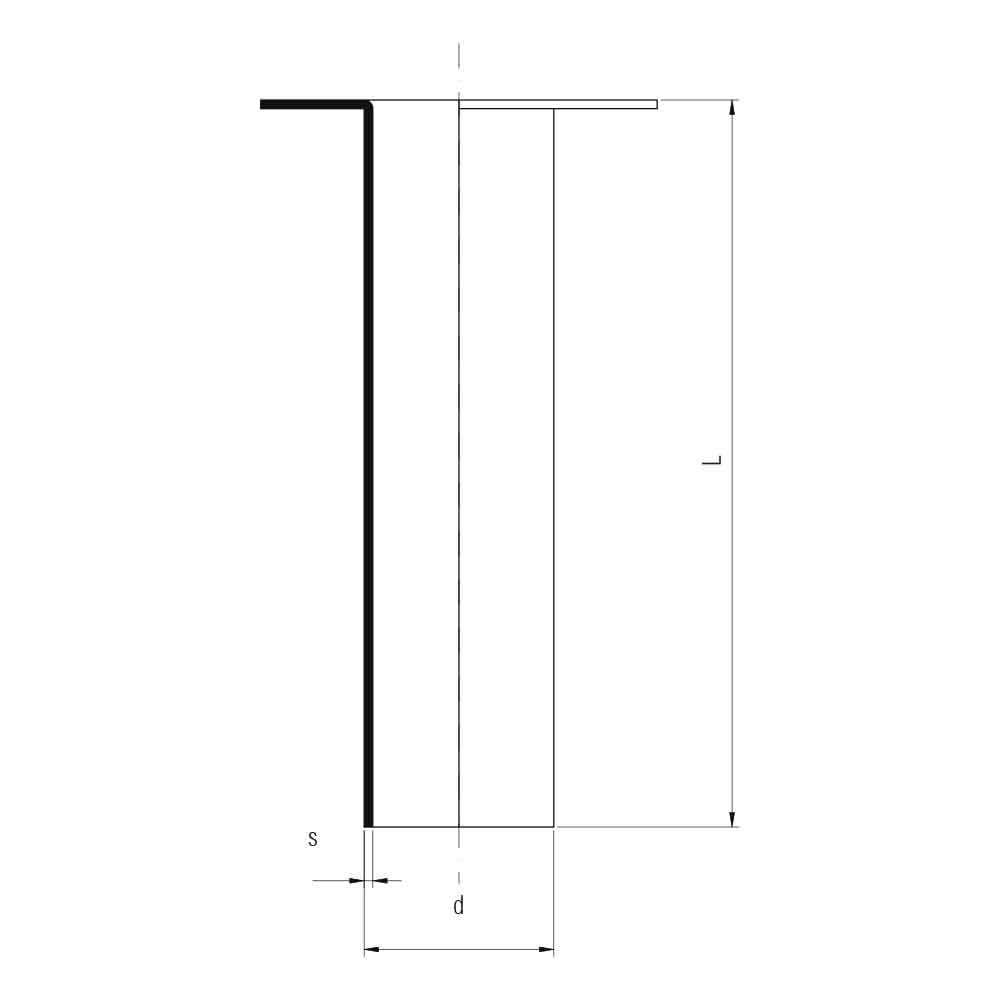

DN L max. mm d mm s ± 10% mm
1" 3000 24,5 3,0
1 1/4" 3000 26,0 3,0
1 1/2" 3000 35,0 3,25
2" 3000 40,0 3,0
2 1/2" 3000 51,0 3,75
3" 3000 70,0 3,0
4" 3000 82,0 3,5
5" 3000 104,0 4,75
6" 3000 133 4,5
8" 3000 180,0 5,75
10" 3000 230,0 5,75
12" 3000 280,0 7,0
14" 3000 330,0 6,5
16" 3000 319 7,25
