    Gaskets For Threaded Bsp/gas Fittings

FLEXILINE base COLORS standard

FLEXILINE Guarnizioni Modifica

Gaskets For Threaded Bsp/gas Fittings
Data Sheet: C3-107

Gaskets For Threaded Bsp/gas Fittings




Description

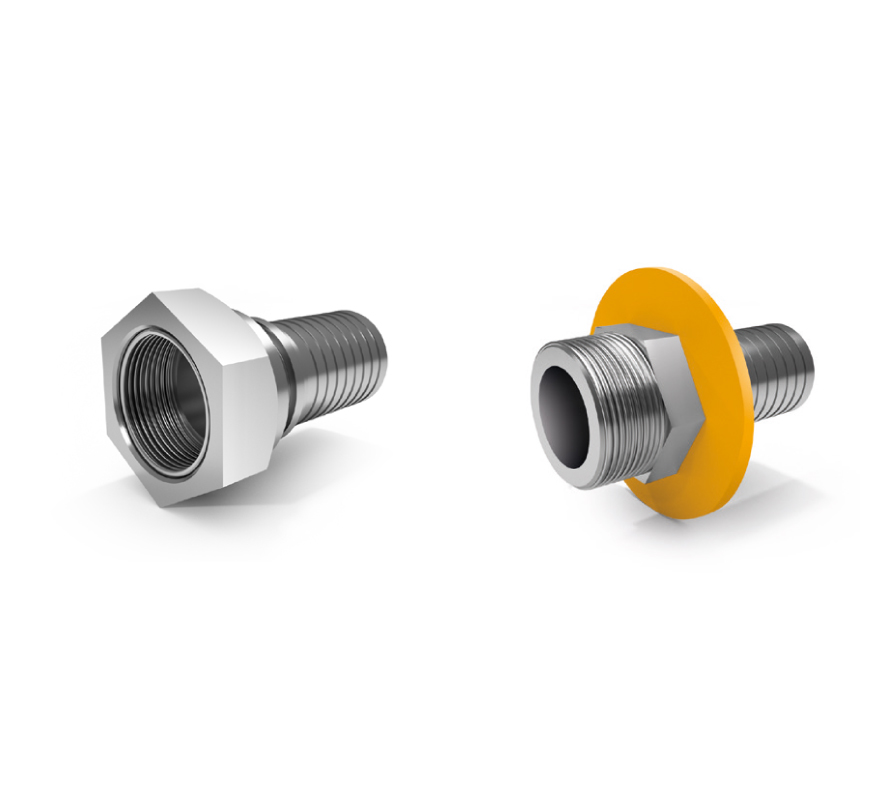

Application examples DIFLEXDIFLEX gasket for type SMS 1145 fittings
ApplicationsAcids, Strong alkali, Solvents, Catalyzers, Aromatics, etc. Foods, Pharmaceuticals, Chemicals, Petrochemicals, etc.
• Operating temperature: -150° + 260° C
• Working pressure at room temperature: 50 bar

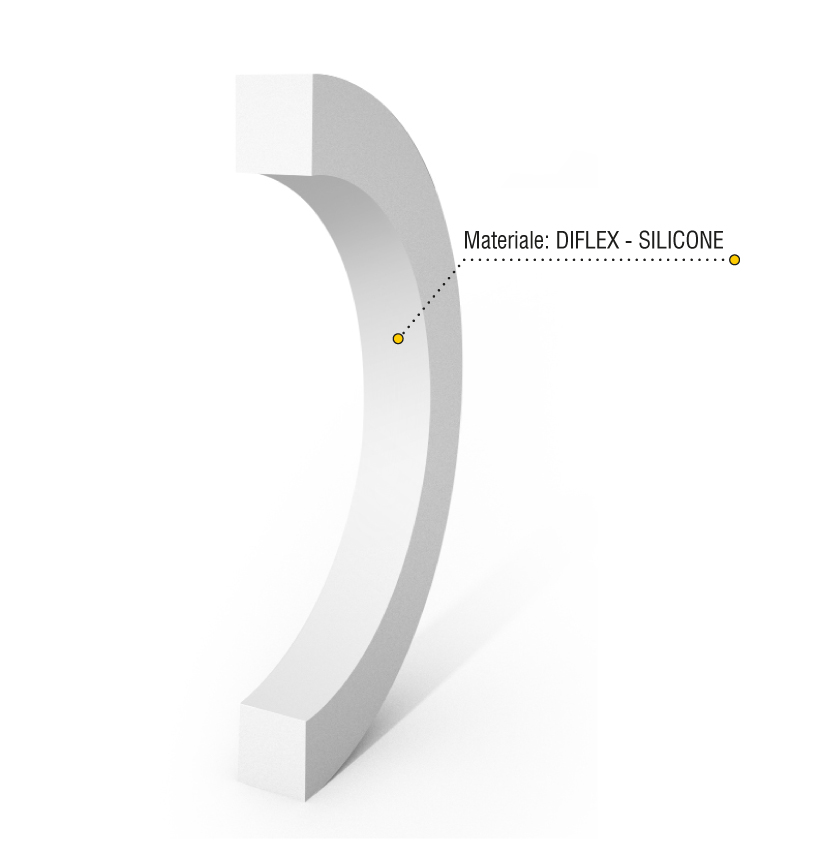

Application examples SILICONSilicon (VMQ) for type SMS 1145 fittings
ApplicationsOils, Fats, Oxidations (oxygen and ozone even hot), Medical Products, Pharmaceuticals, Biologicals, Foods, etc.
you can provide special silicones for specific uses.
• Operating temperature: -140° +200° C
• Working pressure at room temperature: 10 bar

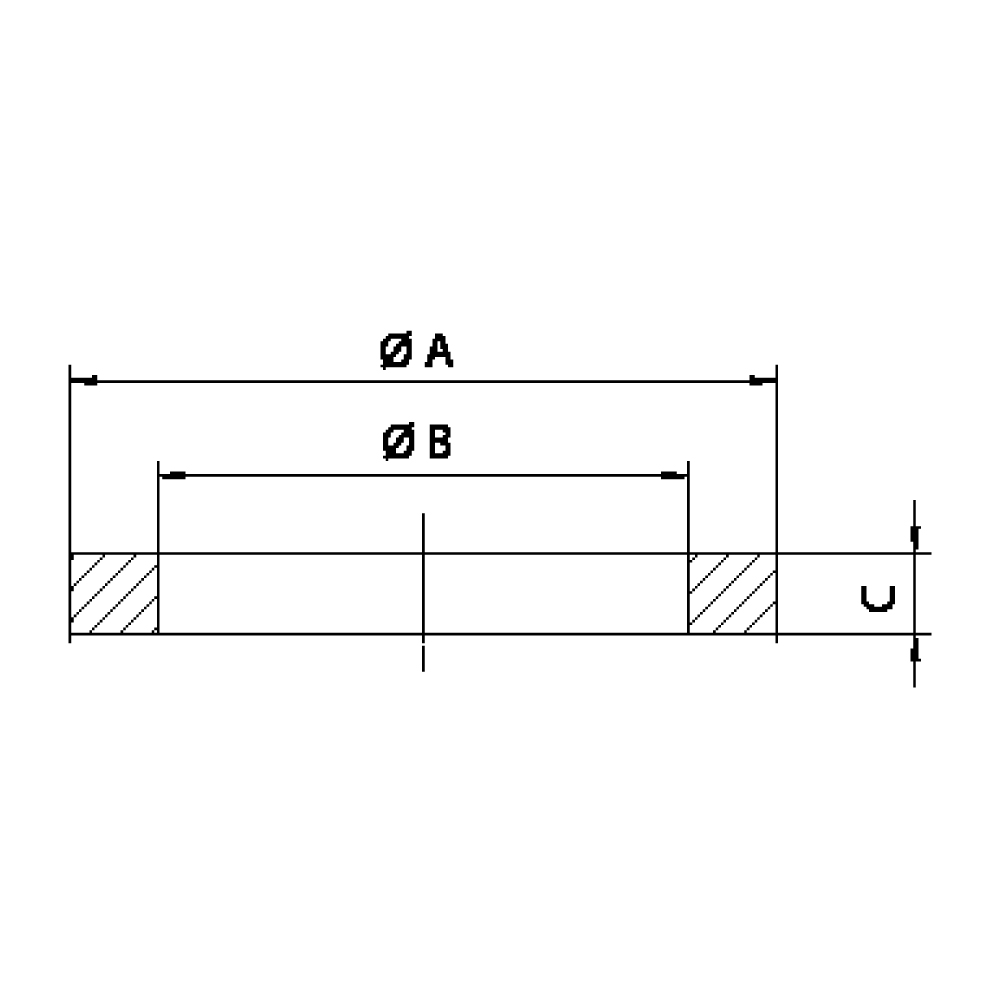

Gaskets dimensions
DN ØA ØB C
15 - ½" 20 10 3
20 - ¾" 26 16 3
25 - 1" 32 21 3
32 - 1 ¼" 40 29 3
40 - 1 ½" 46 34 3
50 - 2" 59 47 3
65 - 2 ½" 73 60 3
80 - 3" 86 72 3
100 - 4" 112 97 3
