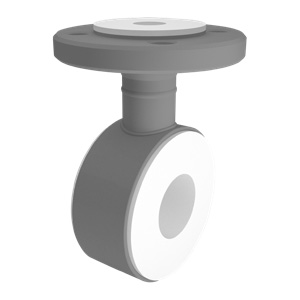

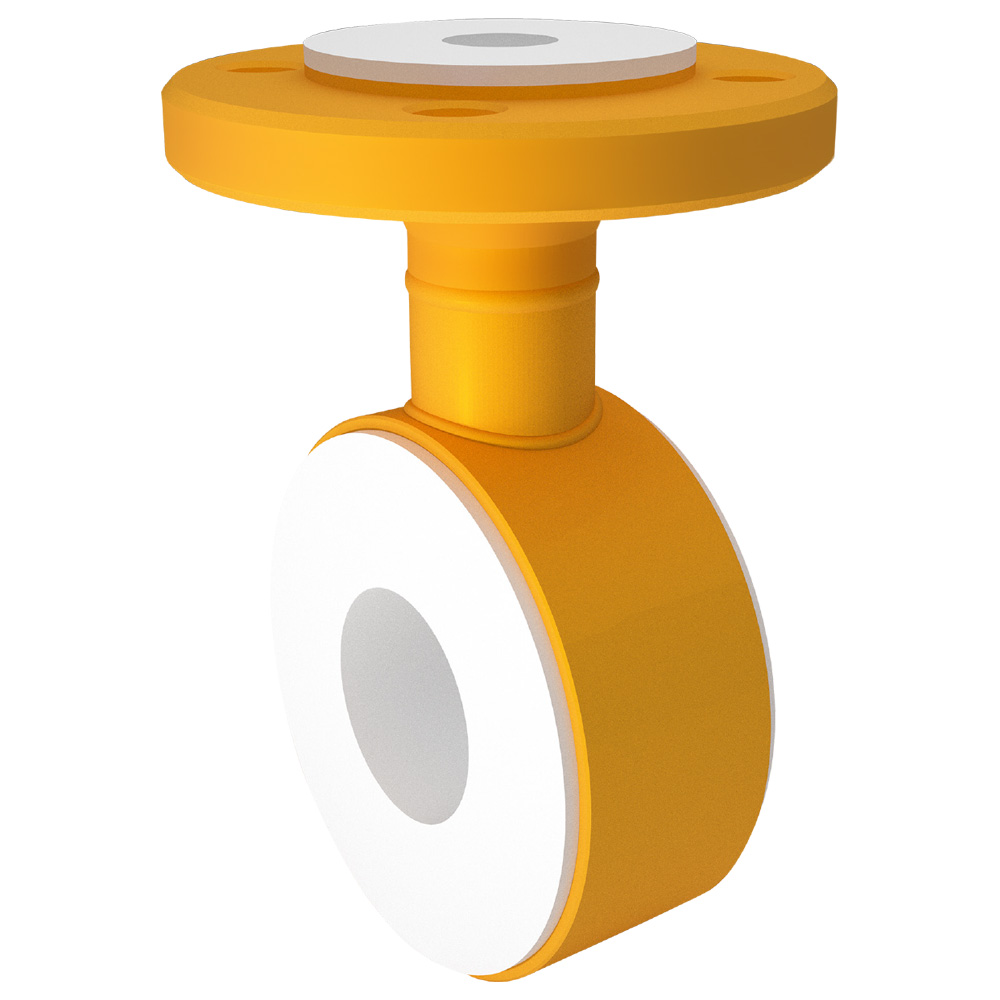

    PTFE - PFA Lined Instrument Tees

DIFLINE COLORS

PTFE - PFA Lined Instrument Tees
Data Sheet: D2-42

PTFE - PFA Lined Instrument Tees

Design DIN 2448/2874 - Certified - 2014/68/EU (PED)


Available on request
Approvals and
Certifications
Quality and
Special Tests
Engineering
Services
Special
Supply
Stainless Steel
304L/316L
components
External
Finiture

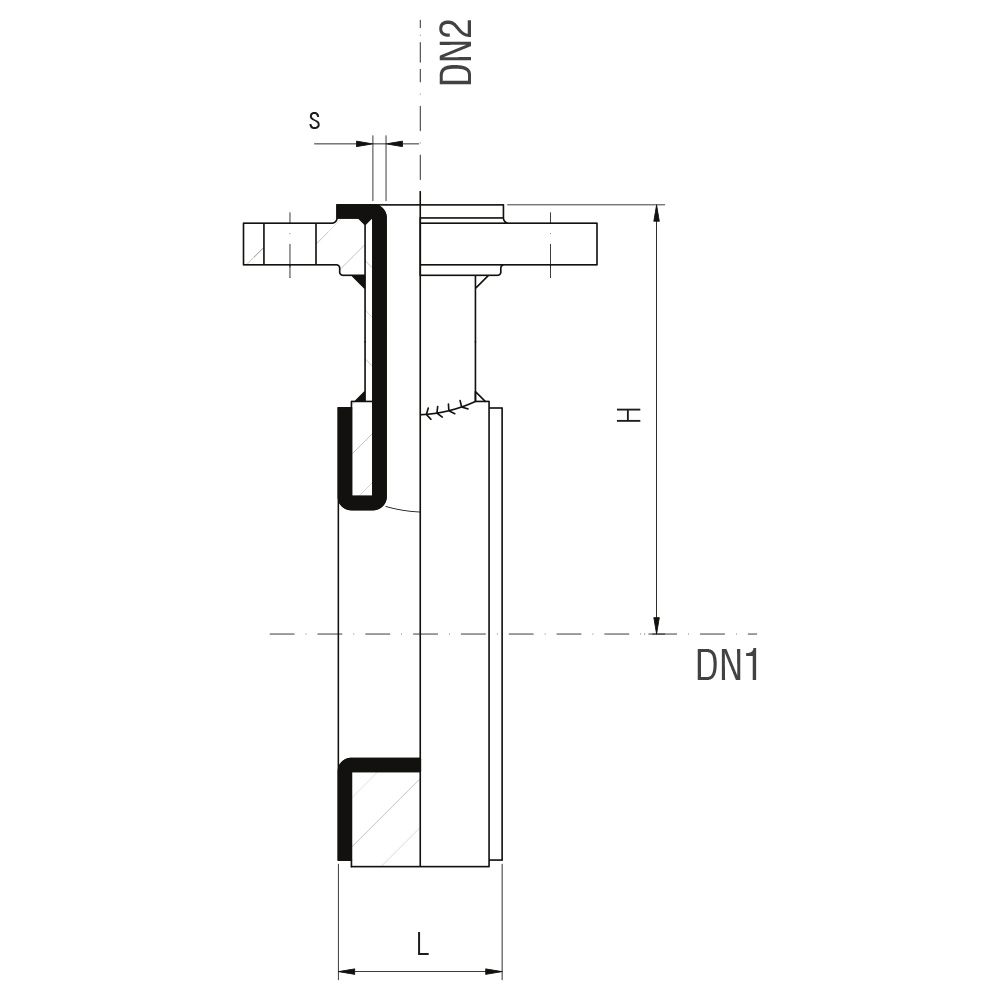

DN1 DN2 L mm H mm s Weight kg
25 15
20
25
50 90 4,0 1,9
2,0
2,2
32 15
20
25
50 100 4,0 2,1
2,3
2,5
40 15
20
25
40
50
50
50
75
110 4,0 2,4
2,6
2,8
4,4
50 15
20
25
40
50
50
50
50
75
90
115 4,0 3,2
3,4
3,6
6,2
8,1
65 15
20
25
40
50
50
50
50
75
90
125 4,0 3,7
3,8
3,9
7,2
9,8
80 15
20
25
40
50
50
50
50
75
90
135 4,0 4,3
4,5
4,7
8,3
12,6
100 15
20
25
40
50
50
50
50
75
90
150 4,5 5,5
5,7
5,9
8,9
16,0
125 15
20
25
40
50
50
50
50
75
90
160 5,0 6,6
6,8
7,0
12,4
20,5
150 15
20
25
40
50
50
50
50
75
90
180 5 7,7
7,9
8,2
14,7
21,8
200 15
20
25
40
50
50
50
50
75
90
210 5 9,9
10,3
10,5
17,8
23,4
250 15
20
25
40
50
50
50
50
75
90
240 5 13,3
13,5
13,7
23,2
25,9
