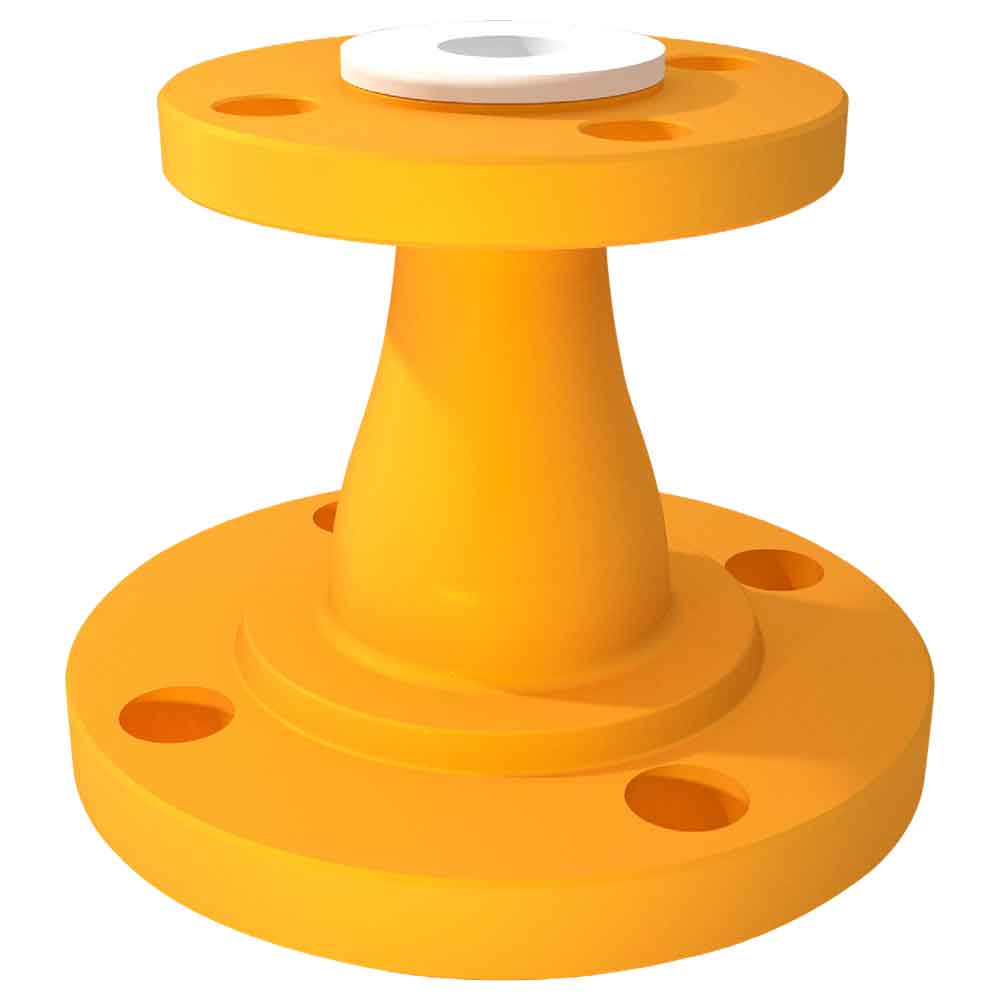

    PTFE - PFA Lined Concentric Reducers

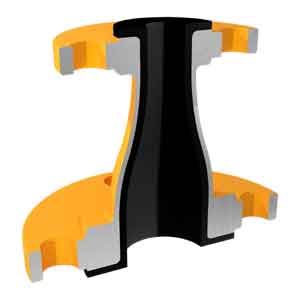

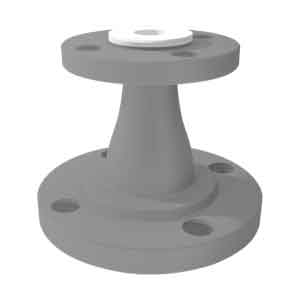

DIFLINE COLORS

PTFE - PFA Lined Concentric Reducers
Data Sheet: A2-51

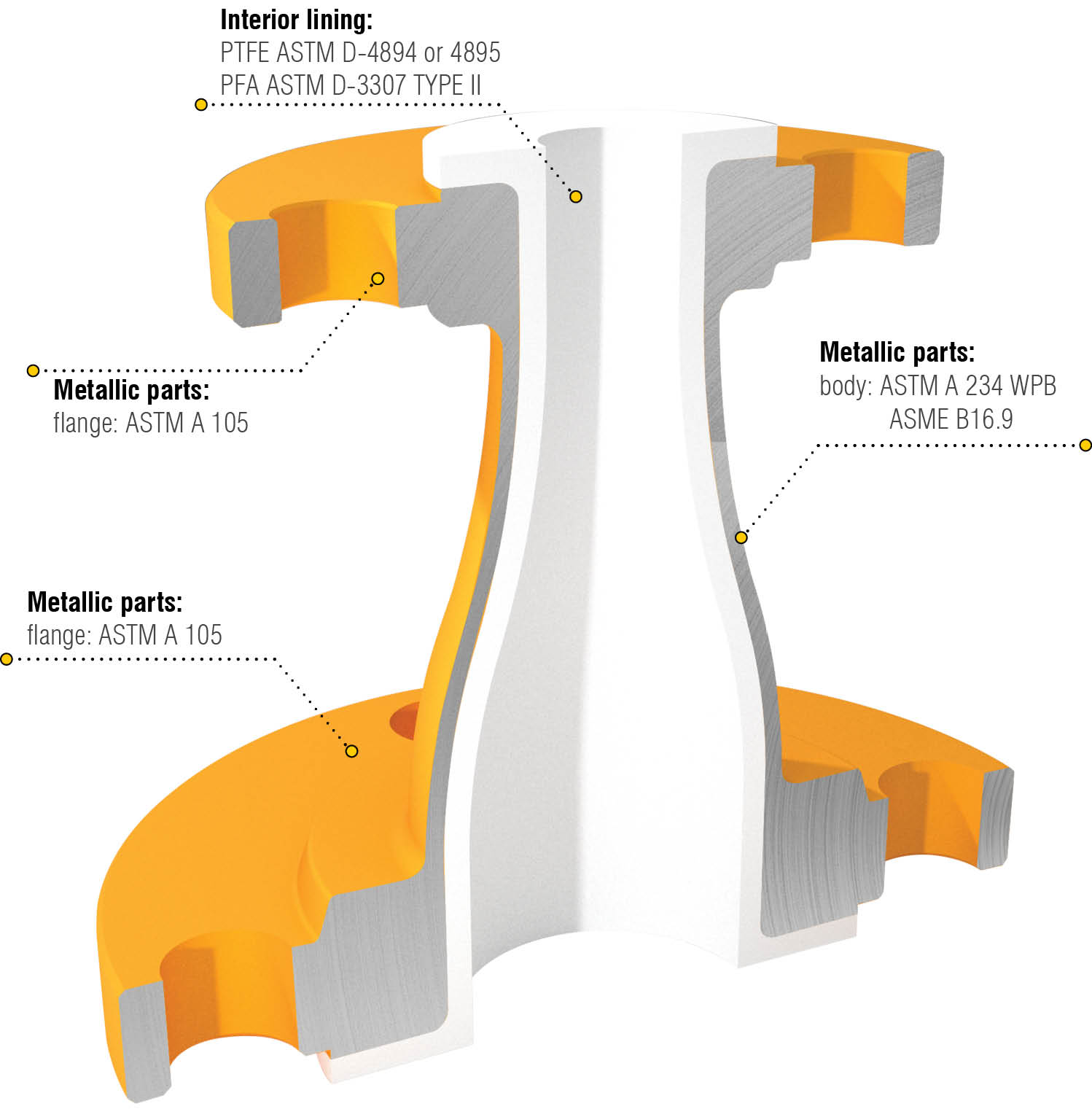

PTFE - PFA Lined Concentric Reducers

Design ASME B16.5 Class 150


Available on request
Approvals and
Certifications
Quality and
Special Tests
Engineering
Services
Special
Supply
Stainless Steel
304L/316L
components
External
Finiture

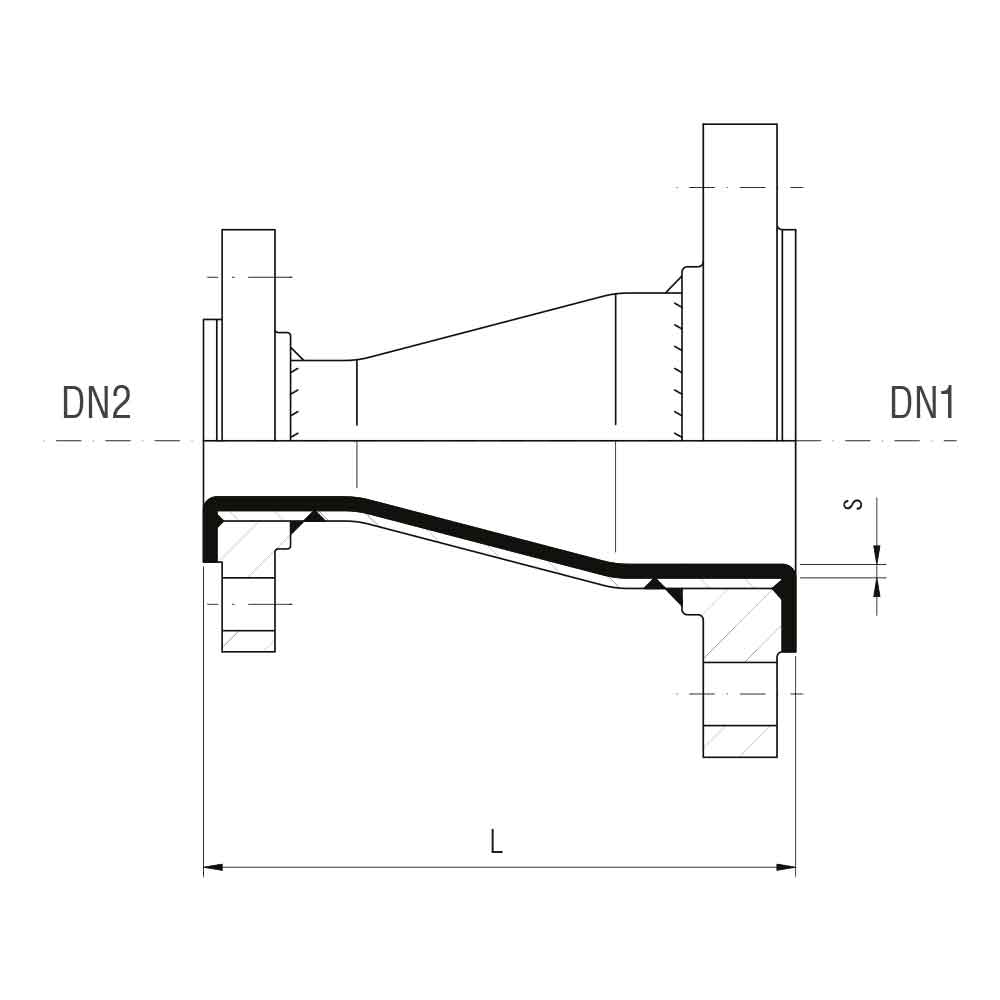

DN1 DN2 L mm s ± 10% mm Weight kg
3/4" 1/2" 114 2 2,1
1" 1/2"
3/4"
114 3 2,4
2,3
1 1/4" 3/4"
1"
114 3 2,8
3,0
1 1/2" 3/4"
1"
1 1/4"
114 3 3,1
3,3
3,8
2" 1"
1 1/4"
1 1/2"
127 4/3 4,1
4,3
4,8
2 1/2" 1"
1 1/4"
1 1/2"
2"
140 4/3
4/3
4
4
5,8
6,1
6,4
7,0
3" 1"
1 1/4"
1 1/2"
2"
2 1/2"
152 4/3
4/3
4/3
4
4
6,7
6,5
6,3
6,9
7,5
4" 1"
1 1/4"
1 1/2"
2"
2 1/2"
3"
178 4,5/3
4,5/3
4,5/3
4,5/4
4,5
4,5
10,2
9,6
9,4
9,9
10,6
12,3
5" 2"
2 1/2"
3"
4"
203 4,5/4
4,5/4
4,5/4
4,5
10,6
11,0
12,8
15,0
6" 1"
2"
2 1/2"
3"
4"
5"
229 5/3
5/3
5/4
5/4
5/4,5
5
19,0
20,0
18,0
17,4
18,3
20,1
8" 4"
5"
6"
279 6/4,5
6/4,5
6/5
22,1
23,8
25,2
10" 4"
6"
8"
305 6,5/4,5
6,5/5
6,5
33,1
37,8
44,8
12" 6"
8"
10"
356 6,5 46,0
48,0
52,6
14" 8"
10"
12"
406 6,5 69,0
73,6
80,0
16" 10"
12"
14"
457 6,5 98,0
105
115
18" 12"
14"
16"
483 6,5 135
148
157
20" 12"
14"
16"
18"
508 6,5 185
198
210
218
24" 16"
18"
20"
610 4,5 272
282
291
