    PTFE - PFA Lined Concentric Reducers

DIFLINE COLORS

PTFE - PFA Lined Concentric Reducers
Data Sheet: D2-50

PTFE - PFA Lined Concentric Reducers

Design DIN 2448/2874 - Certified - 2014/68/EU (PED) - Flanged EN 1092-1


Available on request
Approvals and
Certifications
Quality and
Special Tests
Engineering
Services
Special
Supply
Stainless Steel
304L/316L
components
External
Finiture

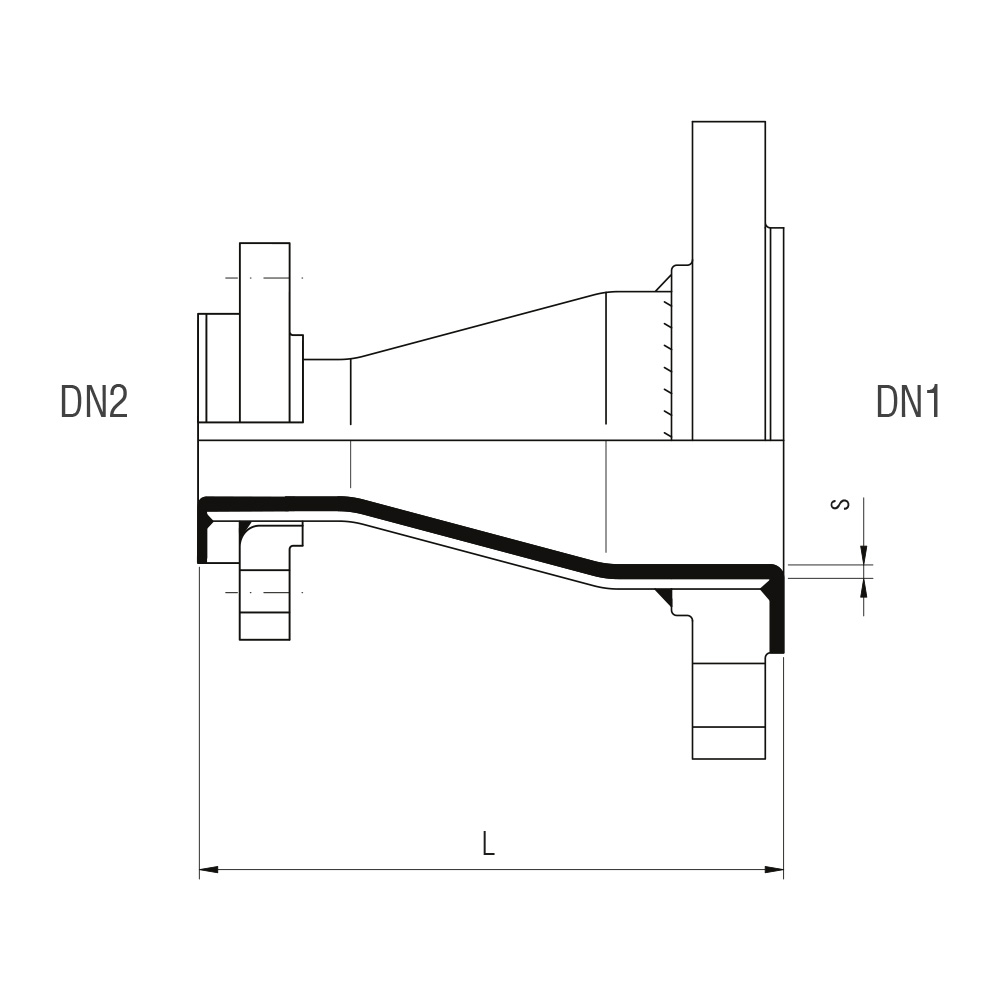

DN1 DN2 L mm s ± 10% mm Weight kg
20 15 110 2 2,1
25 15
20
125 3 2,4
2,3
32 20
25
130 3 2,8
3,0
40 20
25
32
145
145
150
3 3,1
3,3
3,8
50 25
32
40
160
165
165
4/3
4
4
4,1
4,3
4,8
65 25
32
40
50
175
180
180
185
4/3
4/3
4
4
5,8
6,1
6,4
7,0
80 25
32
40
50
65
180
180
185
190
190
4/3
4/3
4/3
4
4
6,7
6,5
6,3
6,9
7,5
100 25
32
40
50
65
80
200
200
200
200
200
205
4,5/3
4,5/3
4,5/3
4,5/4
4,5/4
4,5/4
10,2
9,6
9,4
9,9
10,6
12,3
125 50
65
80
100
230
230
235
235
4,5/4 10,6
11,0
12,8
15,0
150 25
50
65
80
100
125
250 5/3
5/4
5/4
5/4
5/4,5
5
19,0
20,0
18,0
17,4
18,3
20,1
200 100
125
150
  6/4,5
6/4,5
6/5
22,1
23,8
25,2
250 100
125
150
200
305
305
305
310
6,5/4,5
6,5/4,5
6,5/5
6,5/6
33,1
35,0
37,8
44,8
300 150
200
250
330
335
340
6,5 46,0
48,0
52,6
350 200
250
300
465 6,5 69,0
73,6
80,0
400 250
300
350
495 6,5 98,0
105
115
