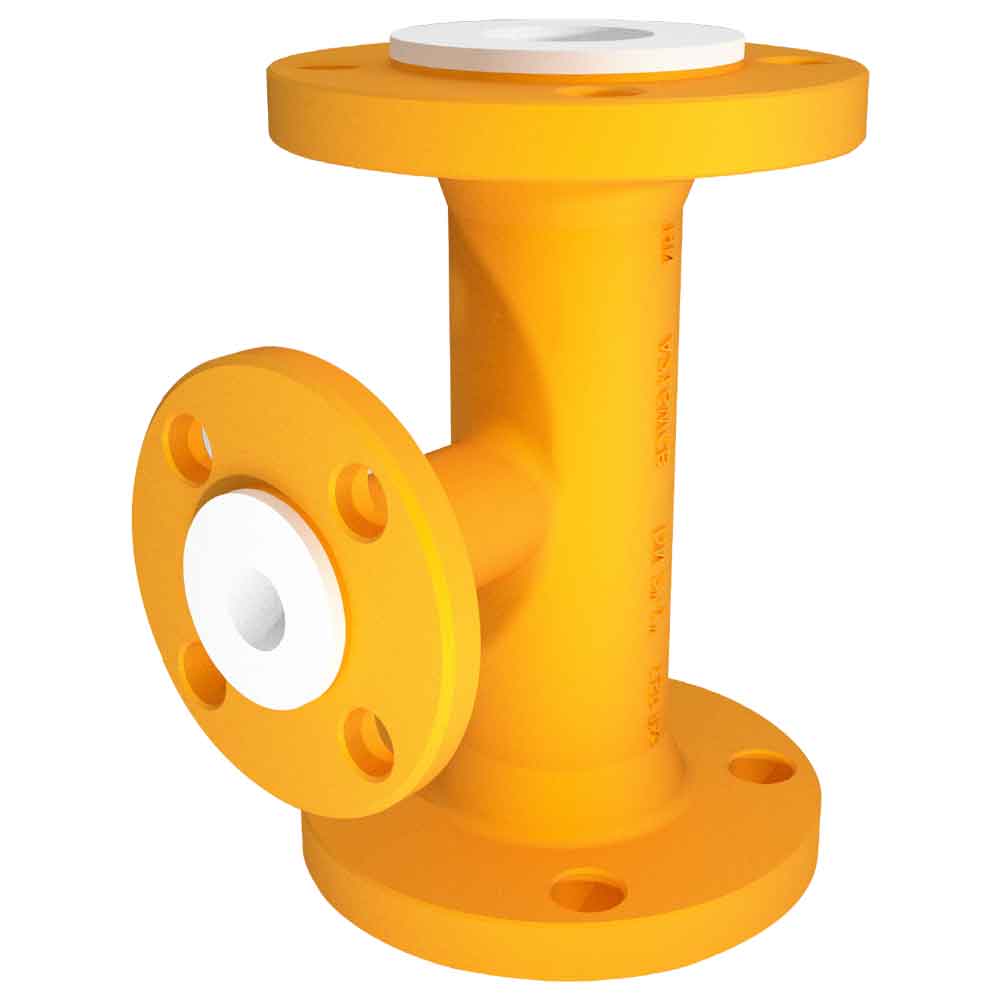

    PTFE - PFA Reducing Tee

DIFLINE COLORS

PTFE - PFA Reducing Tee
Data Sheet: A2-37

PTFE - PFA Reducing Tee

Design ASME B16.5 Class 150

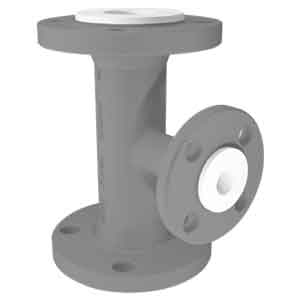

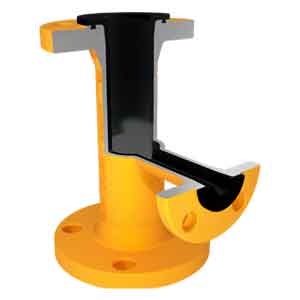

Available on request

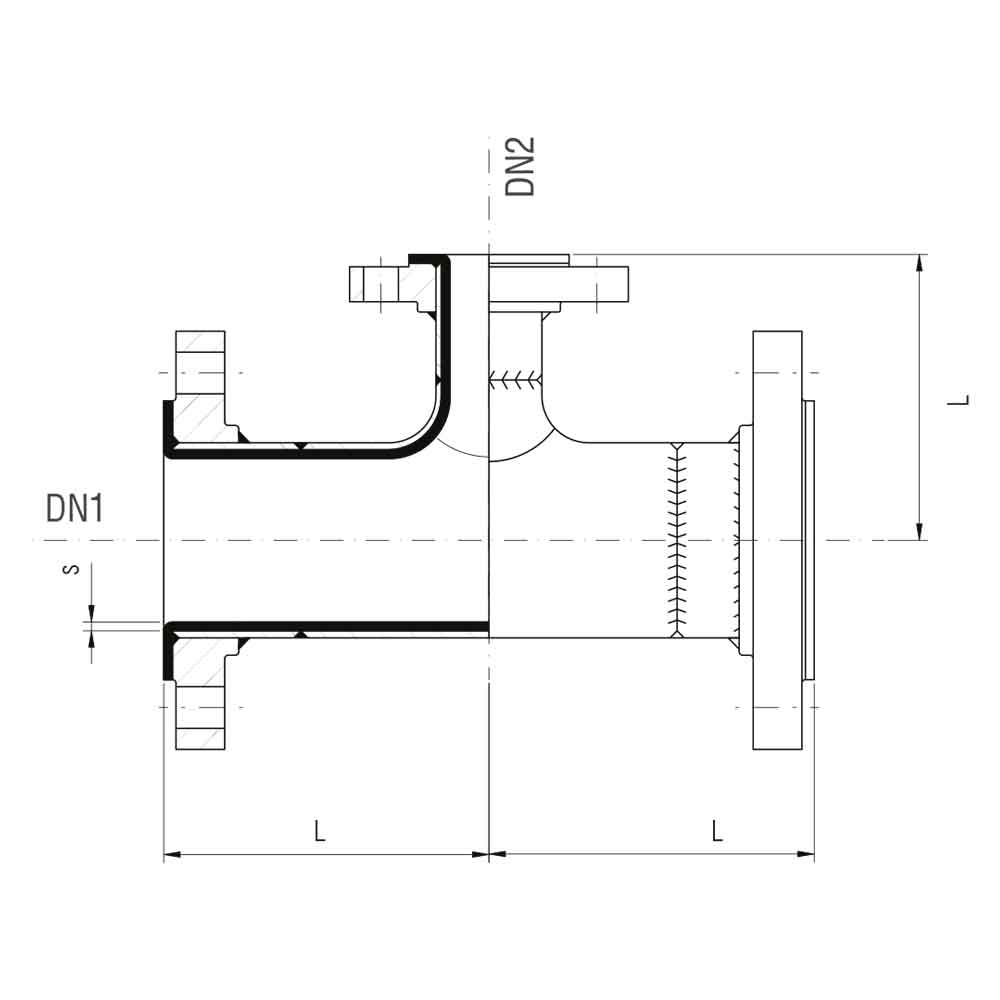

DN1 DN2 L mm s Weight kg
3/4" 1/2" 75 3 3,1
1" 1/2"
3/4"
89 3,5 3,7
3,9
1 1/4" 3/4"
1"
95 3,5 4,4
5,2
1 1/2" 1/2"
3/4"
1"
1 1/4"
102 4,0 5,3
5,5
5,7
6,0
2" 1/2"
1"
1 1/4"
1 1/2"
114 4,0 8,8
9,3
9,5
9,8
2 1/2" 1"
1 1/4"
1 1/2"
2"
127 4,5 14,0
14,0
14,7
15,5
3" 1"
1 1/2"
2"
2 1/2"
140 4,5 19,7
20,4
20,9
21,8
4" 1"
1 1/2"
2"
2 1/2"
3"
165 5 31,4
33,3
34,1
35,0
36,0
5" 2 1/2"
3"
4"
190 6 49,0
52,0
55,0
6" 3"
4"
5"
203 6,0 56,2
77,0
80,0
8" 4"
5"
6"
229 7 83,0
125
130
10" 6"
8"
279 7,5 156
161
12" 6"
8"
10"
305 8 165
218
222
14" 6"
8"
10"
12"
356 8 205
294
300
308
16" 8"
10"
12"
14"
381 8 292
356
362
370
