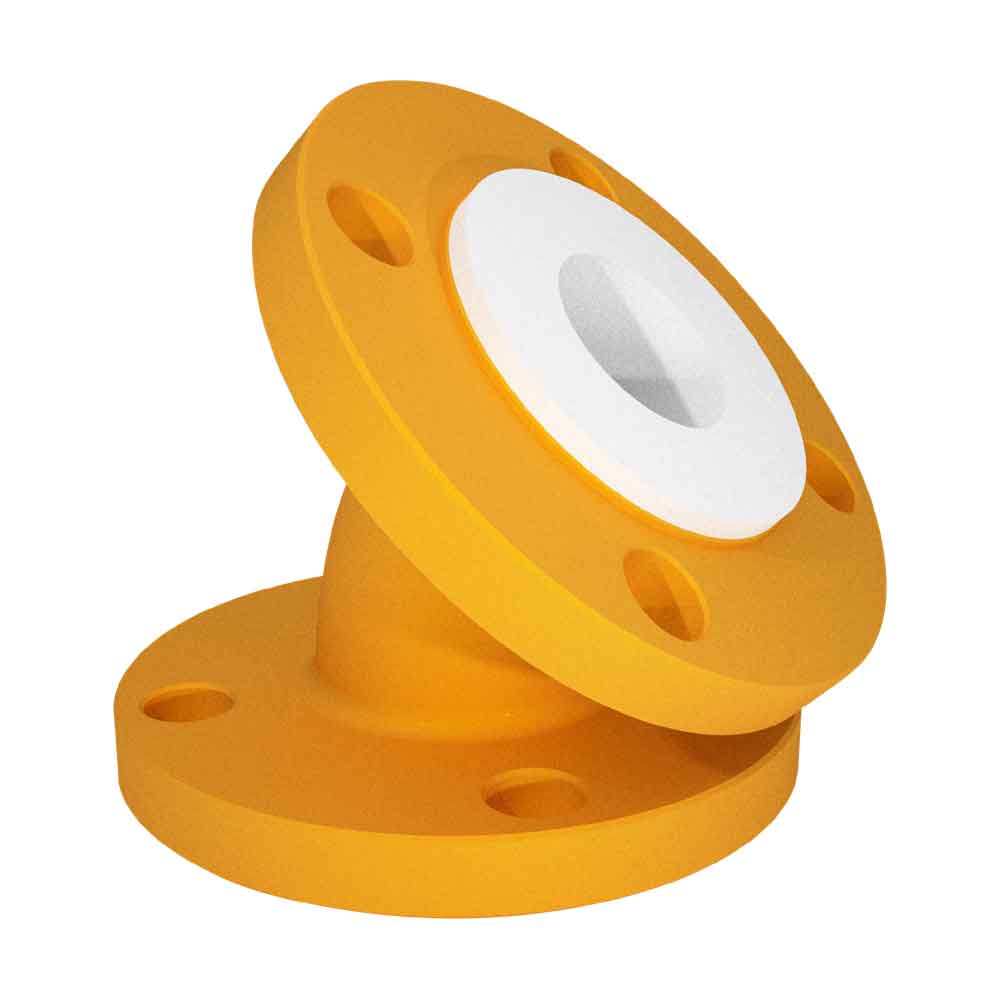

    PTFE Lined Elbows 45°

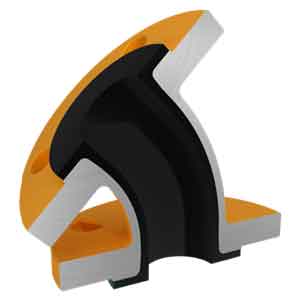

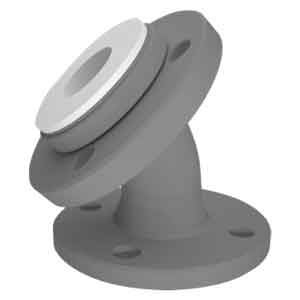

DIFLINE COLORS

PTFE Lined Elbows 45°
Data Sheet: A2-33

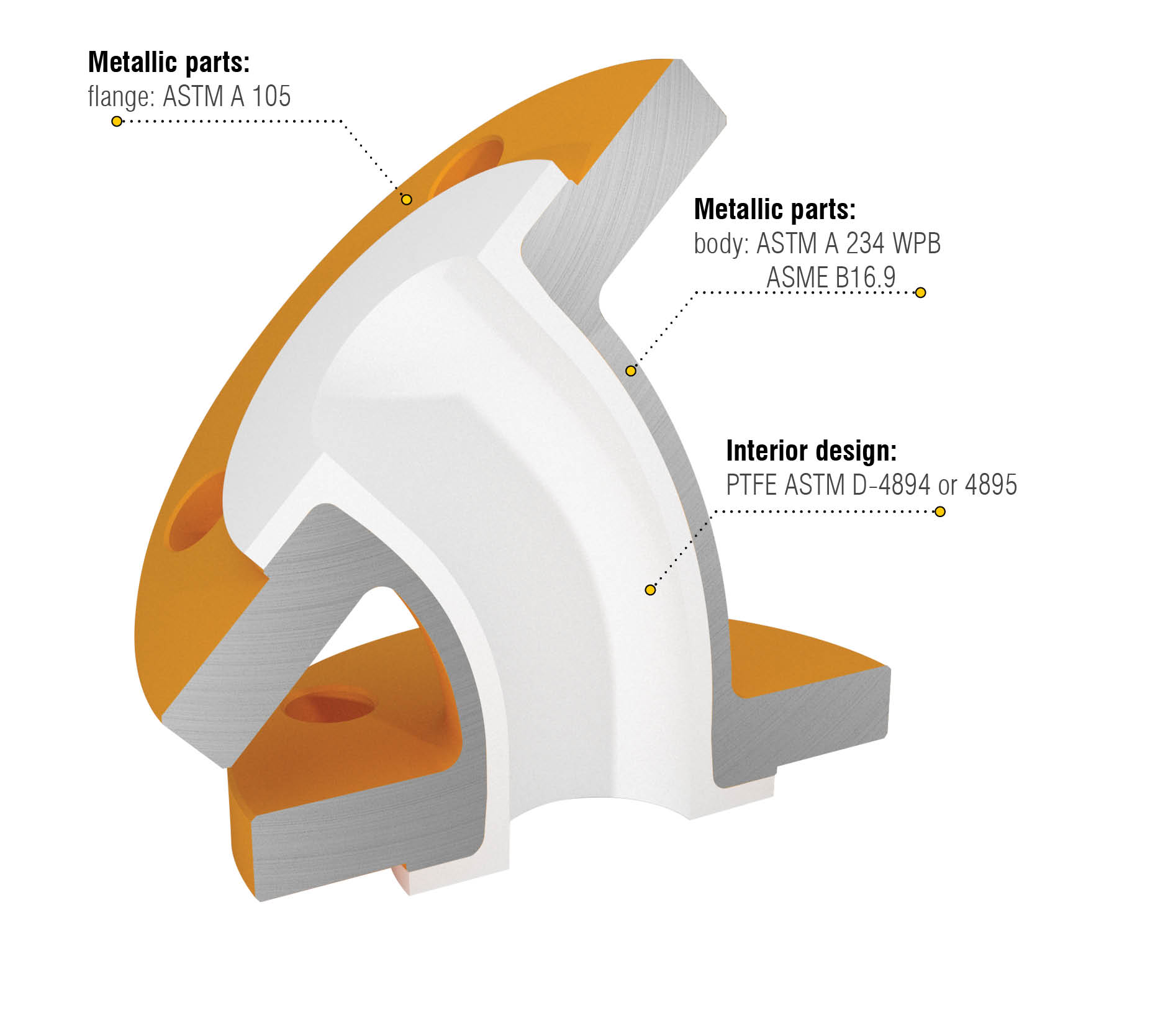

PTFE Lined Elbows 45°

Design ASME B16.5 Class 150


Available on request

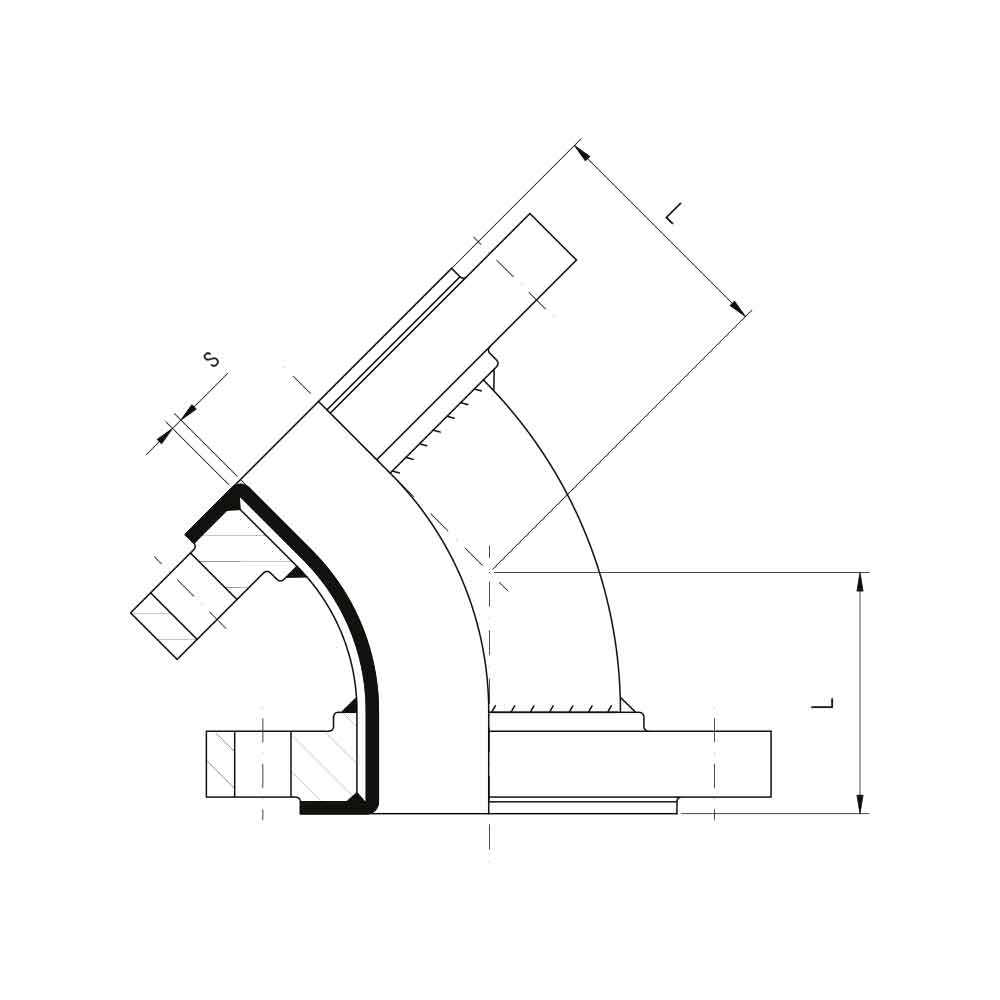

DN L mm s ± 10% mm Weight kg
1/2" 45 3,0 1,7
3/4" 45 3,0 2
1" 45 3,0 3
1 1/4" 51 3,5 4
1 1/2" 57 3,5 6
2" 64 4,0 9
2 1/2" 76 4,5 13
3" 76 5 15
4" 102 5,5 20
5" 114 5,5 26
6" 127 6 33
8" 140 6,5 54
10" 165 7 75
12" 190 7 110
14" 190 7 118
16" 203 7 145
18" 216 7,0 165
20" 241 7,0 210
24" 279 7 290
