    PTFE Lined Elbows 90°

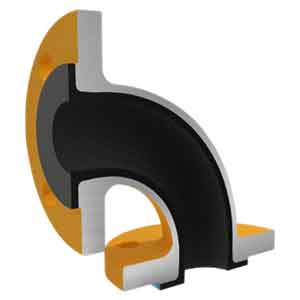

DIFLINE COLORS

PTFE Lined Elbows 90°
Data Sheet: A2-31

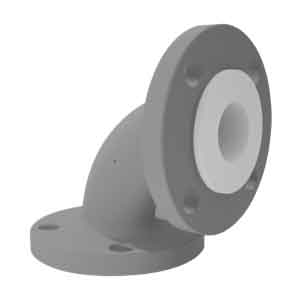

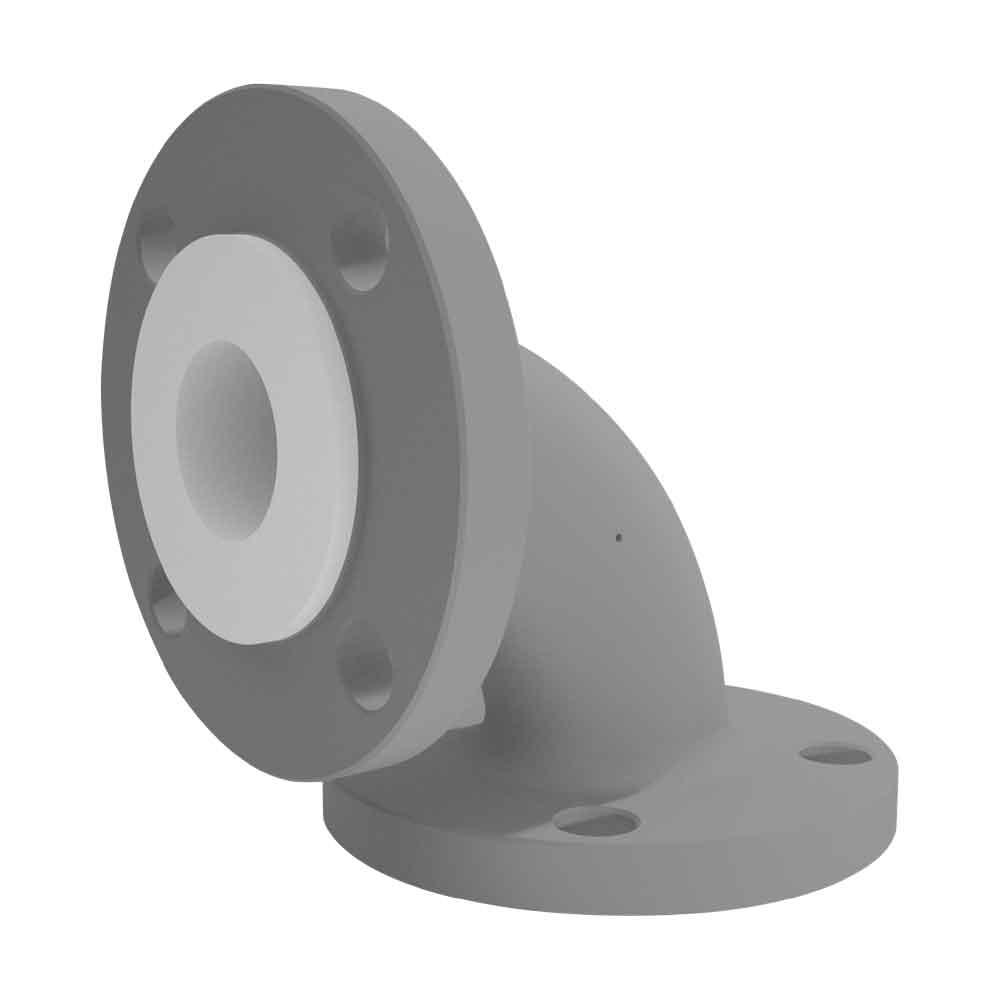

PTFE Lined Elbows 90°

Design ASME B16.5 Class 150


Available on request

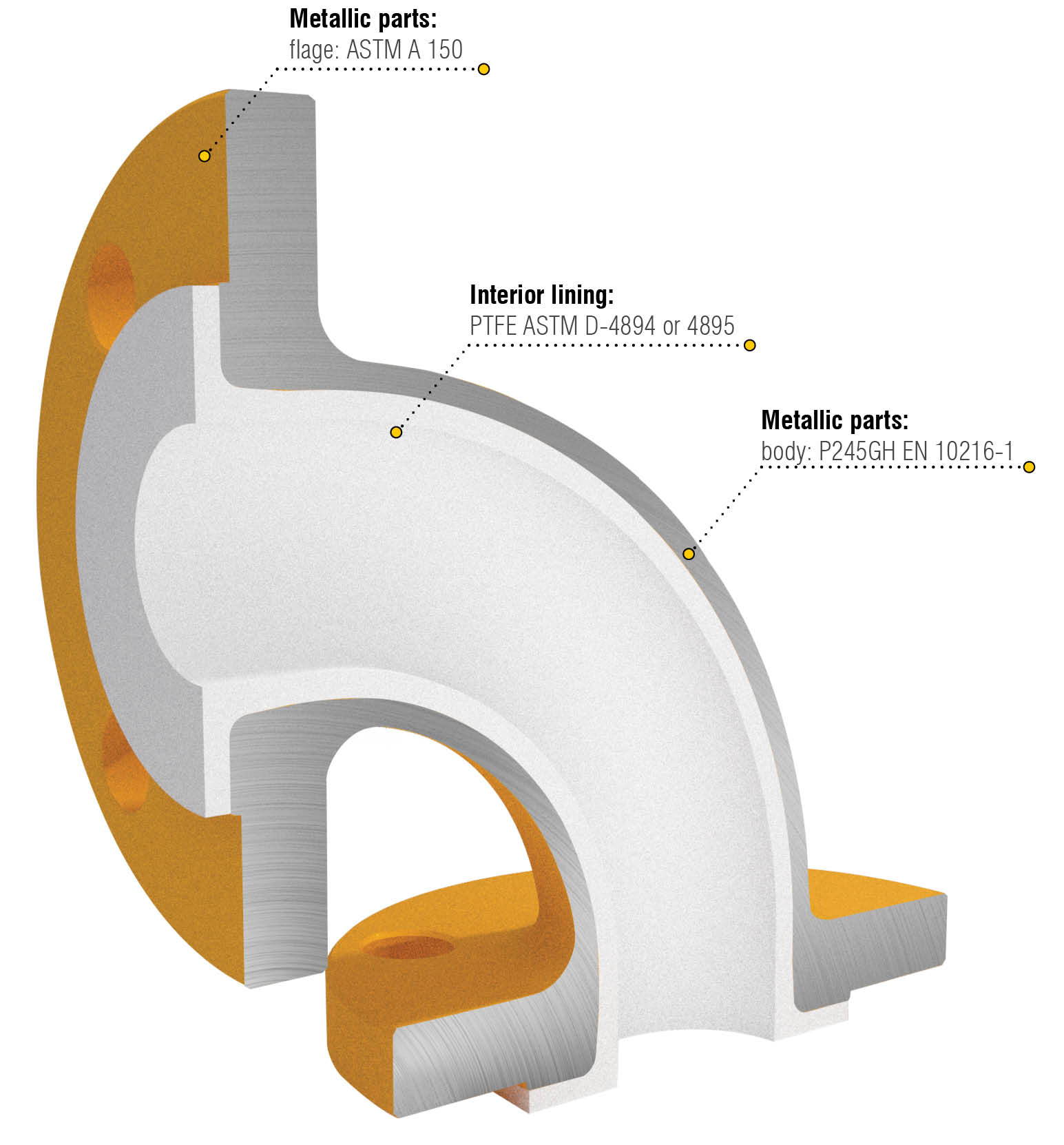

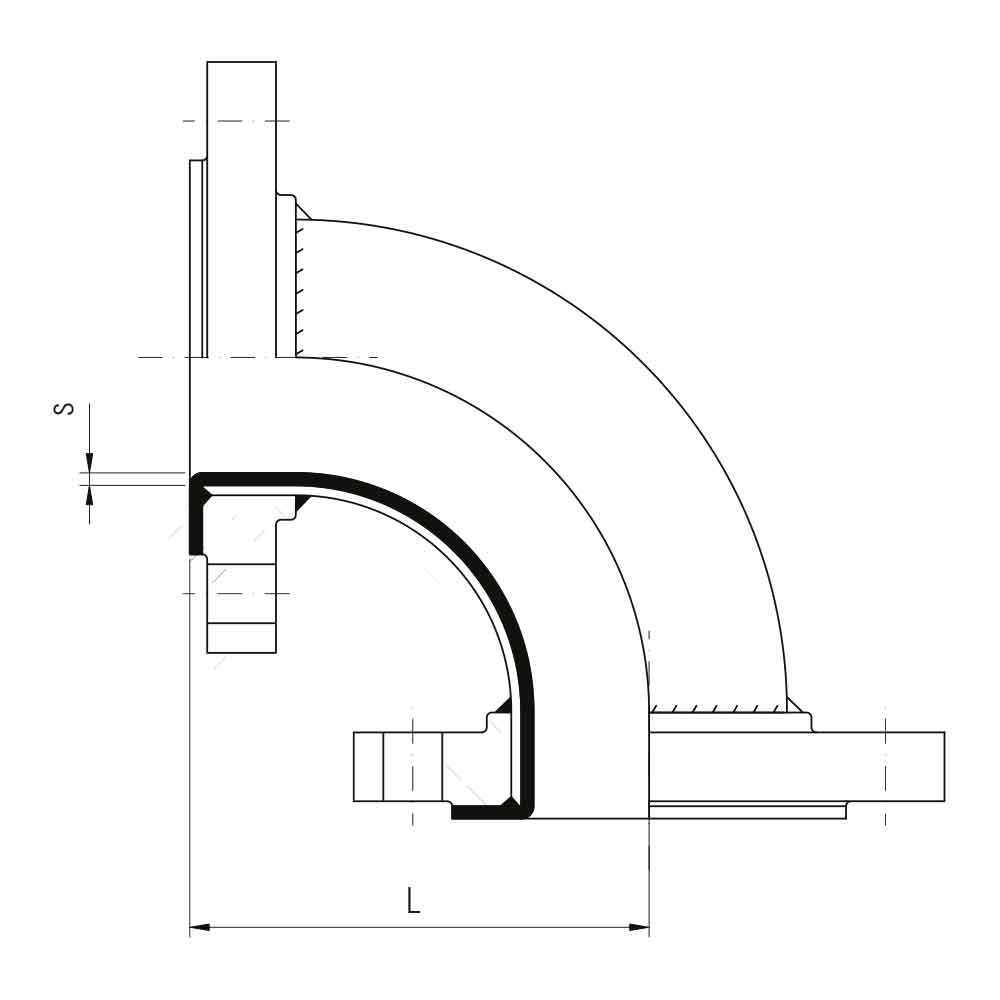

DN L mm s ± 10% mm Weight kg
1/2" 80 3,0 1,5
3/4" 75 3,0 2,1
1" 89 3,0 2,7
1 1/4" 95 3,5 4,0
1 1/2" 102 3,5 4,6
2" 114 4,0 6,4
2 1/2" 127 4,5 9,0
3" 140 5 12
4" 165 5,5 19
5" 190 5,5 22
6" 203 6 36
8" 229 6,5 57
10" 279 7 82
12" 305 7 98
14" 546 7 150
16" 610 7 139
18" 673 7 225
20" 736 7 167
24" 864 7 395
