    Gaskets For Fittings Sms 1145

FLEXILINE base COLORS standard

FLEXILINE Guarnizioni Modifica

Gaskets For Fittings Sms 1145
Data Sheet: C3-106

Gaskets For Fittings Sms 1145




Description

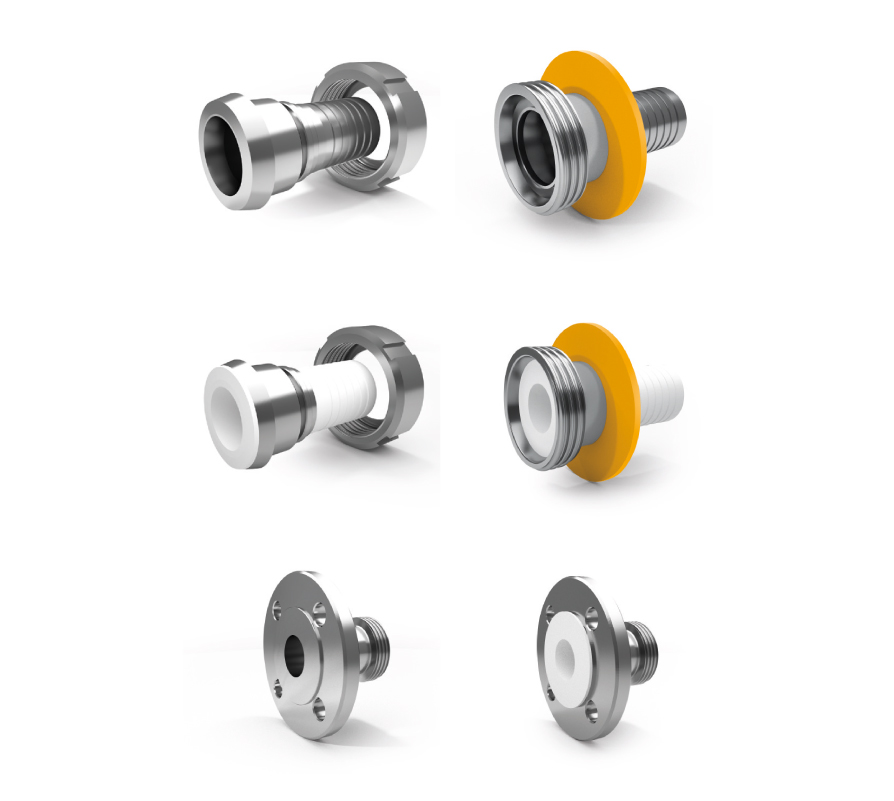

Application examples DIFLEXNella forma specifica guarnizioni in DIFLEX per raccordi tipo SMS 1145
ApplicationsAcids, Strong alkali, Solvents, Catalyzers, Aromatics, Foods, Pharmaceuticals, Chemicals, Petrochemicals, etc.
• Operating temperature: -150° + 260° C
• Working pressure at room temperature: 50 bar

Application examples SILICONNella forma specifica guarnizioni Silicone (VMQ) per raccordi tipo SMS 1145
ApplicationsOils, Fats, Oxidations (oxygen and ozone even hot), Medical Products, Pharmaceuticals, Biologicals, Foods, etc. we can provide special silicones for specific uses.
• Operating temperature: -140° +200° C
• Working pressure at room temperature: 10 bar

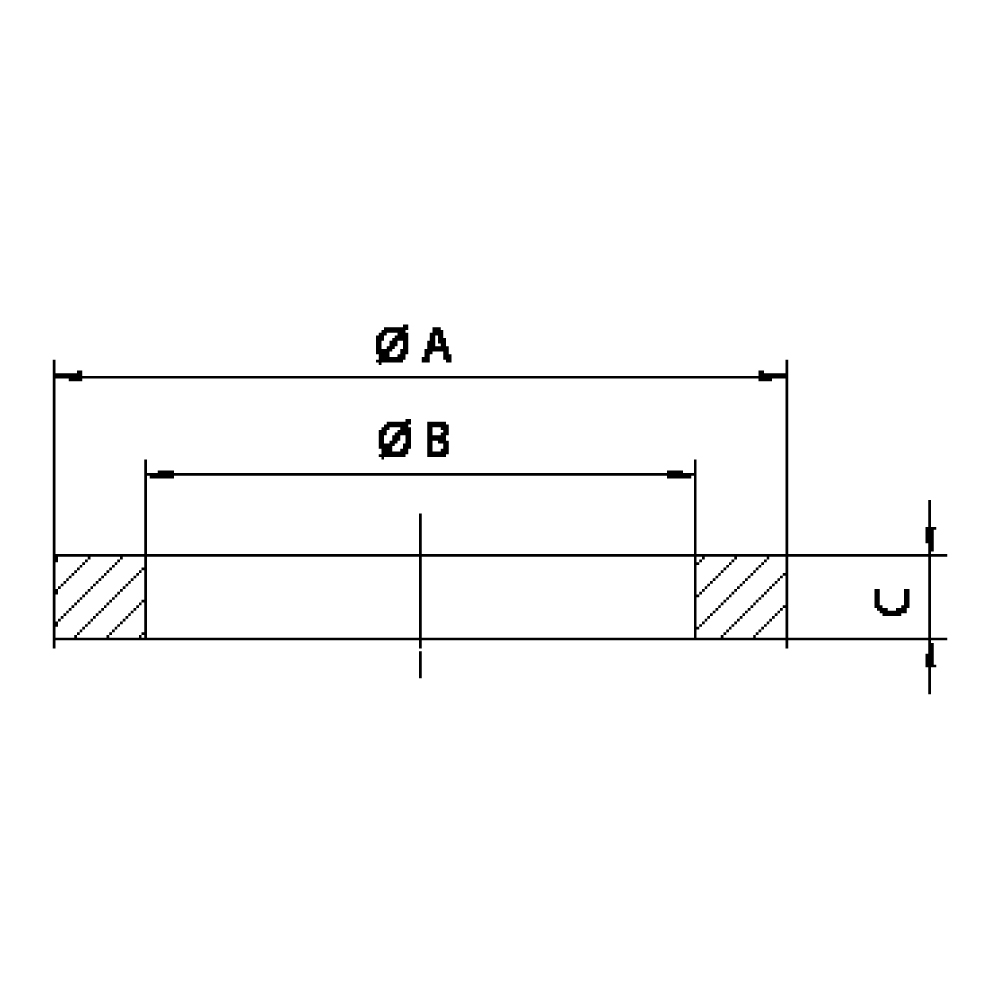

Gaskets dimensions
DN ØA ØB C
25 - 1" 32 25 5,5
40 - 1 ½" 48 36 5,5
50 - 2" 61 51 5,5
65 - 2 ½" 73,5 63,5 5,5
80 - 3" 86 76 5,5
100 - 4" 113,5 102 5,5
