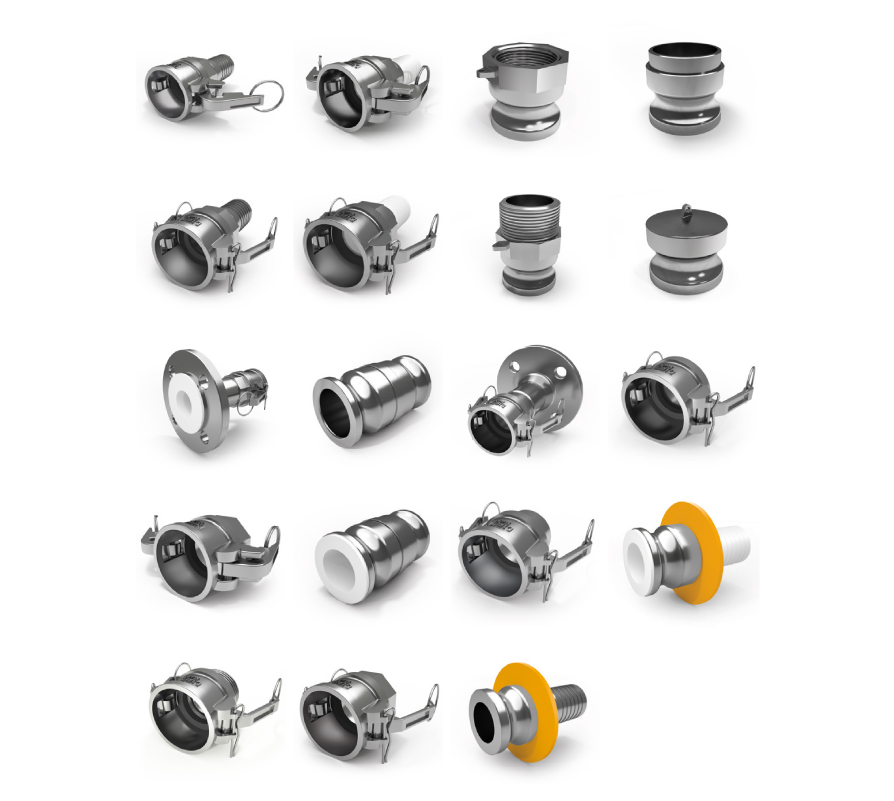

Encapsulate Gaskets For Cam & Groove Fittings: Fep Silicon / Viton® - Pfa Silicon / Viton®
Data Sheet: C3-113

Encapsulate Gaskets For Cam & Groove Fittings: Fep Silicon / Viton® - Pfa Silicon / Viton®




Description

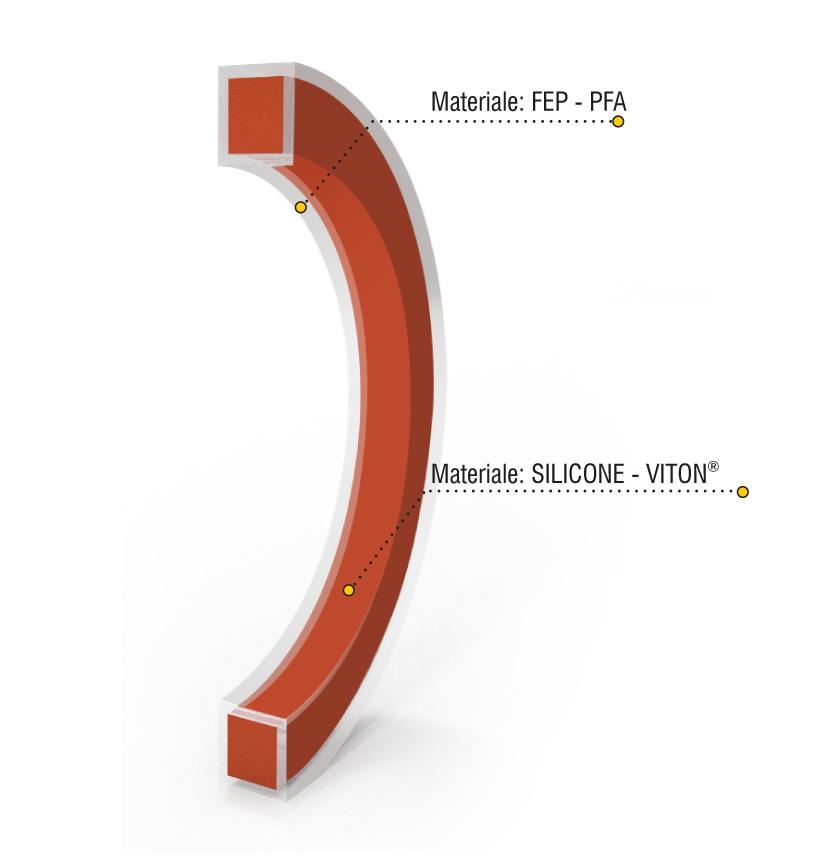

In the specific form the encapsulated gaskets consist of a core of elastomeric perfectly coated fluoropolymer FEP or PFA. Basically the two types of products differ for a different resistance to temperature and abrasion. The inner core is Viton® or Silicone. They are used which require a high chemical resistance and product purity.
Used in Industries
• Chemical.
• Petrochemical.
• Food.
• Pharmaceutical.
Operating temperature FEP lining:
• FEP / Silicon: -60 ° C to + 200
• FEP / Viton®: -20 ° C to + 200
Operating temperature PFA lining:
• PFA / Silicon: -60 ° C to + 260
• PFA / Viton®: -20 ° C to + 200
This type of gasket offers greater resistance to abrasion.

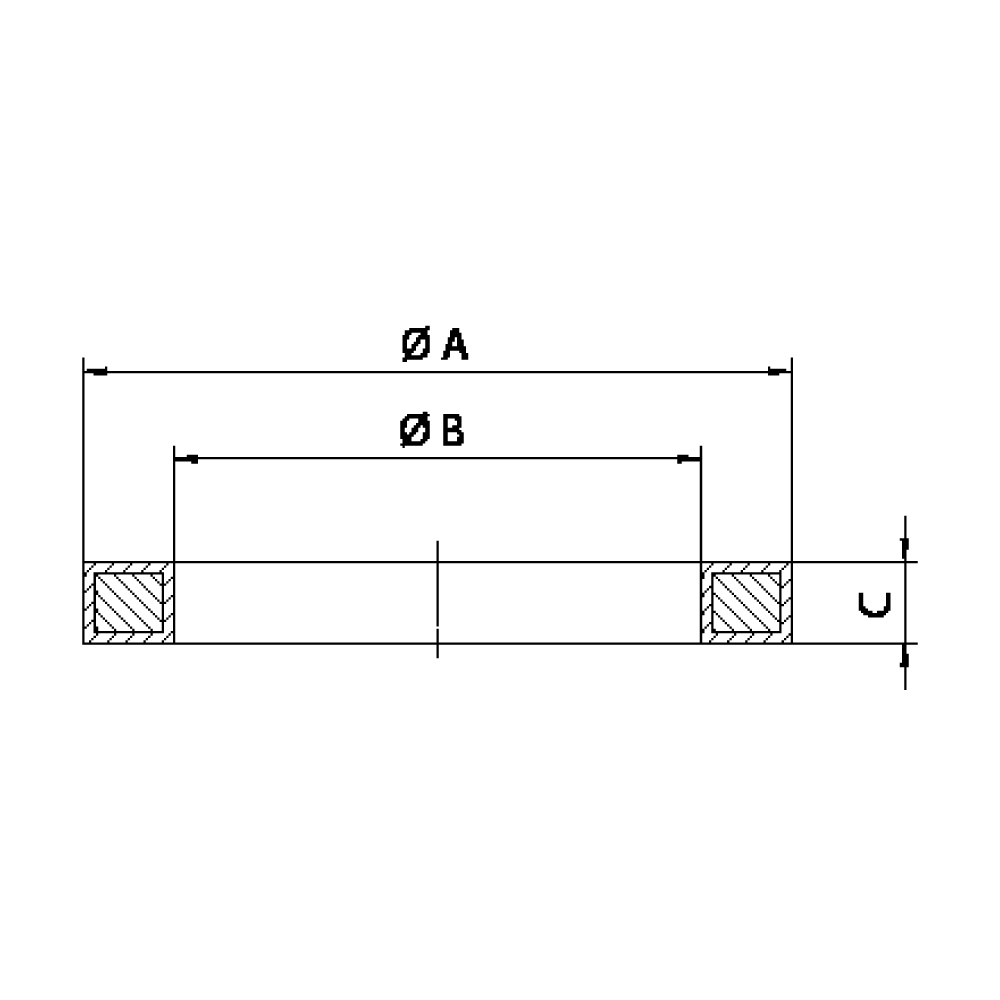

Gaskets dimensions
DN ØA ØB C
15 - ½" 26 17 3,96
20 - ¾" 35 22 5,53
25 - 1" 40 27 6,35
32 - 1 ¼" 49 34 6,35
40 - 1 ½" 55 41 6,35
50 - 2" 66 51 6,35
65 - 2 ½" 79 60 6,35
80 - 3" 94 76 6,35
100 - 4" 123 102 6,35
