Gaskets For Cam & Groove Fittings
Data Sheet: C3-111

Gaskets For Cam & Groove Fittings




Description

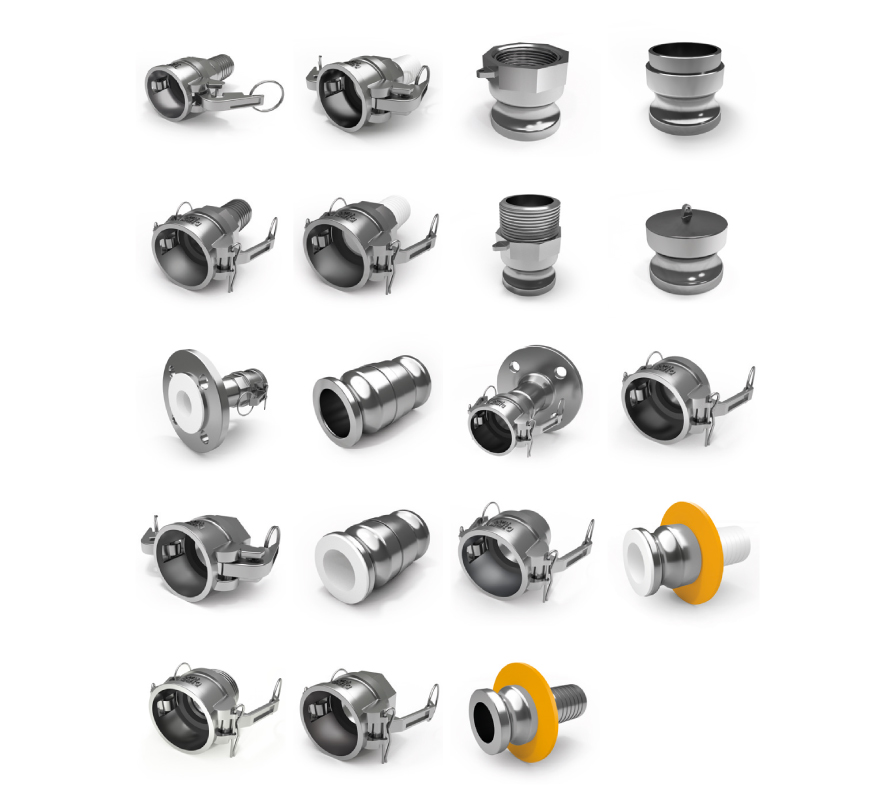

Application examplesIIn specific design DIFLEX gasket for CAM & GROVE fittings .

ApplicationsAcids, Strong alkali, Solvents, Catalyzers, Aromatics, Foods, Pharmaceuticals, Chemicals, Petrochemicals, etc.
• Operating temperature: -150° +260° C
• Working pressure at room temperature: 80 bar
• PxT: 12.000 (bar x C°) - pH: 0 ÷ 14
Purity of product for Diflex gaskets
DIFLEX can be used, without contra-indications, in the production of basic commodities

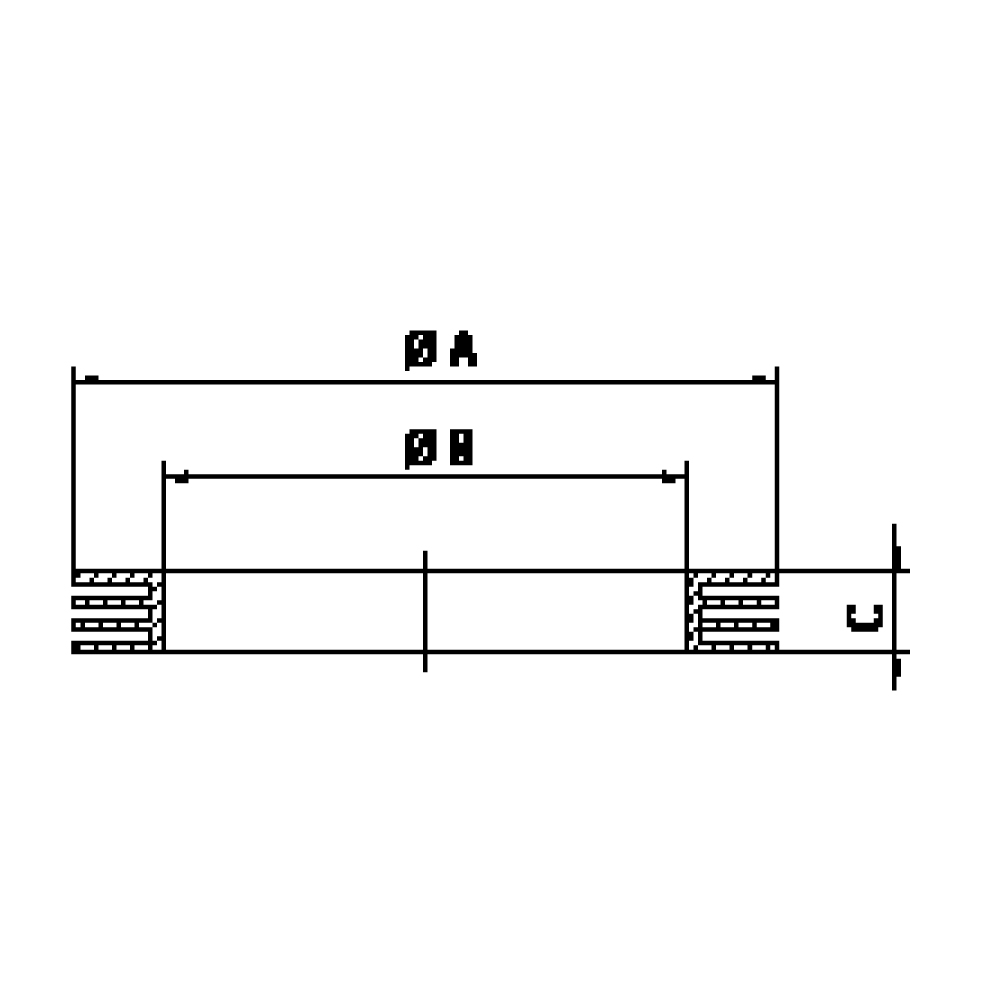

Gaskets dimensions
DN ØA ØB C
15 - ½" 26 17 3,96
20 - ¾" 35 22 5,53
25 - 1" 40 27 6,35
32 - 1 ¼" 49 34 6,35
40 - 1 ½" 55 41 6,35
50 - 2" 66 51 6,35
65 - 2 ½" 79 60 6,35
80 - 3" 94 76 6,35
100 - 4" 123 102 6,35
