    PTFE - PFA Lined Eccentric Reducers

DIFLINE COLORS

PTFE - PFA Lined Eccentric Reducers
Data Sheet: A2-54

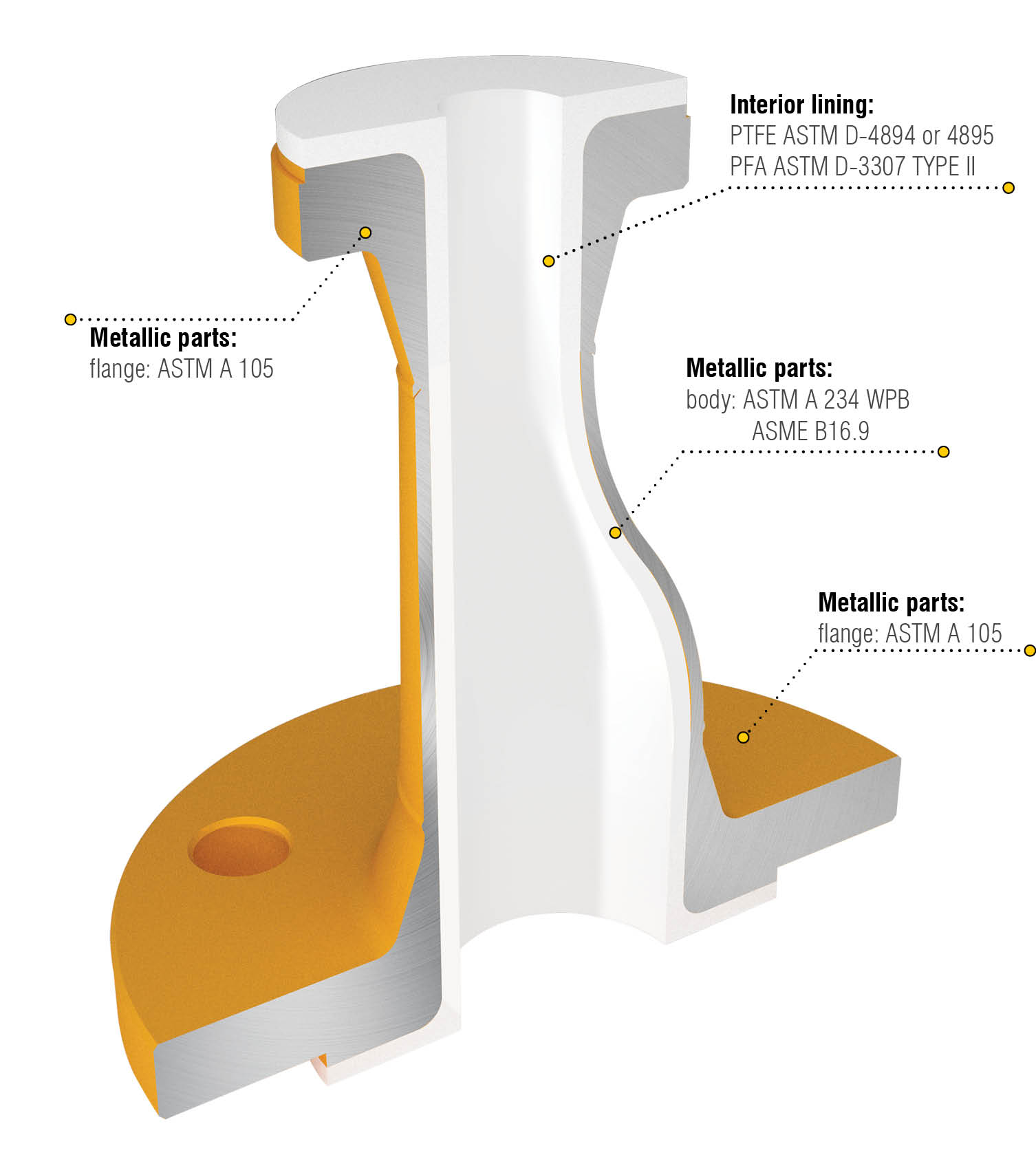

PTFE - PFA Lined Eccentric Reducers

Design ASME B16.5 Class 150


Available on request
Approvals and
Certifications
Quality and
Special Tests
Engineering
Services
Special
Supply
Stainless Steel
304L/316L
components
External
Finiture

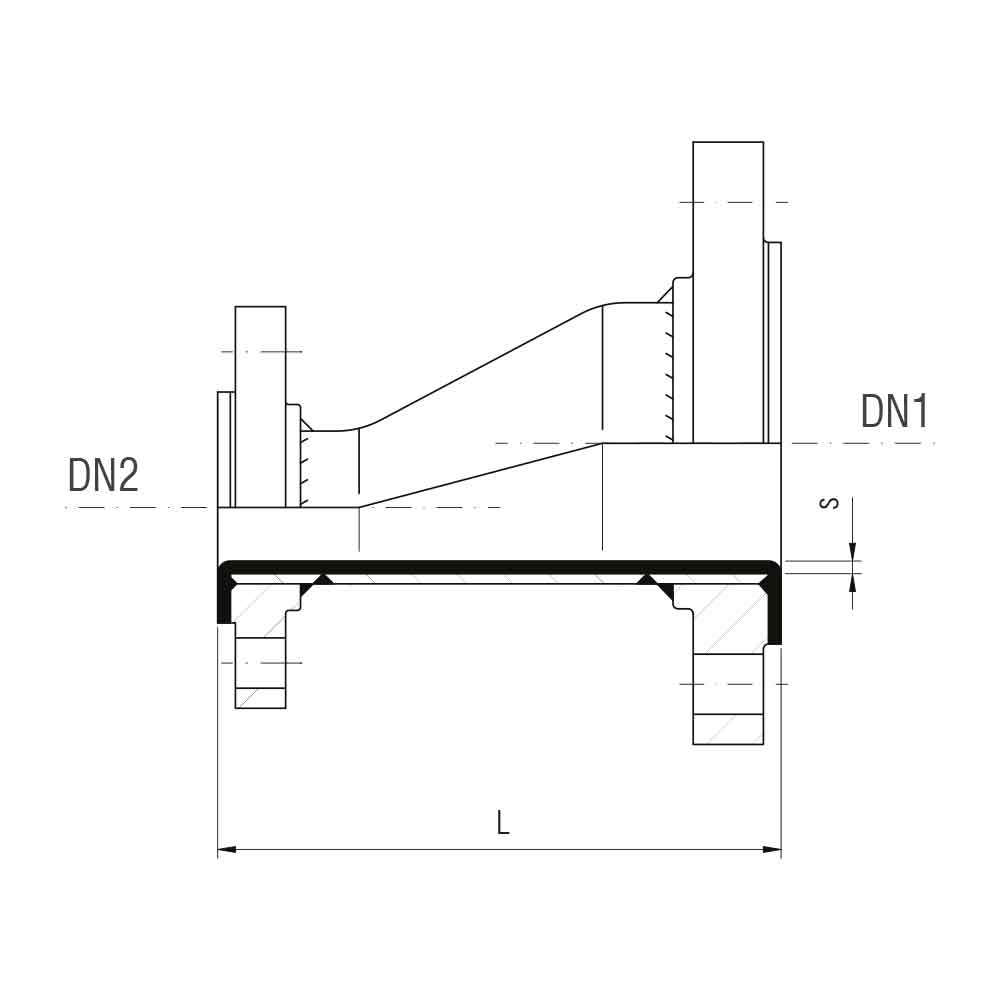

DN1 DN2 L mm s ± 10% mm Weight kg
3/4" 1/2" 114 2 2,1
1" 1/2"
3/4"
114 3 2,4
2,3
1 1/4" 3/4"
1
114 3 2,8
3,0
1 1/2" 3/4"
1"
1 1/4"
114 3 3,1
3,3
3,8
2" 1 1/4"
1 1/2"
    4,3
4,8
2 1/2" 1 1/2"
2"
140 4 6,4
7,0
3"

1 1/2"
2"
2 1/2"

152 4 6,3
6,9
7,5
4" 2"
3"
178 4,5 9,9
12,3
5" 3"
4"
203 4,5 12,8
15,0
6"

4"
5"

229 5/4,5
5
18,3
20,1
8" 4"
6"
279 6 22,1
25,2
10" 6"
8"
305 6,5 37,8
44,8
12" 8"
10"
356 6,5 48,0
52,6
14" 10"
12"
406 6,5 73,6
80,0
16" 12"
14"
457 6,5 105
115
18" 14"
16"
483 6,5 148
157
20" 16"
18"
508 6,5 210
218
