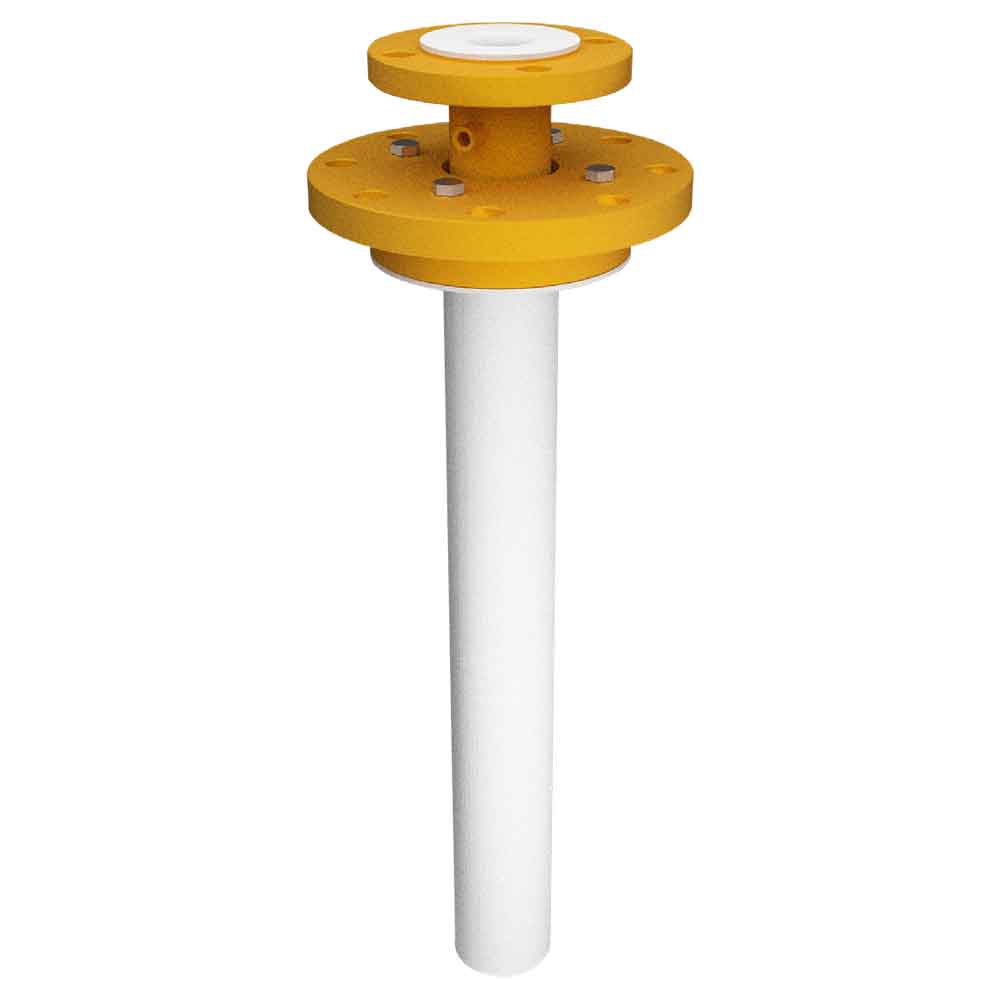

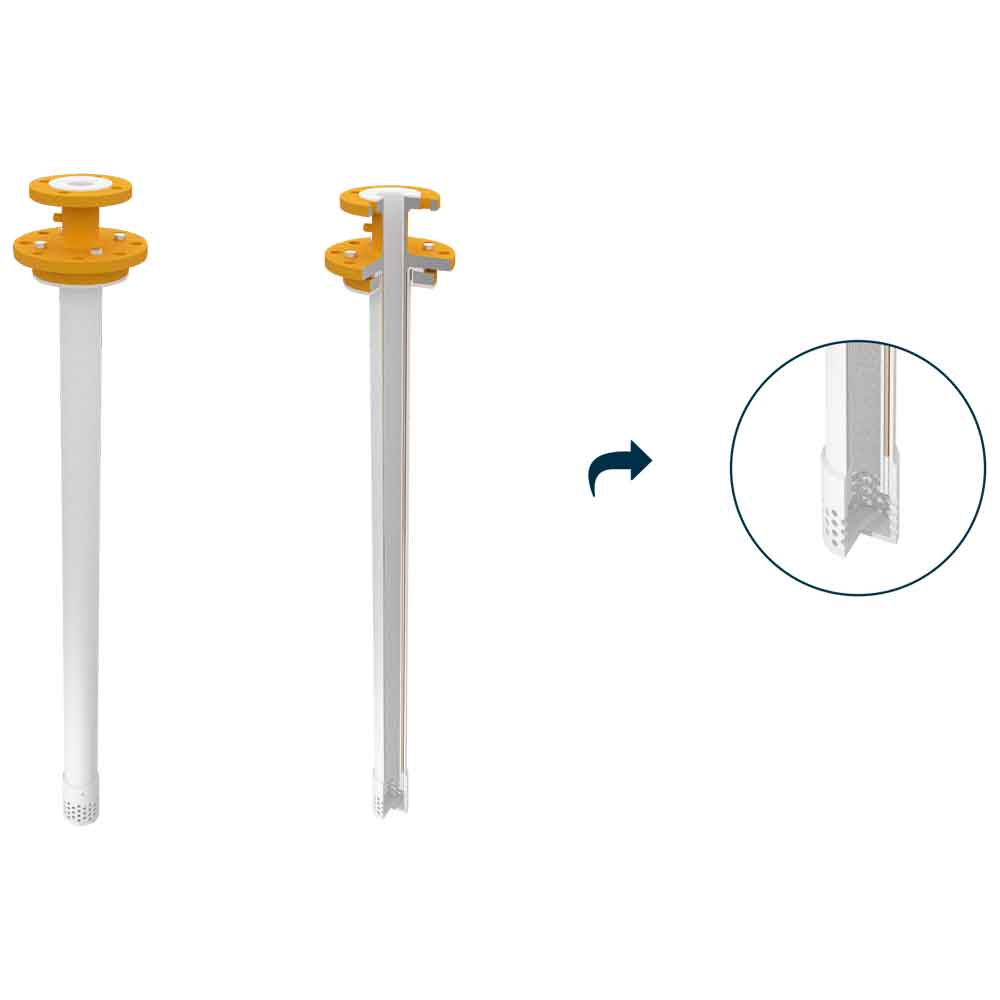

    PTFE Lined Dip Pipe

DIFLINE COLORS

PTFE Lined Dip Pipe
Data Sheet: A2-67

PTFE Lined Dip Pipe

Design ASME B16.5 Class 150


Available on request

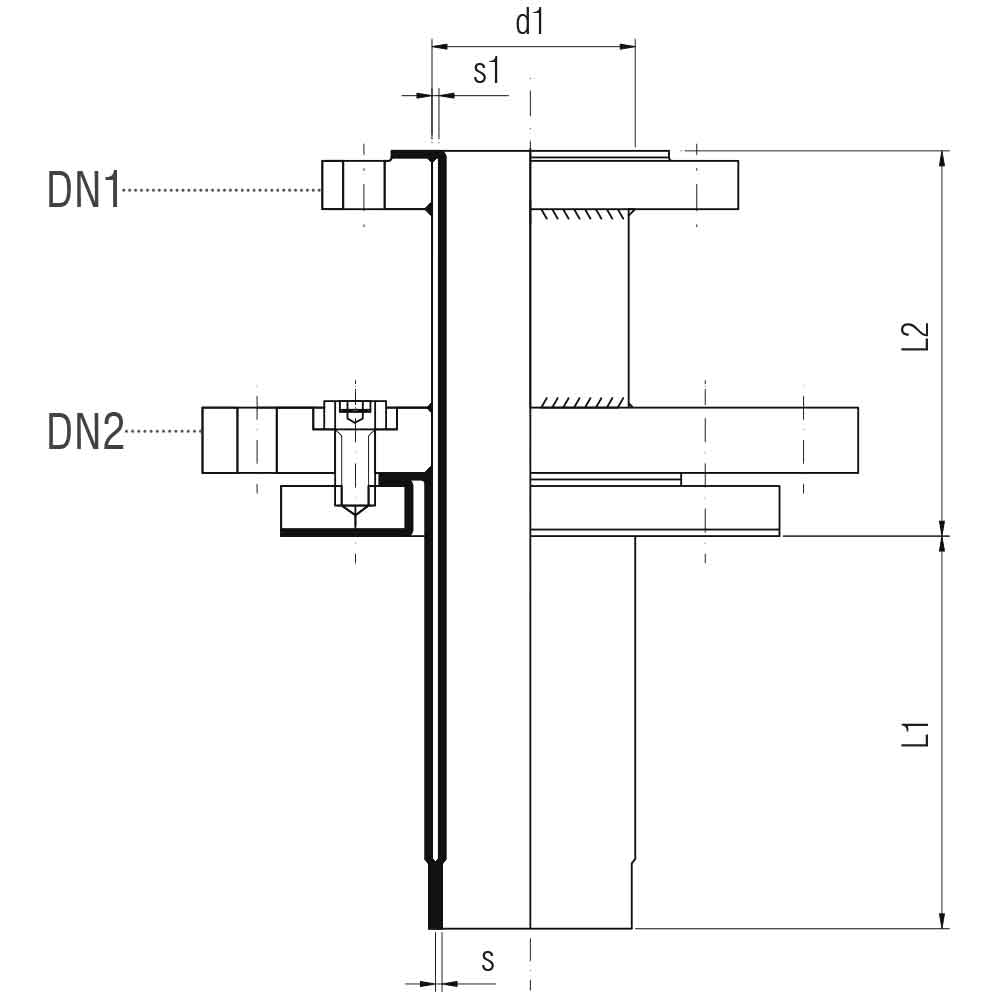

DN1 DN2 L1 max. ± 25 mm L2 max. ±5 mm s Weight kg/m
1/2" a richiesta 2500 150 3,0 1,3
3/4" 2500 150 3,0 1,5
1" 2500 150 3,0 2,0
1 1/4" 2500 150 3,5 2,8
1 1/2" 2500 150 3,5 3,4
2" 2500 150 4,0 4,8
2 1/2" 2500 150 4,5 6,4
3" 2500 150 5,0 8,2
4" 2500 150 5,5 11,5
5" 2500 150 5,5 18,0
6" 2500 150 6,0 28,7
8" 2500 150 6,5 40,0
10" 2500 150 7,0 57,0
12" 2500 200 7,0 76,0
16" 2500 200 7,0 120
