Data Sheet: C3-101

Diflex Flate Gaskets For En 1092-01 And Ansi




Description

Application examples

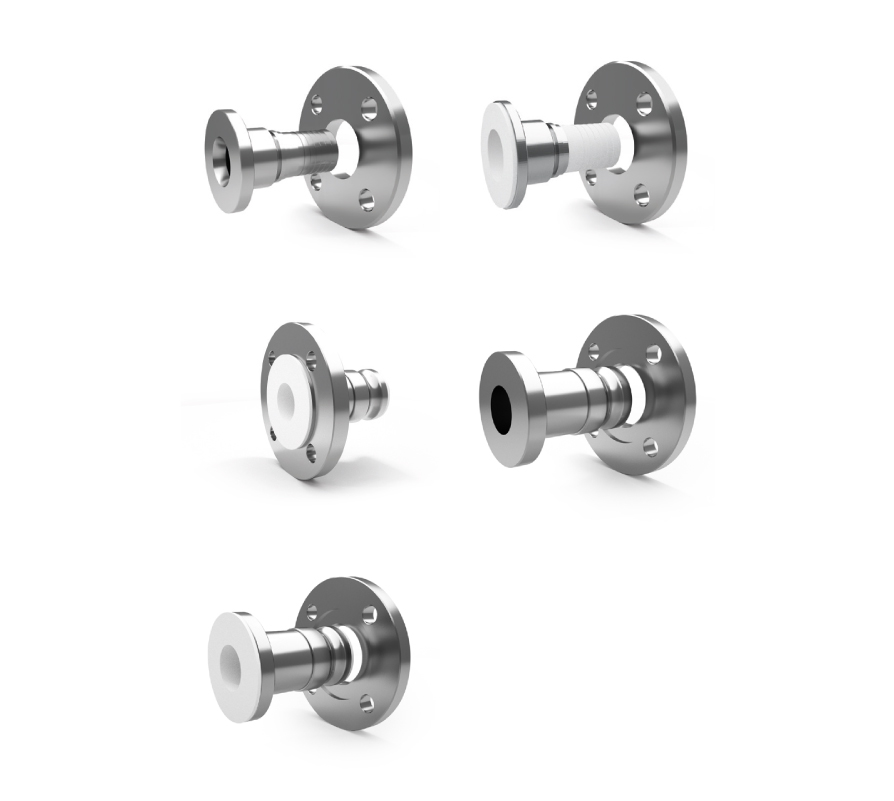

• flat gaskets for flanges of any type, with or without grooves
• profiled flat gaskets, with chamber, for rapid assembly etc.
Applications
Acids, Strong alkali, Solvents, Catalyzers, Aromatics, etc. Food, Pharmaceutical, Chemical, Petrochemical, etc.
• Operating temperature: -150° +260° C • Working pressure at room temperature: 80 bar • PxT: 12.000 (bar x C°) - pH: 0 ÷ 14
Purity of product for Diflex gaskets
DIFLEX can be used, without contra-indications, in the production of basic commodities


Gaskets dimensions
DN Ø A DIN Ø A ANSI ØB C
15 - ½" 45 35 15 3,96
20 - ¾" 58 43 20 5,53
25 - 1" 68 51 25 6,35
32 - 1 ¼" 78 64 32 6,35
40 - 1 ½" 88 73 40 6,35
50 - 2" 102 92 50 6,35
65 - 2 ½" 122 105 65 6,35
80 - 3" 138 127 80 6,35
100 - 4" 158 158 100 6,35
