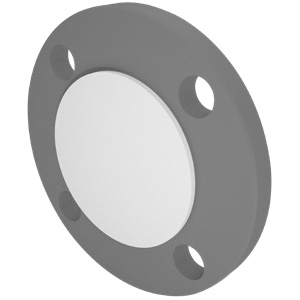

    PTFE Lined Blind Flange

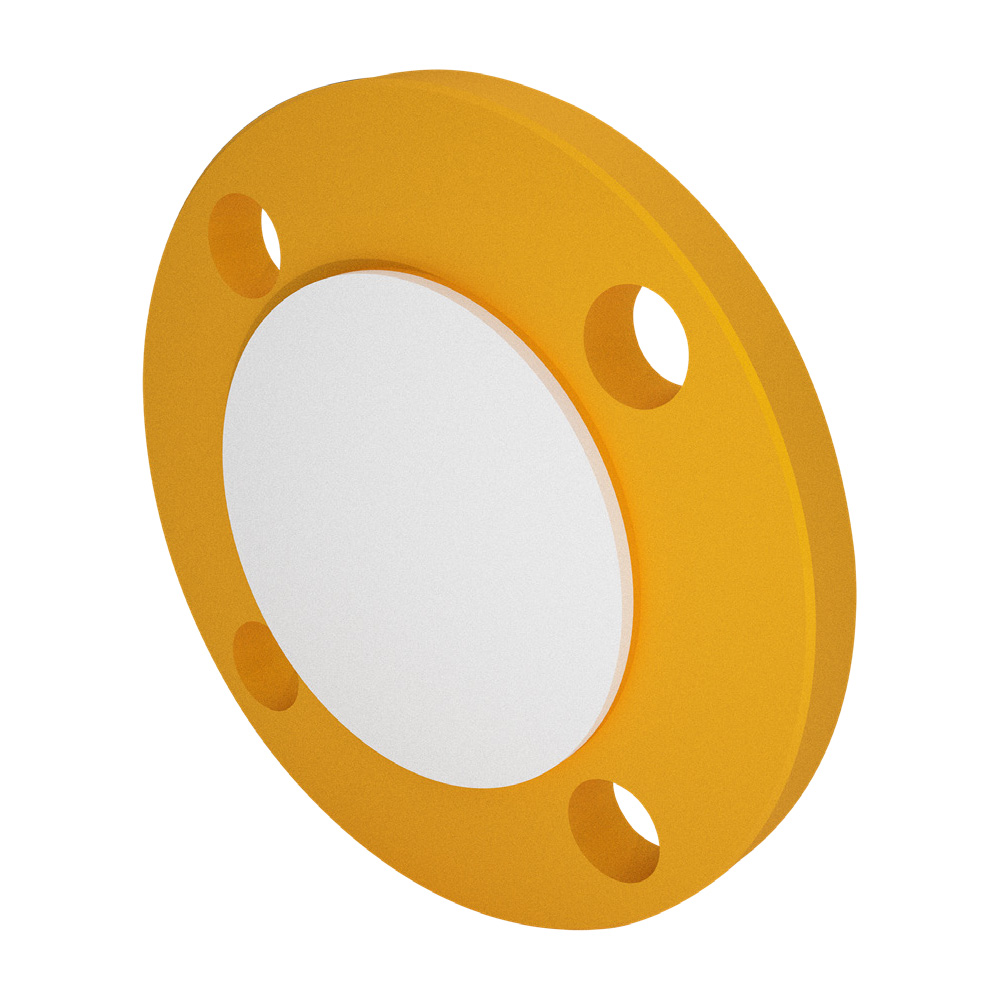

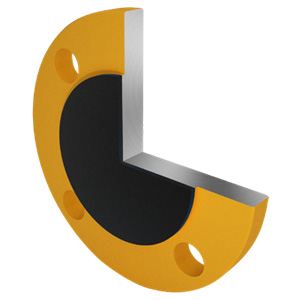

DIFLINE COLORS

PTFE Lined Blind Flange
Data Sheet: D2-48

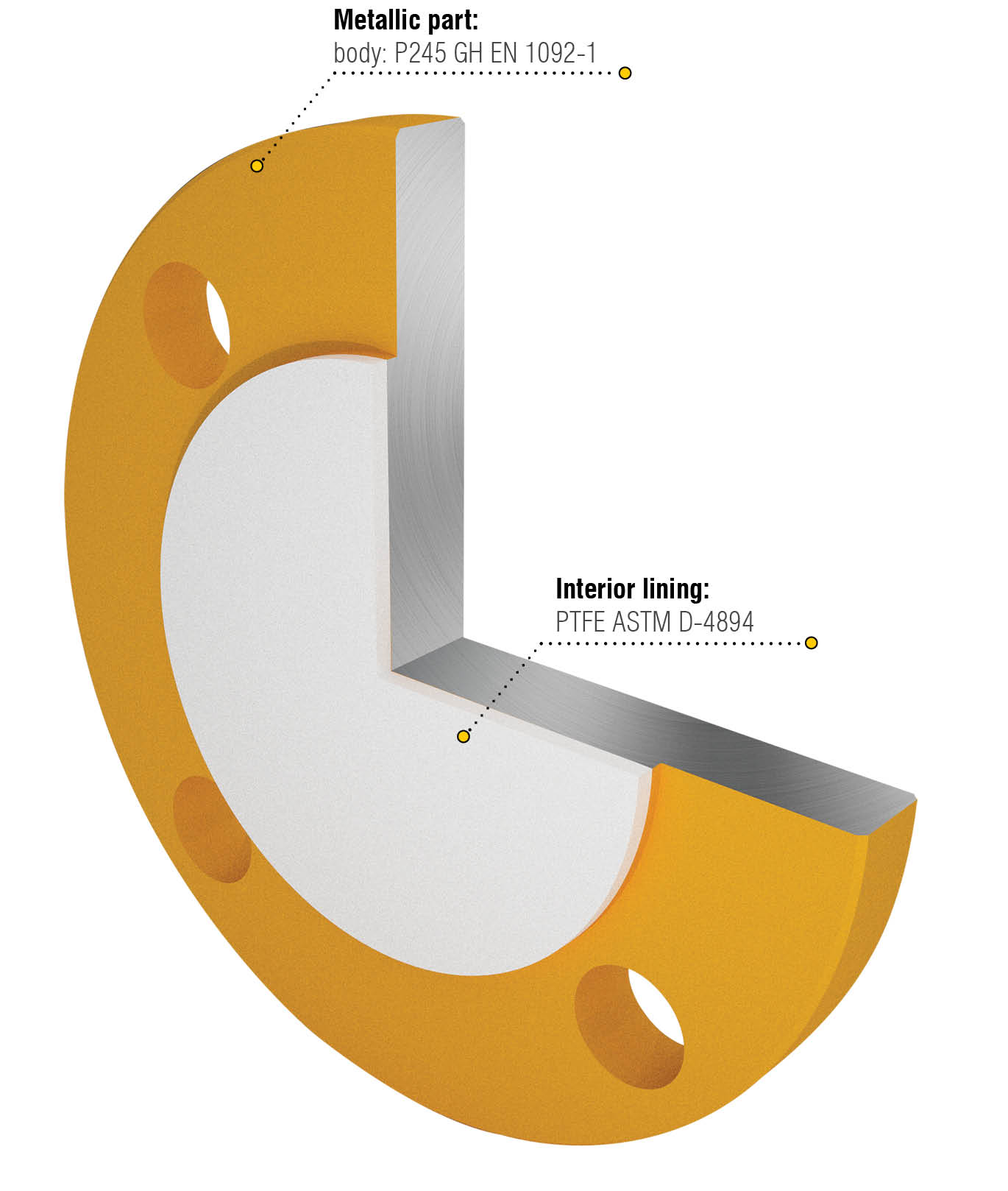

PTFE Lined Blind Flange

Design DIN 2448/2874 - Certified - 2014/68/EU (PED)


Available on request
Approvals and
Certifications
Quality and
Special Tests
Engineering
Services
Special
Supply
Stainless Steel
304L/316L
components
External
Finiture

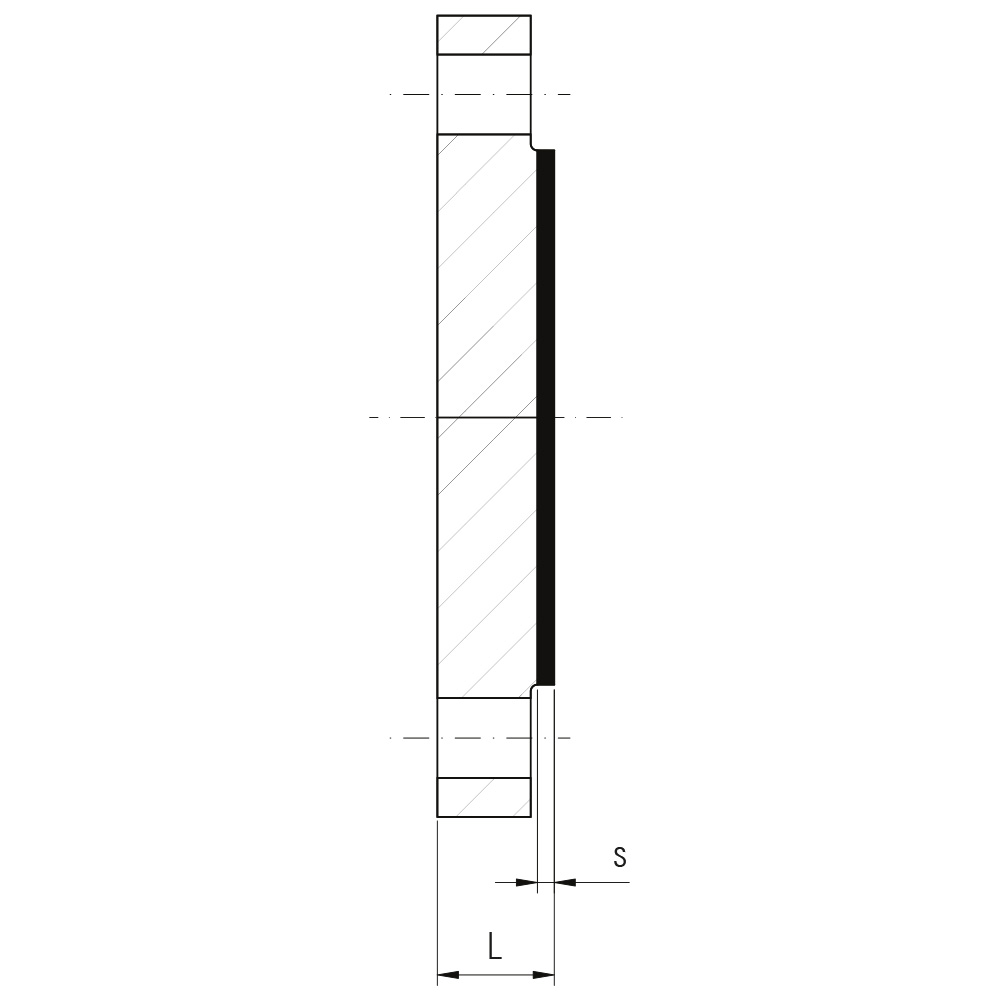

DN L mm s ± 10% mm Weight kg
15 17 2,5 0,8
20 17 3,0 0,9
25 20 3,0 1,2
32 20 3,0 1,8
40 20 3,0 2,1
50 22 3,0 3,0
65 22 3,0 4,0
80 24 3,5 5
100 24 4,5 6,0
125 27 4,5 9,1
150 27 5,0 11,8
200 29 5,0 18
250 31 5,0 26
300 31 5,0 35
350 31 5,0 45
400 32 6,0 60
450 32 6,0 70
500 34 6 85
Technical Specifications of the Difline Products
Pipe dimensions e
flanges according to DIN
Fittings dimensions
according to DIN
Operational
conditions
Power
Tightening
Finish
Packaging marking
Resistance table
chemical materials*
