Data Sheet: C3-105

Gaskets For Fittings Din 11851




Description

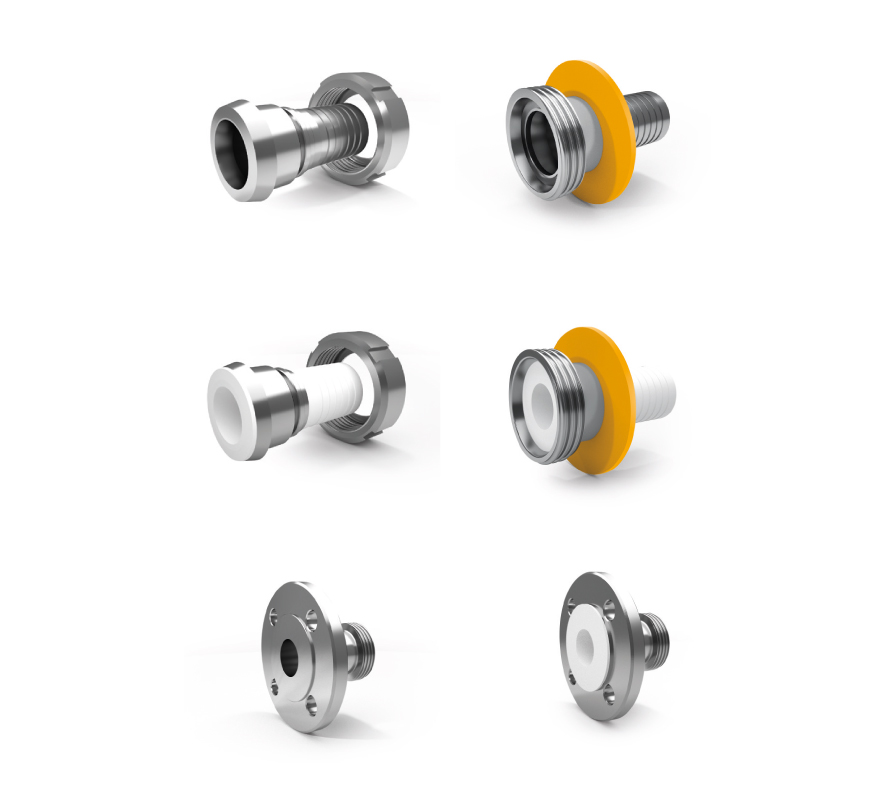

Application examples DIFLEXDIFLEX gasket for type DIN 11851 fittings
ApplicationsAcids, Strong alkali, Solvents, Catalyzers, Aromatics, Foods, Pharmaceuticals, Chemicals, Petrochemicals, etc.
• Operating temperature: -150° + 260° C
• Working pressure at room temperature: 50 bar

Application examples SILICONDIFLEX gasket for type DIN 11851 fittings
ApplicationsOils, Fats, Oxidations (oxygen and ozone even hot), Medical Products, Pharmaceuticals, Biologicals, Foods, etc. we can provide special silicones for specific uses.
• Operating temperature: -140° +200° C
• Working pressure at room temperature: 10 bar

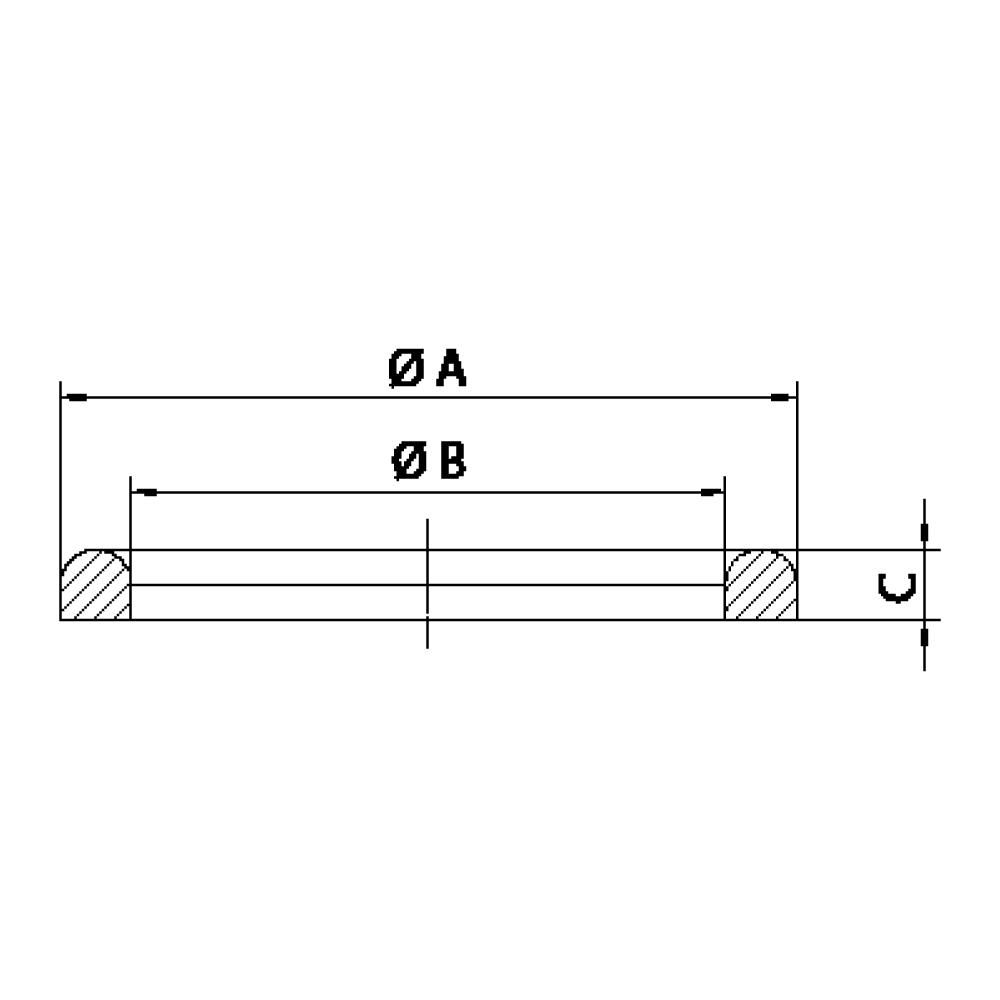

Gaskets dimensions
DN ØA ØB C
15 - ½" 26 18 4,5
20 - ¾" 33 23 4,5
25 - 1" 40 30 5
32 - 1 ¼" 46 36 5
40 - 1 ½" 52 42 5
50 - 2" 64 54 5
65 - 2 ½" 81 71 5
80 - 3" 95 85 5
100 - 4" 114 104 5
