AISI 316L PFA Lined LBS FF
- Data Sheet: C2-83
AISI 316L PFA Lined LBS FF EN 14420-7:2004 CAM & GROOVE Diflon F10
Fitting
Description

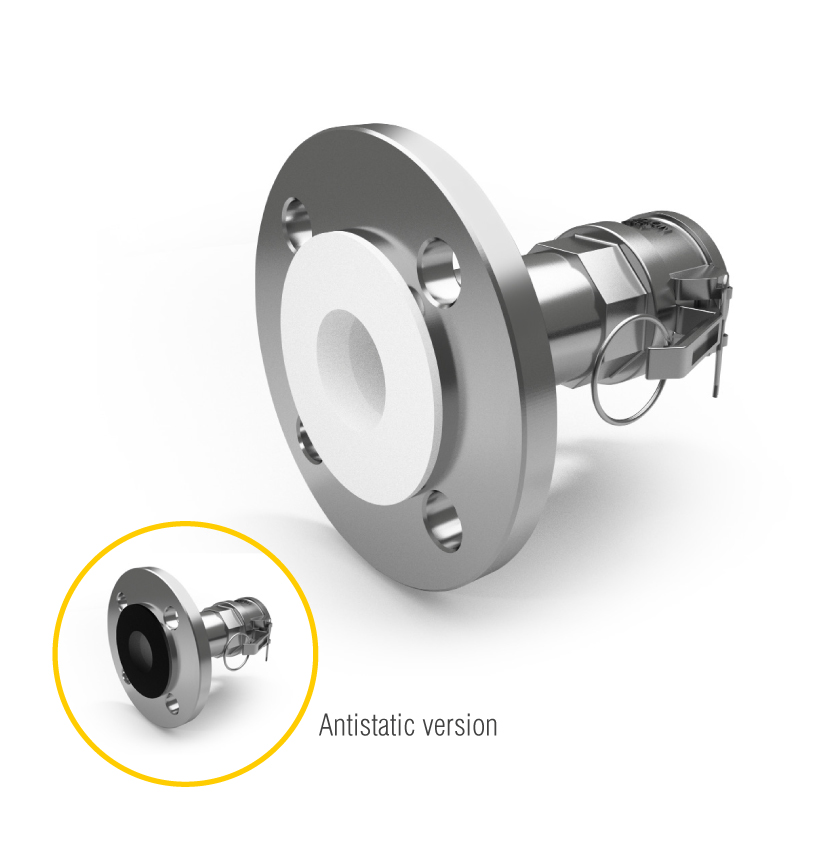

| The fast F10 fitting is used in chemical, pharmaceutical and food industries. The CELERITY in connecting hoses, to equipments and plants is what distinguishes this type of retainer from the other ones. The standard construction material is AISI 316L/PFA. The inner lining ensures resistance against nearly all chemicals, pH 0÷14, design temperature -40 °C ÷ 200 °C. The fitting flange is made according to the Standard Specification required by the customer. |

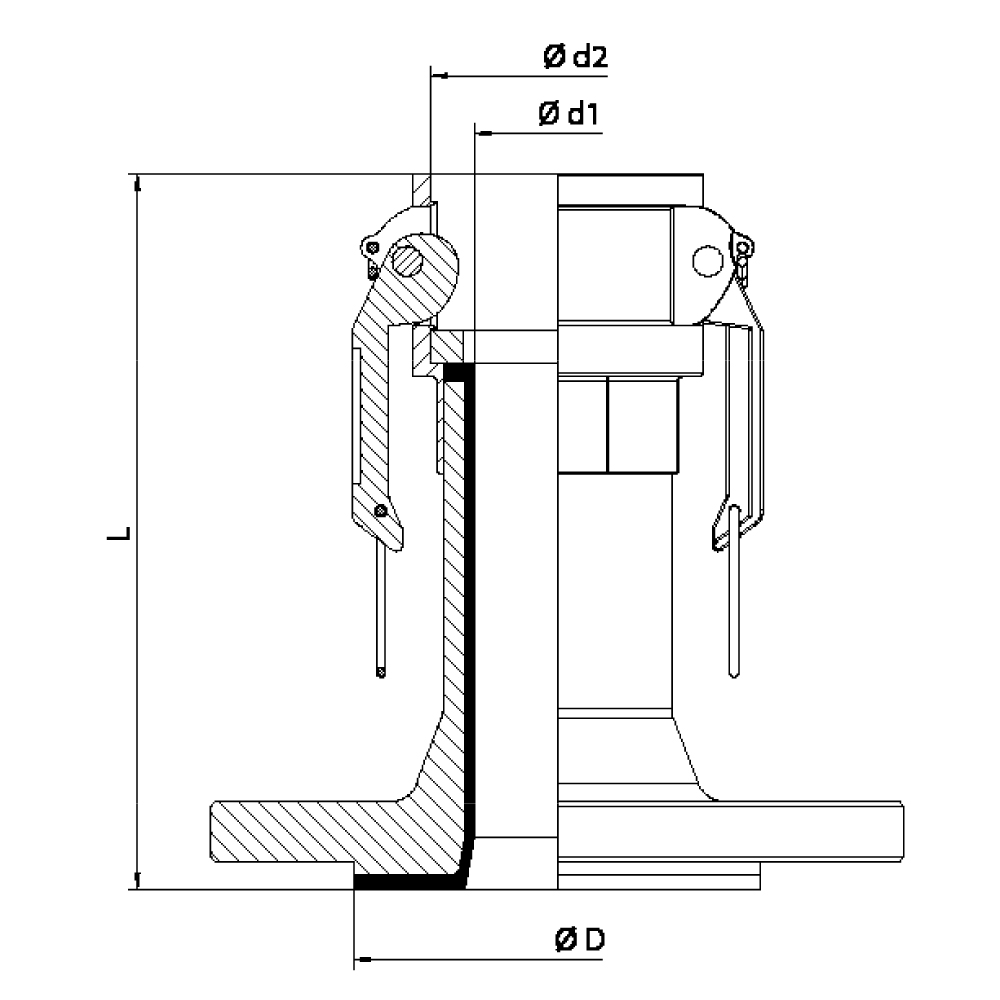

| DN | L | Ø D DIN | Ø D ANSI | Ø d1 | Ø d2 |
|---|---|---|---|---|---|
| 20 - ¾" | 92 | 58 | 43 | 17 | 30 |
| 25 - 1" | 103 | 68 | 51 | 23 | 37,5 |
| 32 - 1 ¼" | 113 | 78 | 64 | 32 | 45,5 |
| 40 - 1 ½" | 117 | 88 | 73 | 38 | 54 |
| 50 - 2" | 125 | 102 | 92 | 49 | 64 |
| 65 - 2 ½" | 133 | 122 | 105 | 68 | 76,5 |
| 80 - 3" | 144 | 138 | 127 | 78 | 92 |
| 100 - 4" | 150 | 158 | 158 | 102 | 121 |
