AISI 316L DIN 11851 Male Retainer
- Data Sheet: C2-57

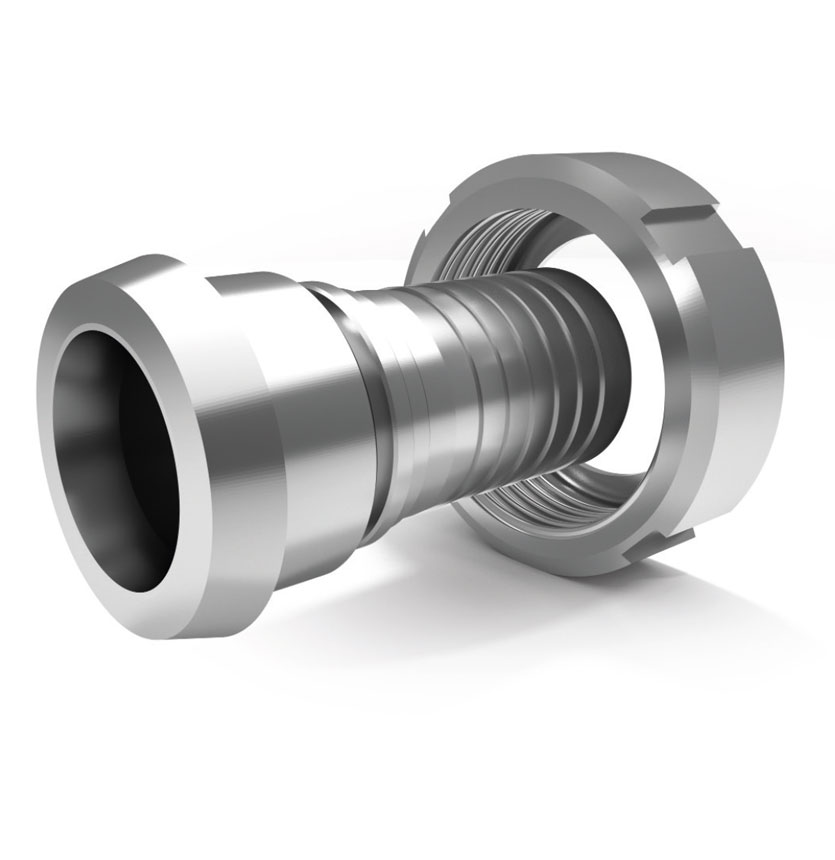

AISI 316L DIN 11851 Male Retainer - Diflon B1
Fitting
Description
| The fitting is supplied without ferrule and it is used in chemicals and food industries to connect hoses to equipments and plants in a quick and safety way. Standard construction material is AISI 316L. The DIN 405 threaded ferrule according to the Standard DIN 11851 can be supplied in AISI 304L and AISI 316L. |

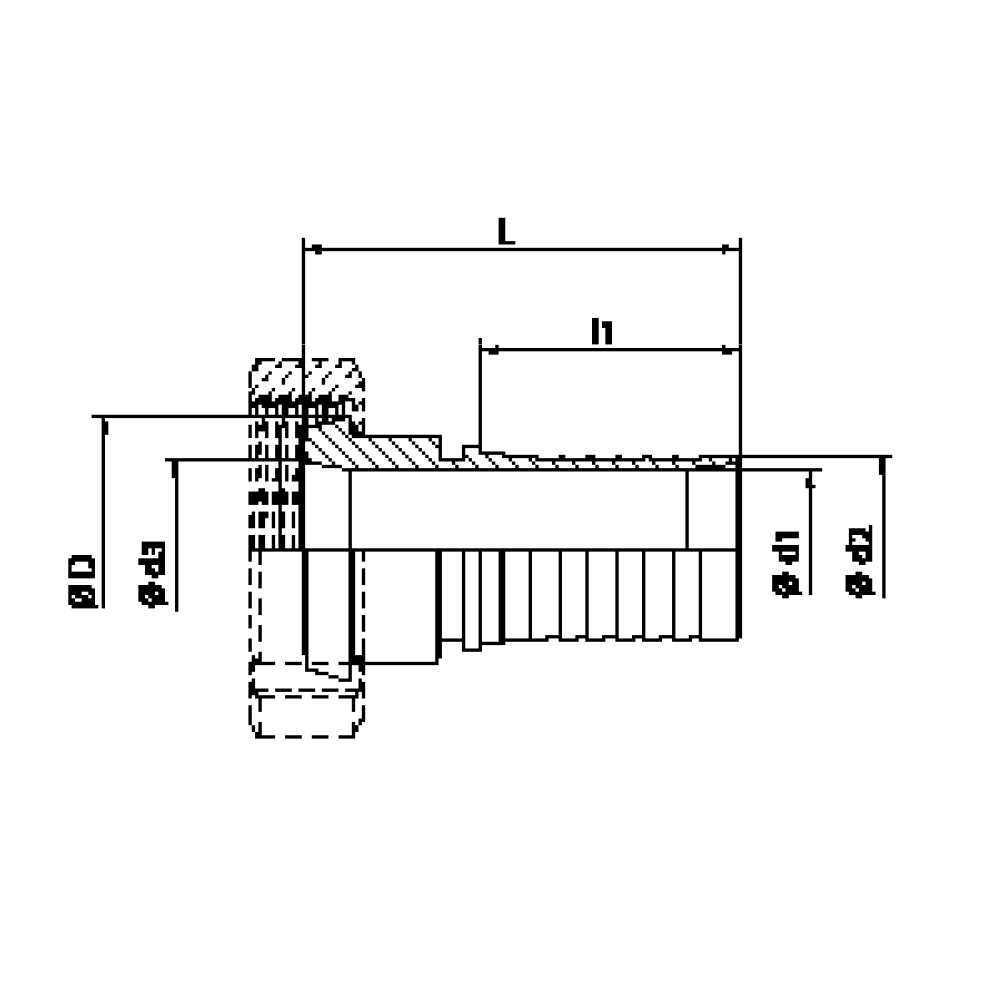

| DN | L | l1 | ØD | Ø d1 | Ø d2 | Ø d3 |
|---|---|---|---|---|---|---|
| 15 - ½" | 55 | 30 | 28 | 9 | 13 | 15 |
| 20 - ¾" | 75 | 31 | 36 | 15 | 19,2 | 20 |
| 25 - 1" | 75 | 34 | 44 | 21 | 25,7 | 26 |
| 32 - 1 ¼" | 75 | 40 | 50 | 28 | 32,4 | 32 |
| 40 - 1 ½" | 80 | 51 | 56 | 34 | 38,5 | 38 |
| 50 - 2" | 85 | 62 | 68 | 46 | 51 | 50 |
| 65 - 2 ½" | 95 | 68 | 86 | 59 | 64 | 66 |
| 80 - 3" | 120 | 81 | 100 | 69 | 75 | 80 |
| 100 - 4" | 130 | 92 | 121 | 96 | 101 | 100 |
