AISI 316L PFA Lined DIN 11851 Female Flange Connection
- Data Sheet: C2-62

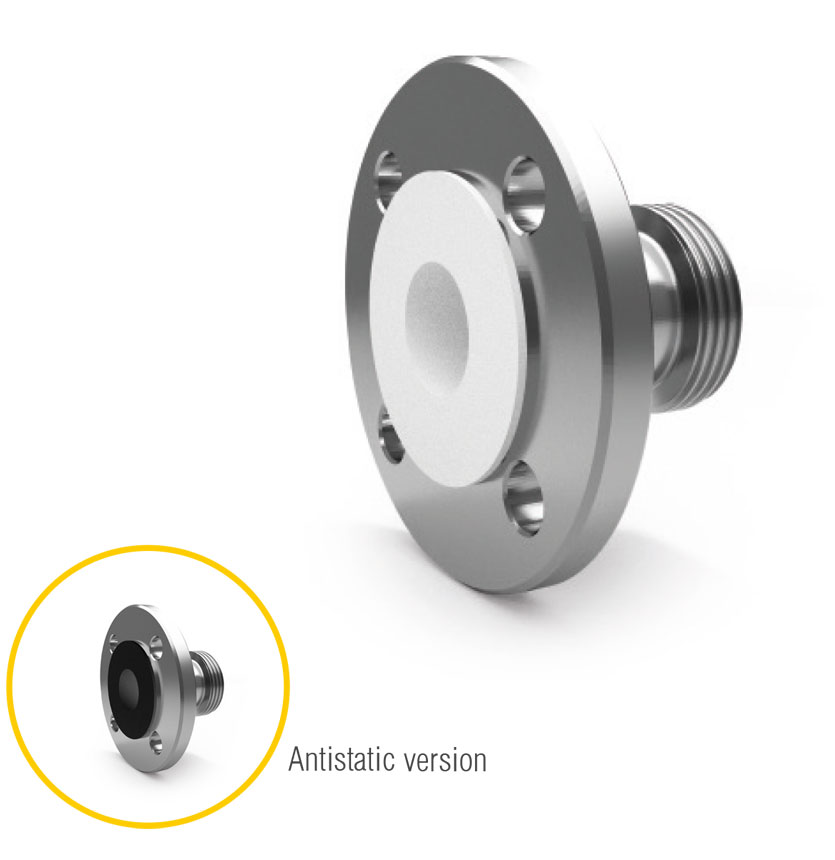

AISI 316L PFA Lined DIN 11851 Female Flange Connection Diflon B6
Fitting
Description
| The fitting is used in chemicals and food industries to connect hoses to equipments and plants. Standard construction material is AISI 316L/PFA. It is DIN 405 threaded. The inner lining ensures resistance against nearly all chemicals, pH 0÷14, design temperature -40 °C ÷ 200 °C. The flange is made according to the Standard Specification required by the customer. |

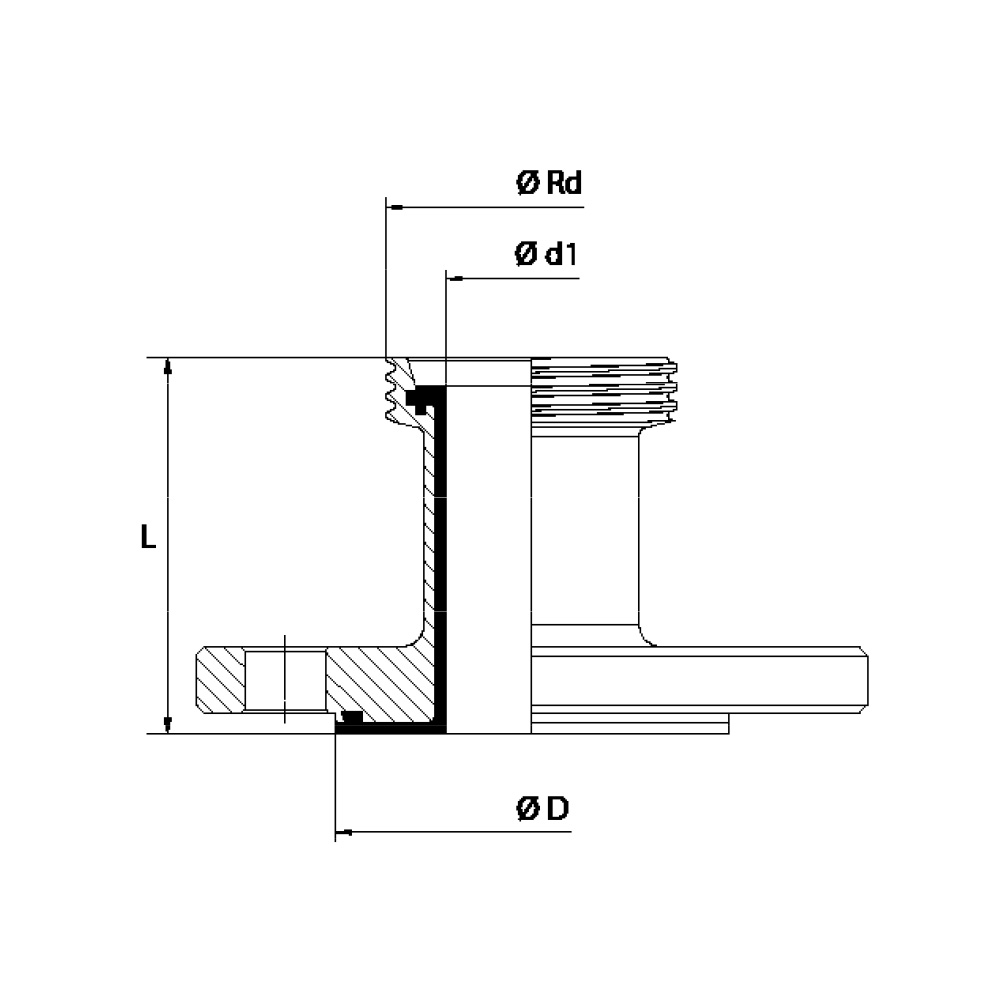

| DN | L | ØRd | Ø D DIN | Ø D ANSI | Ø d1 |
|---|---|---|---|---|---|
| 25 - 1" | 80 | 52-6 | 68 | 51 | 24 |
| 40 - 1 ½" | 90 | 65-6 | 88 | 73 | 38 |
| 50 - 2" | 95 | 78-6 | 102 | 92 | 50 |
| 80 - 3" | 110 | 110-4 | 138 | 127 | 81 |
| 100 - 4" | 120 | 130-4 | 158 | 158 | 90 |
