AISI 316L KF Selflock Retainer
- Data Sheet: C2-74

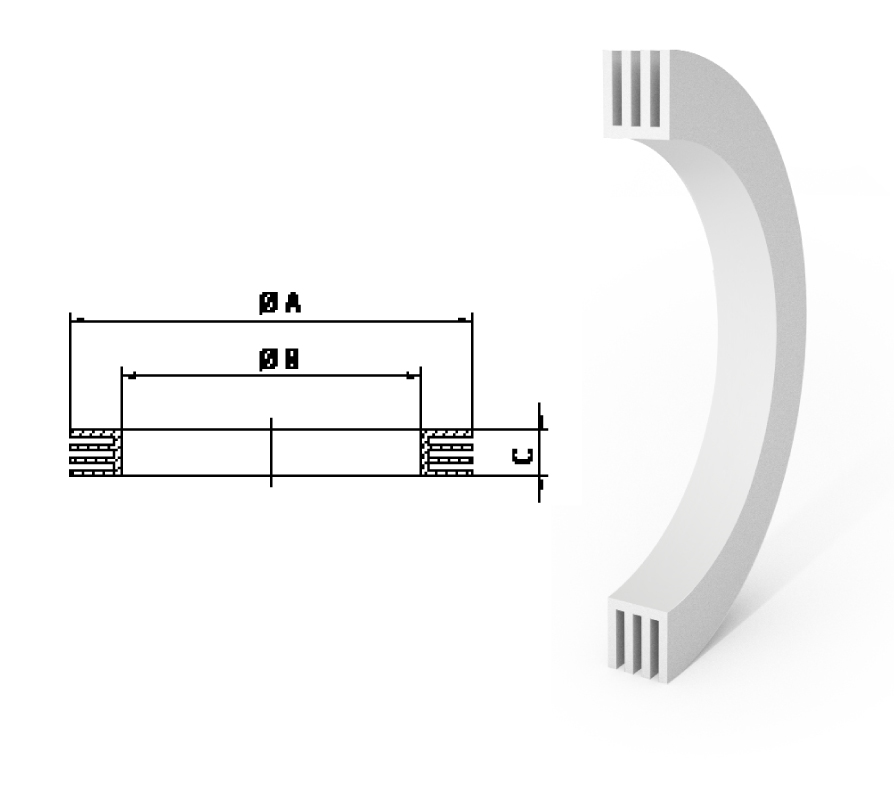

AISI 316L KF Selflock EN 14420-7:2004 CAM & GROOVE Retainer - Diflon F1
Fitting
Description

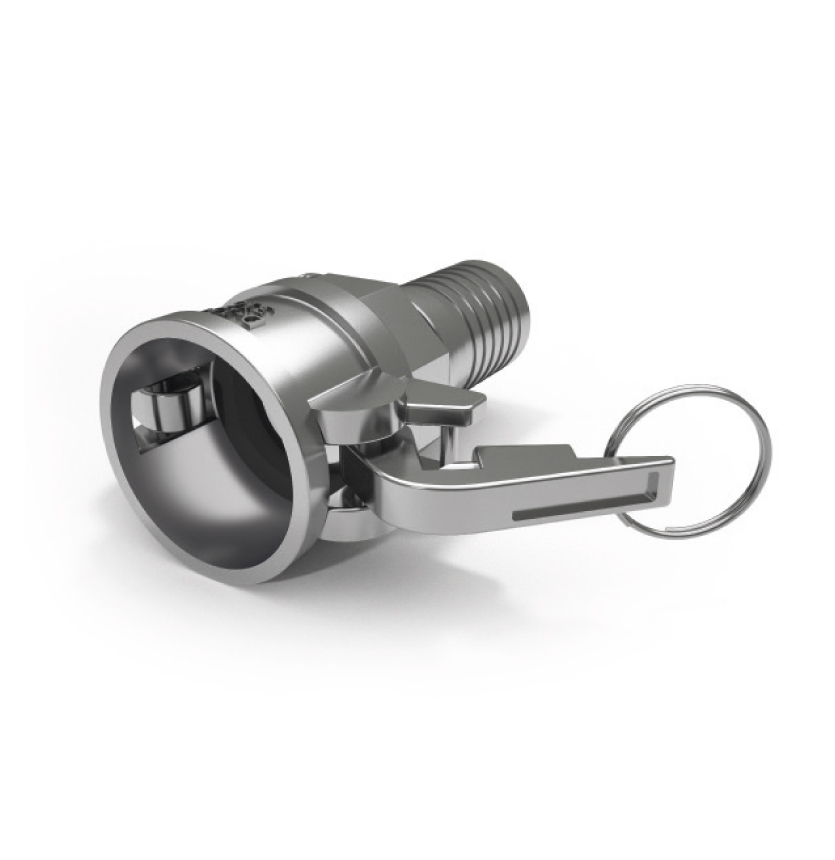

| The fast fitting is used in chemical, pharmaceutical and food industries. The CELERITY in connecting hoses, and safely, to equipments and plants is what distinguishes this type of fitting from the other ones. The standard construction material is AISI 316L. It is equipped with self-locking safety levers to avoid the accidental opening of the fitting. |

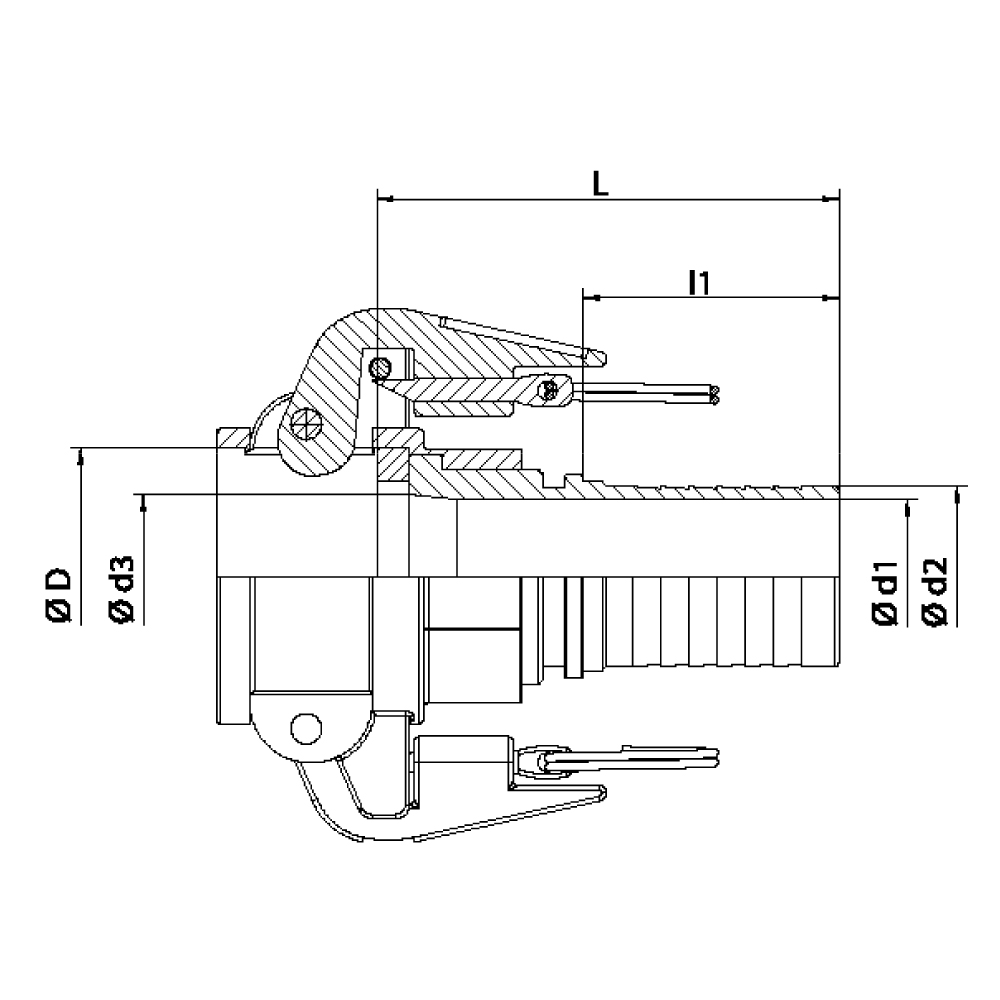

| DN | L | l1 | ØD | Ø d1 | Ø d2 | Ø d3 |
|---|---|---|---|---|---|---|
| 15 - ½" | 60 | 30 | 25,5 | 9 | 13 | 15 |
| 0 - ¾" | 70 | 31 | 30 | 15 | 19,2 | 20 |
| 25 - 1" | 80 | 34 | 37,5 | 21 | 25,7 | 26 |
| 32 - 1 ¼" | 90 | 40 | 45,5 | 28 | 32,4 | 32 |
| 40 - 1 ½" | 90 | 51 | 54 | 33 | 38,5 | 38 |
| 50 - 2" | 95 | 62 | 64 | 45 | 51 | 45 |
| 65 - 2 ½" | 115 | 68 | 76,5 | 58 | 64 | 58 |
| 80 - 3" | 135 | 81 | 92 | 69 | 75 | 73 |
| 100 - 4" | 140 | 92 | 121 | 96 | 101 | 101 |
