Tufluor® PTFE Chem Full Conductive

Suction and delivery hose designed according to EN 12115 standards for chemicals and solvents, except for chlorine trifluoride, chlorine and fluorine gas, oxygen difluoride, phosgene and molten alkalis (for ex. sodium). Designed for the chemical industry, foodstuff, pharmaceutical and cosmetic industry, where a flexible connection is required. The hose is produced with high quality elastomers, with excellent chemical and mechanical properties. Not intended for use as an implant material. Not suitable for blood or human fluids. Tested and certified hose by BUREAU VERITAS for use in Atex area (Ex-Zone).

Description

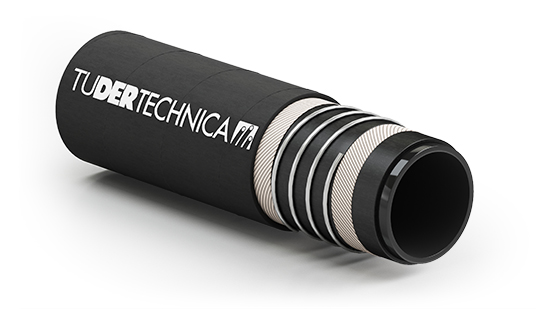

Tube
TEFLONTM PTFE, black, conductive, smooth, phthalates free, tested in compliance with 1907/2006/CE (REACH). TEFLONTM PTFE is a polymer with excellent resistance to high temperature, mechanical stress and to oxidation. It complies with FDA 21 CFR 177.1550 standards, USP XXXVI class VI, ISO 10993 Sections 5,10,11:2009, EUROPEAN REGLEMENT 1935/2004/CE AND 10/2011/CE

Reinforcement
synthetic plies, stainless steel wire helices, a/s wire to discharge static electricity

Cover
smooth, EPDM, black, conductive, cloth finish. Abrasion, ageing and ozone resistant

Sterilization
refer to guidelines for cleaning and sanitizing on Tudertechnica website

Marking
transfer rosso/bianco/blu
TUFLUOR® PTFE CHEM FULL CONDUCTIVE
embossed according to norm EN 12115 TUDERTECHNICA PTFE EN12115:2011 DN SD PN 16 BAR Ω/T Q/Y

Technical Charateristics
Temperature Range: -40°C / +150°C ( -40°F / +302°F) The operating temperature of the hose is directly dependent upon the specific fluid been conveyed and the length of time the fluid is in contact with the hose.
Electrical Properties:type Ω/T according to norm EN 12115 (RNorm: EN12115 - TRbF 131/2
