AISI 316L PFA Lined Flange Retainer
- Data Sheet: C2-56
AISI 316L PFA Lined Flange Retainer Diflon A2
Fitting
Description

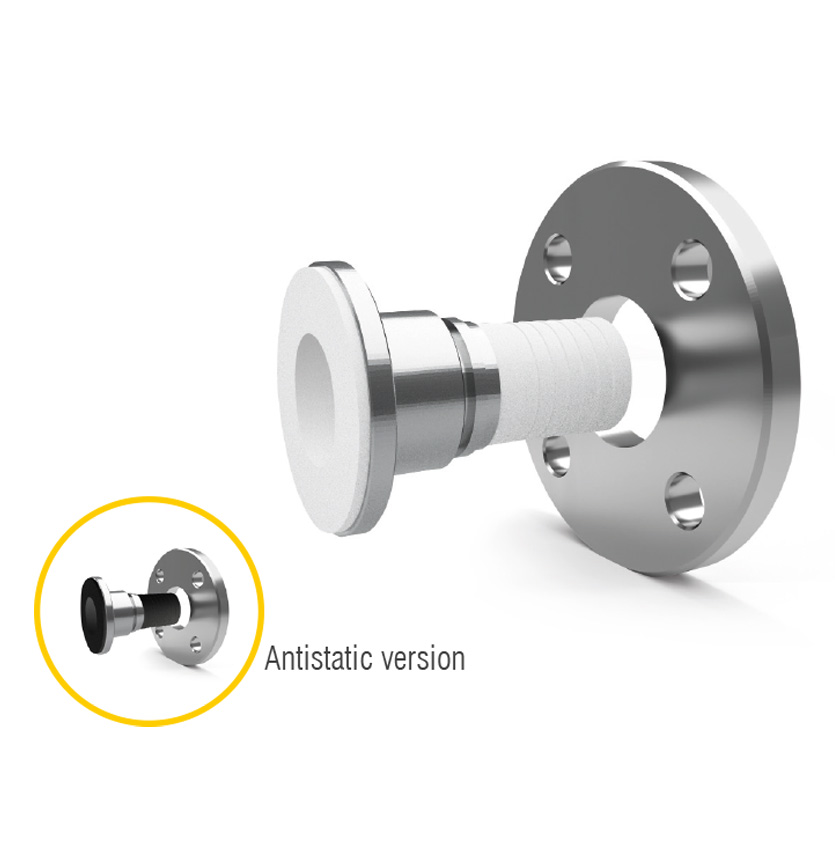

| The A2 fitting is supplied without flange and it is used in heavy conditions in chemicals, pharmaceuticals and food industries to connect hoses to flanged connections of equipments and plants. Standard construction material is AISI 316L/ PFA. The inner lining ensures resistance against chemicals, pH 0÷14, design temperature -40 °C ÷ 200 °C. The flange can be provided in the Standard Specification and material according to customer requirements. |

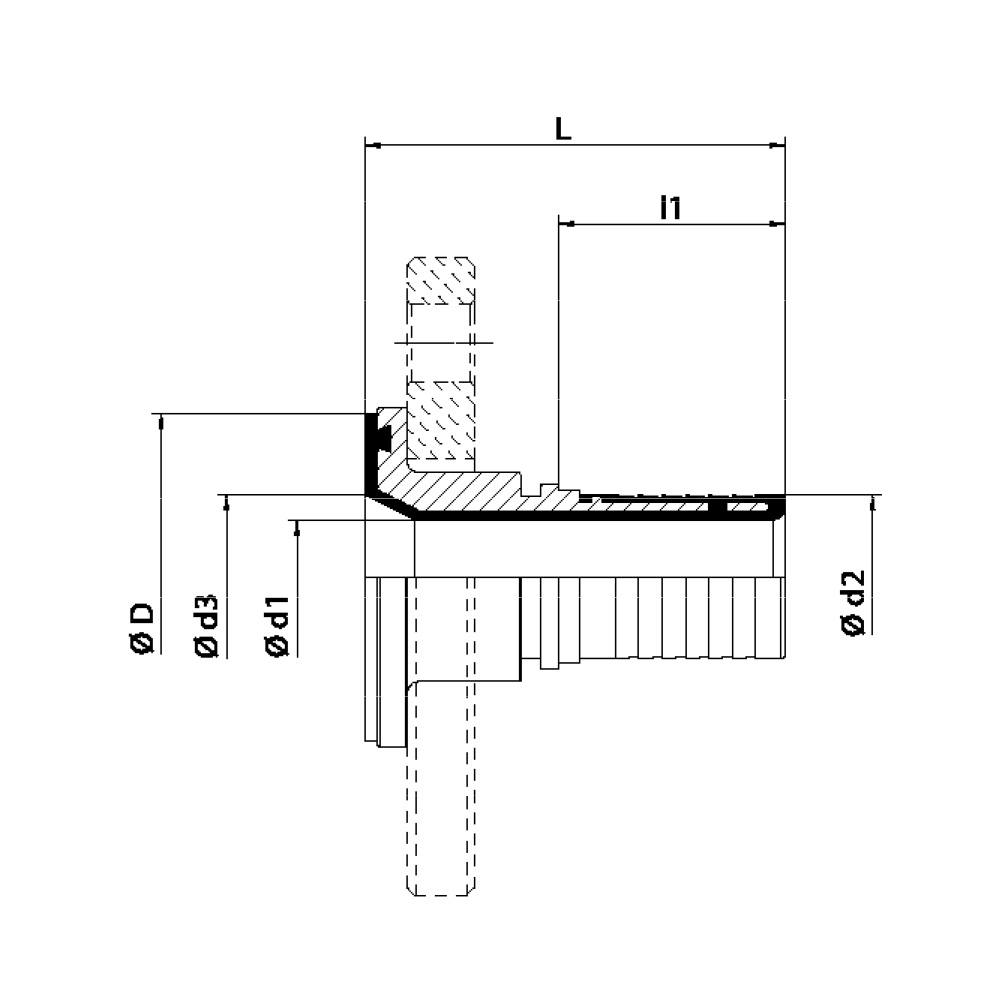

| DN | L | l1 | ØD | Ø d1 | Ø d2 | Ø d3 |
|---|---|---|---|---|---|---|
| 15 - ½" | 60 | 30 | 40 | 9 | 13 | 12 |
| 20 - ¾" | 65 | 31 | 47 | 12 | 19,2 | 15 |
| 25 - 1" | 70 | 34 | 58 | 16 | 25,7 | 20 |
| 32 - 1 ¼" | 80 | 40 | 68 | 22 | 32,4 | 28 |
| 40 - 1 ½" | 100 | 51 | 78 | 27 | 38,5 | 40 |
| 50 - 2" | 115 | 62 | 92 | 39 | 51 | 46 |
| 65 - 2 ½" | 120 | 68 | 105 | 51 | 64 | 57 |
| 80 - 3" | 135 | 81 | 127 | 60 | 75 | 66 |
| 100 - 4" | 150 | 92 | 158 | 87 | 101 | 90 |
