AISI 316L LBS FF
- Data Sheet: C2-82

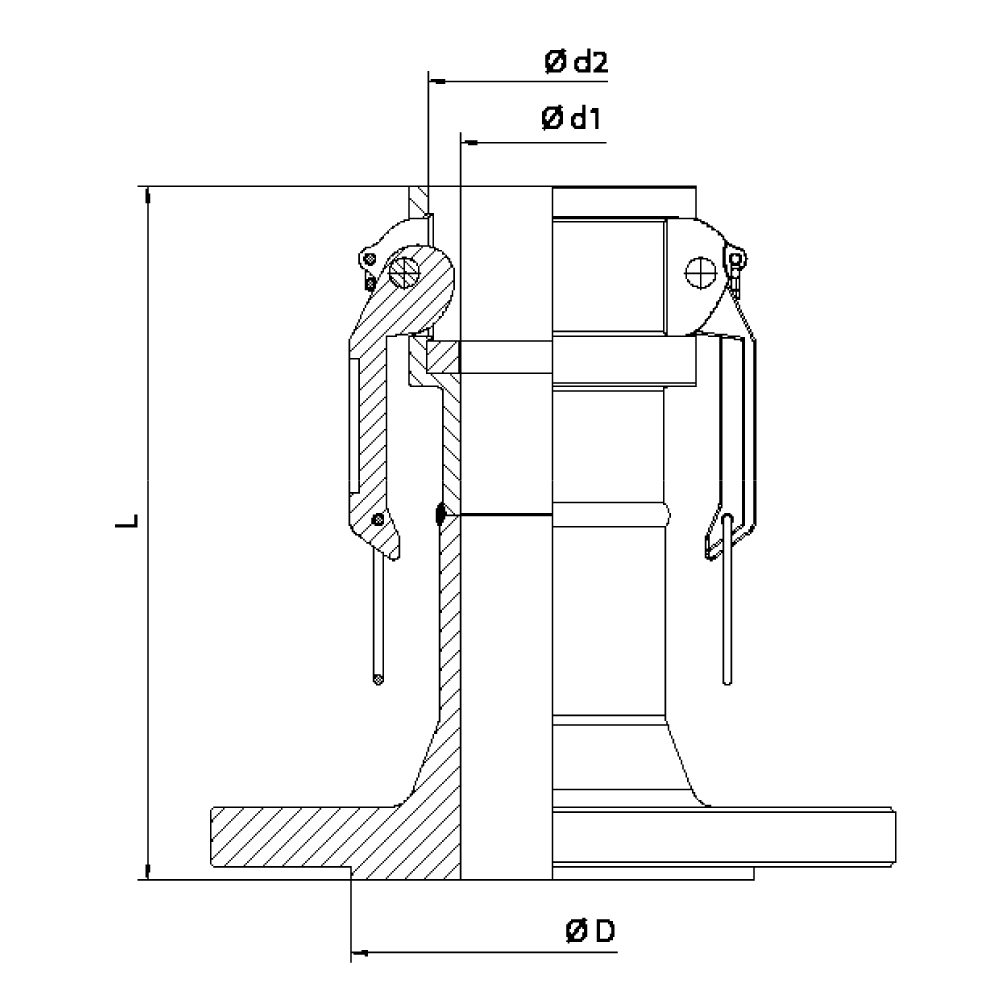

AISI 316L LBS FF EN 14420-7:2004 CAM & GROOVE - Diflon F9
Fitting
Description
| The fast fitting is used in chemical, pharmaceutical and food industries. The CELERITY in connecting hoses, to equipments and plants is what distinguishes this type of retainer from the other ones. The standard construction material is AISI 316L. The fitting flange is made according to the Standard Specification required by the customer. |
| DN | L | Ø D DIN | Ø D ANSI | Ø d1 | Ø d2 |
|---|---|---|---|---|---|
| 15 - ½" | 90 | 45 | 35 | 13 | 25,5 |
| 20 - ¾" | 90 | 58 | 43 | 20 | 30 |
| 25 - 1" | 100 | 68 | 51 | 24 | 37,5 |
| 32 - 1 ¼" | 110 | 78 | 64 | 32 | 45,5 |
| 40 - 1 ½" | 120 | 88 | 73 | 38 | 54 |
| 50 - 2" | 125 | 102 | 92 | 48 | 64 |
| 65 - 2 ½" | 130 | 122 | 105 | 60 | 76,5 |
| 80 - 3" | 145 | 138 | 127 | 74 | 92 |
| 100 - 4" | 150 | 158 | 158 | 102 | 121 |
