AISI 316L Female SMS 1145 with Protective Guard
- Data Sheet:
C2-64

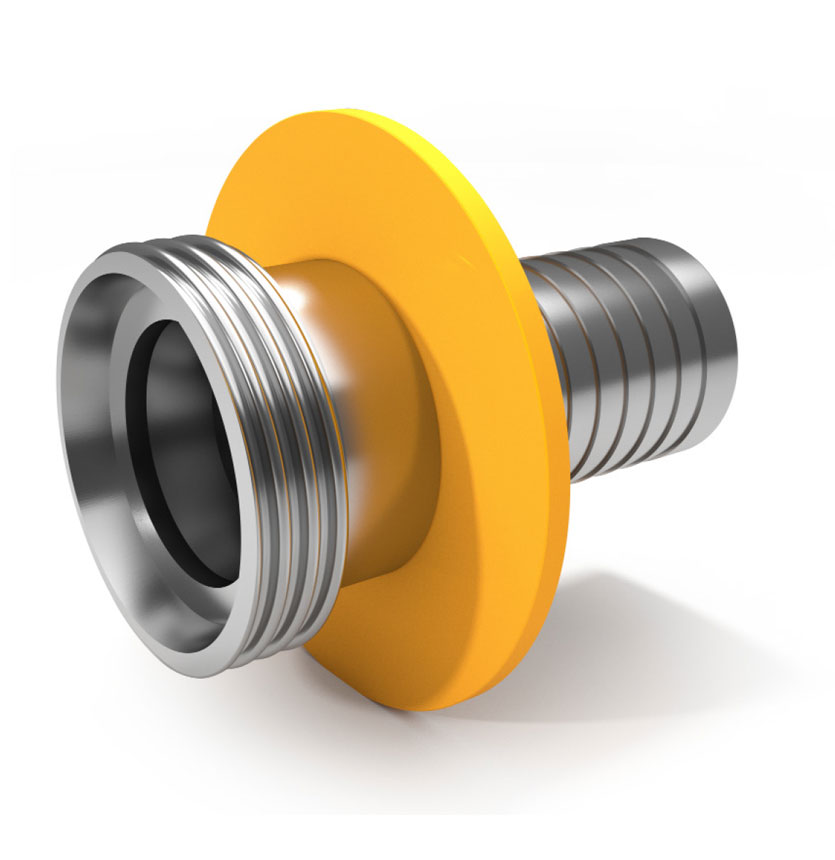

AISI 316L Female SMS 1145 with Protective Guard - Diflon C2
Fitting
Description
The fitting is used in chemicals and food industries to connect hoses quickly and safely to equipments and plants.
Standard construction material is AISI 316L. It is DIN 405 threaded. |
Gasket
Recommended Gasket
| DIFLEX SMS 1145 gasket, resistant to all acids and chemicals, pharmaceuticals and food products with temperatures from -170 °C to +270 °C and pressures up to 50 bar. |
Gasket SMS 1145
| DN |
ØA |
ØB |
C |
| 25 - 1" |
32 |
25 |
5,5 |
| 40 - 1 ½" |
48 |
36 |
5,5 |
| 50 - 2" |
61 |
51 |
5,5 |
| 80 - 3" |
86 |
76 |
5,5 |

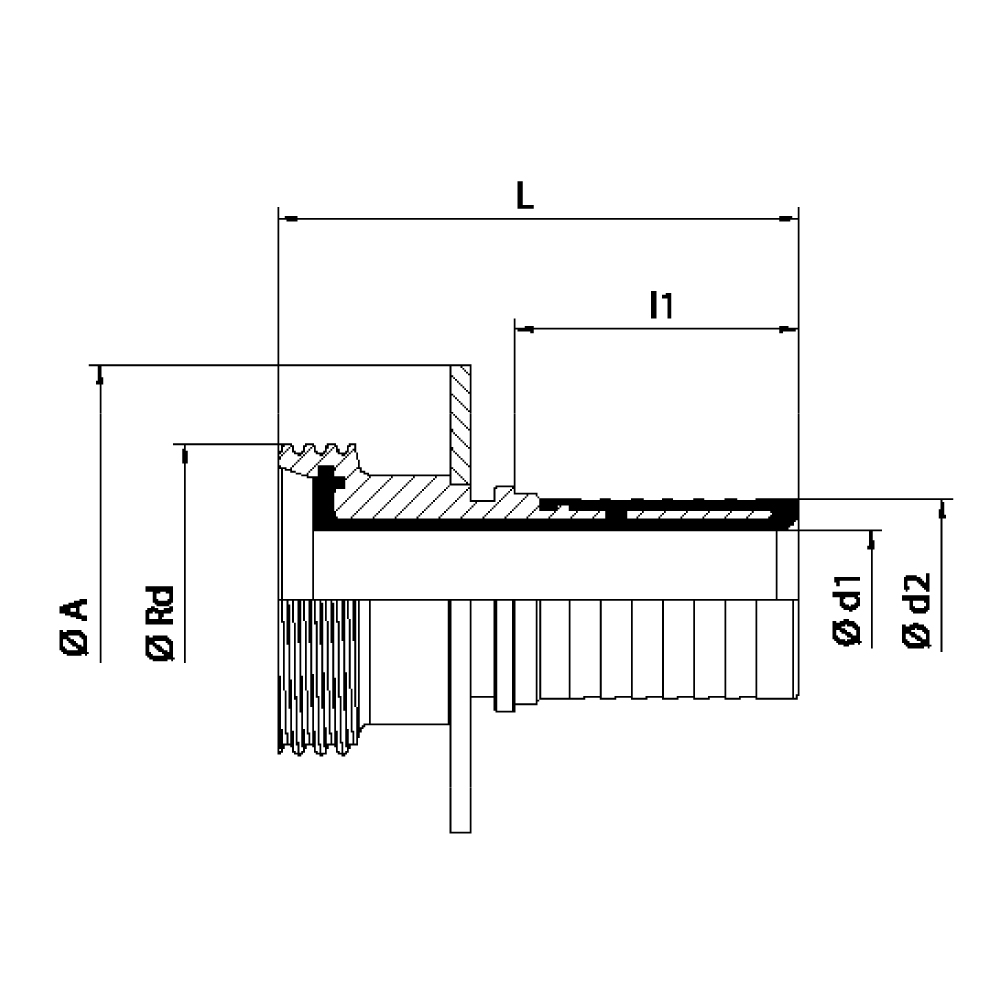

| DN |
L |
l1 |
Ø Rd |
Ø d1 |
Ø d2 |
ØA |
| 25 - 1" |
80 |
34 |
40-6 |
16 |
25,7 |
80 |
| 40 - 1 ½" |
85 |
51 |
60-6 |
27 |
38,5 |
100 |
| 50 - 2" |
95 |
62 |
70-6 |
39 |
51 |
110 |
| 80 - 3" |
130 |
81 |
98-6 |
60 |
75 |
150 |
