AISI 316L Male BSP/GAS Threaded Fitting with Protective Guard
- Data Sheet:
C2-70

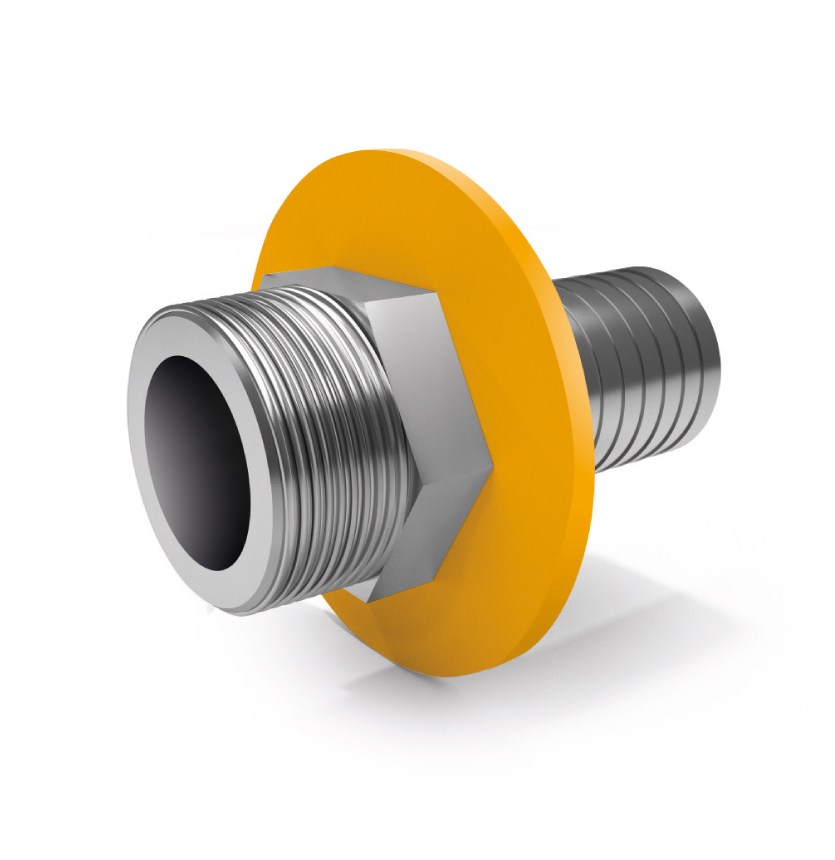

AISI 316L Male BSP/GAS Threaded Fitting with Protective Guard - Diflon D2
Fitting
Description
The fitting is used in chemical, pharmaceutical and food industries to connect hoses quickly to equipments and plants.
It is suitable for high pressure uses.
Standard construction material is AISI 316L. BSP/GAS thread. |
Gasket
Recommended Gasket
| DIFLEX BSP/GAS gasket, resistant to all acids and chemicals, pharmaceuticals and food products with temperatures from -170 °C to +270 °C and pressures up to 50 bar. |

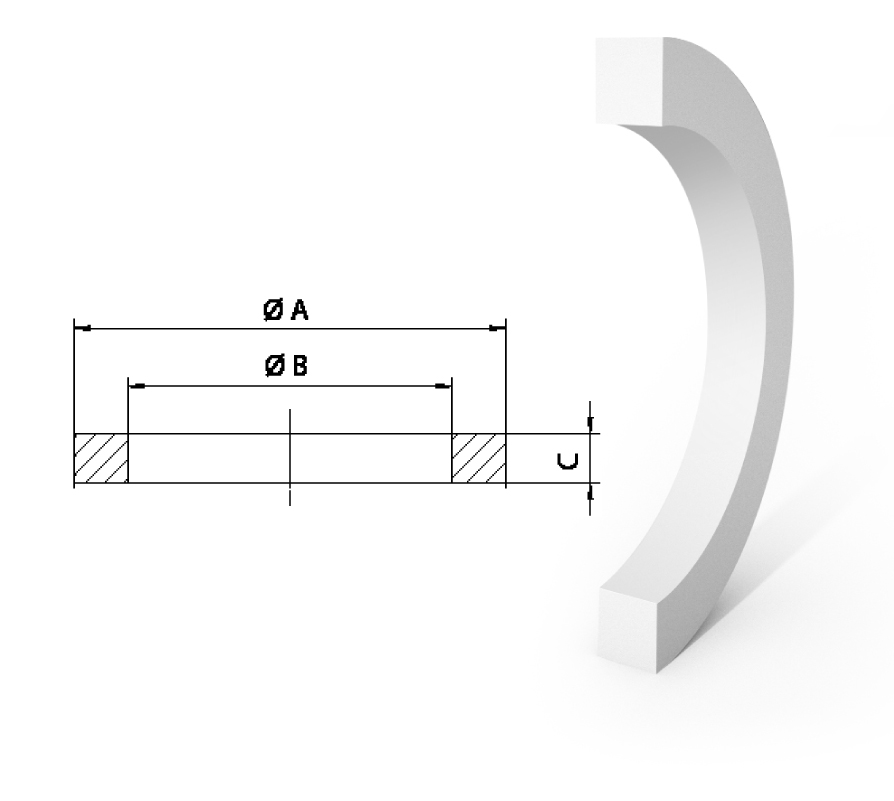

Gasket BSP/GAS
| DN |
ØA |
ØB |
C |
| 15 - ½" |
20 |
10 |
3 |
| 20 - ¾" |
26 |
16 |
3 |
| 25 - 1" |
32 |
21 |
3 |
| 32 - 1 ¼" |
40 |
29 |
3 |
| 40 - 1 ½" |
46 |
34 |
3 |
| 50 - 2" |
59 |
47 |
3 |
| 65 - 2 ½" |
73 |
60 |
3 |
| 80 - 3" |
86 |
72 |
3 |
| 100 - 4" |
112 |
97 |
3 |

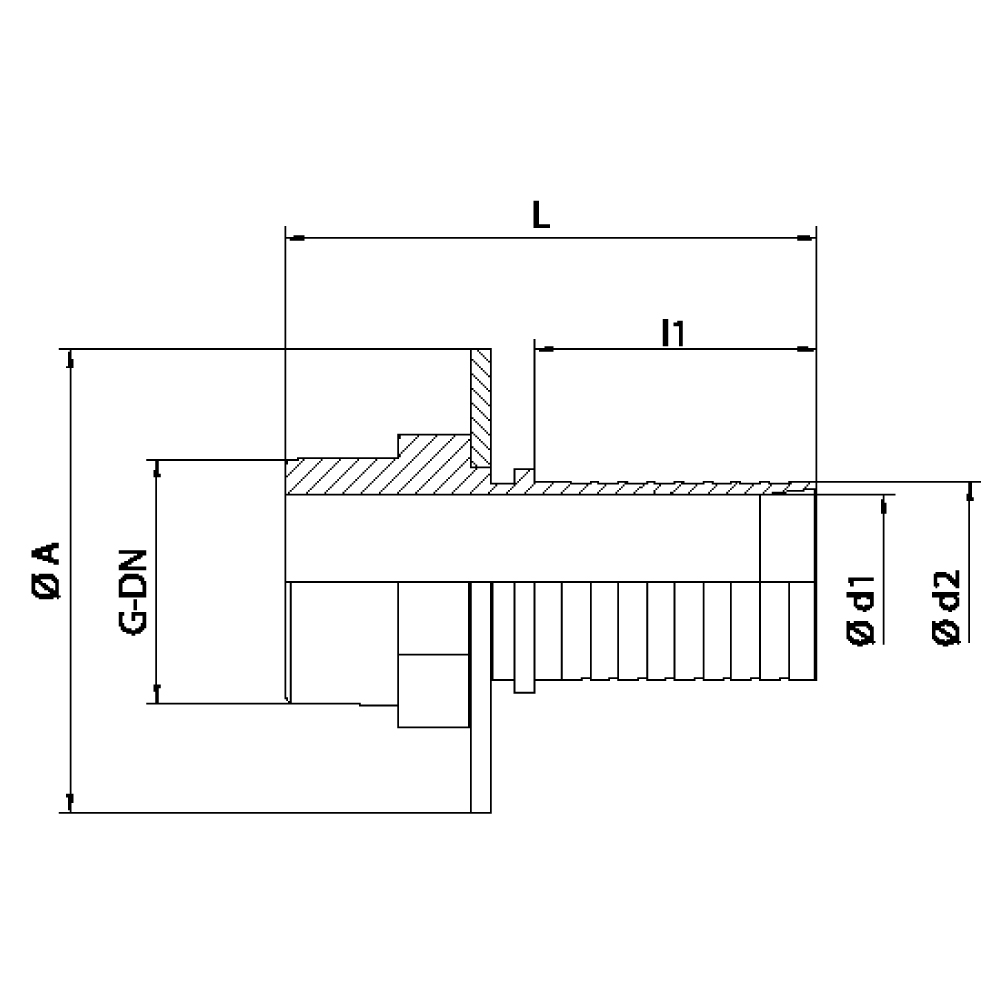

| DN |
L |
l1 |
G |
Ø d1 |
Ø d2 |
ØA |
| 15 - ½” |
60 |
30 |
1⁄2” |
9 |
13 |
70 |
| 20 - ¾” |
75 |
31 |
3⁄4” |
15 |
19,2 |
70 |
| 25 - 1” |
80 |
34 |
1” |
20 |
25,7 |
80 |
| 32 - 1 ¼” |
85 |
40 |
1 1⁄4” |
28 |
32,4 |
90 |
| 40 - 1 ½” |
90 |
51 |
1 1⁄2” |
33 |
38,5 |
100 |
| 50 - 2” |
100 |
62 |
2” |
46 |
51 |
110 |
| 65 - 2 ½” |
120 |
68 |
2 1⁄2” |
59 |
64 |
130 |
| 80 - 3” |
135 |
81 |
3” |
71 |
75 |
150 |
| 100 - 4” |
150 |
92 |
4” |
96 |
101 |
170 |
