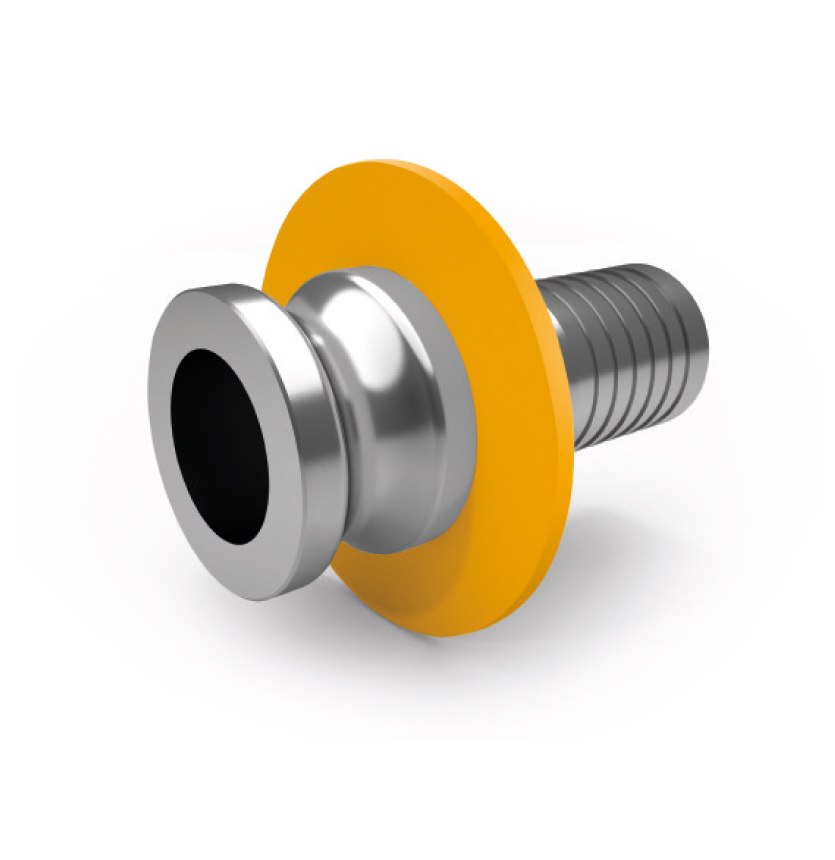

AISI 316L E Type with Protective Guard
- Data Sheet:
C2-95
AISI 316L E Type - EN 14420-7:2004 CAM & GROOVE with Protective Guard - Diflon F22
Fitting
Description
The fast fitting is used in chemical, pharmaceutical and food industries.
The CELERITY in connecting hoses, to equipments and plants is what distinguishes this type of fitting from the other ones.
The standard construction material is AISI 316L. |
Gasket
Recommended Gasket
| DIFLEX CAM & GROOVE gasket, resistant to all acids and chemicals, pharmaceuticals and food products with temperatures from -170 °C to +270 °C and pressures up to 50 bar. |
Gasket CAM & GROOVE
| DN |
ØA |
ØB |
C |
| 15 - ½" |
26 |
17 |
3,96 |
| 20 - ¾" |
35 |
22 |
5,53 |
| 25 - 1" |
40 |
27 |
6,35 |
| 32 - 1 ¼" |
49 |
34 |
6,35 |
| 40 - 1 ½" |
55 |
41 |
6,35 |
| 50 - 2" |
66 |
51 |
6,35 |
| 65 - 2 ½" |
79 |
60 |
6,35 |
| 80 - 3" |
94 |
76 |
6,35 |
| 100 - 4" |
123 |
102 |
6,35 |

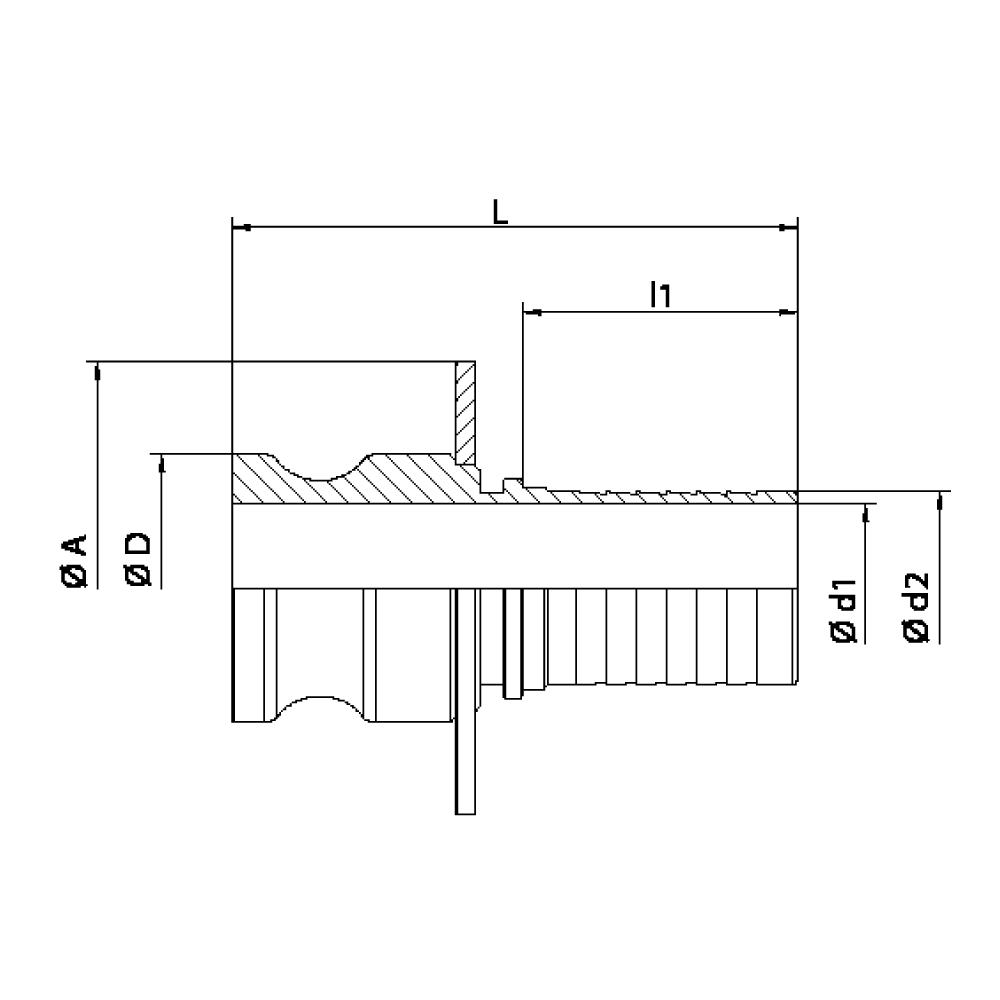

| DN |
L |
l1 |
ØD |
Ø d1 |
Ø d2 |
ØA |
| 15 - ½" |
66 |
30 |
24,5 |
15 |
13 |
70 |
| 20 - ¾" |
86 |
31 |
29 |
19 |
19,2 |
70 |
| 25 - 1" |
92 |
34 |
36,5 |
24 |
25,7 |
80 |
| 32 - 1 ¼" |
99 |
40 |
44,5 |
31 |
32,4 |
90 |
| 40 - 1 ½" |
101 |
51 |
53 |
37 |
38,5 |
100 |
| 50 - 2" |
120 |
62 |
63 |
46 |
51 |
110 |
| 65 - 2 ½" |
132 |
68 |
75,5 |
56 |
64 |
130 |
| 80 - 3" |
155 |
81 |
91 |
73 |
75 |
150 |
| 100 - 4" |
158 |
92 |
120 |
102 |
101 |
170 |
