AISI 316L BS 4825 Sanitary Clamp Retainer
- Data Sheet: C2-71

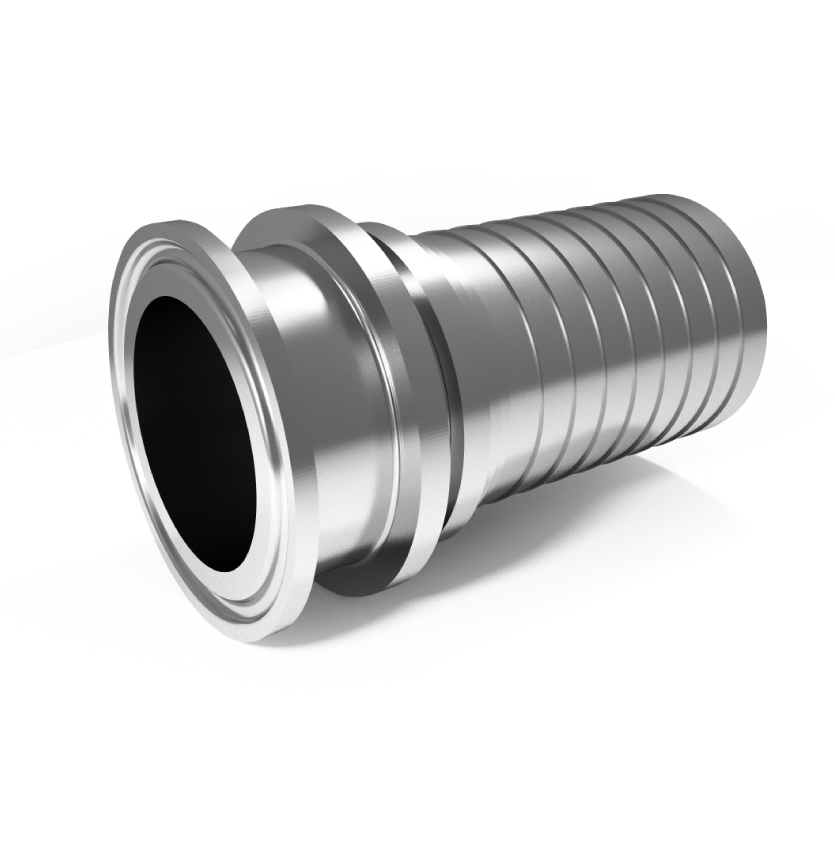

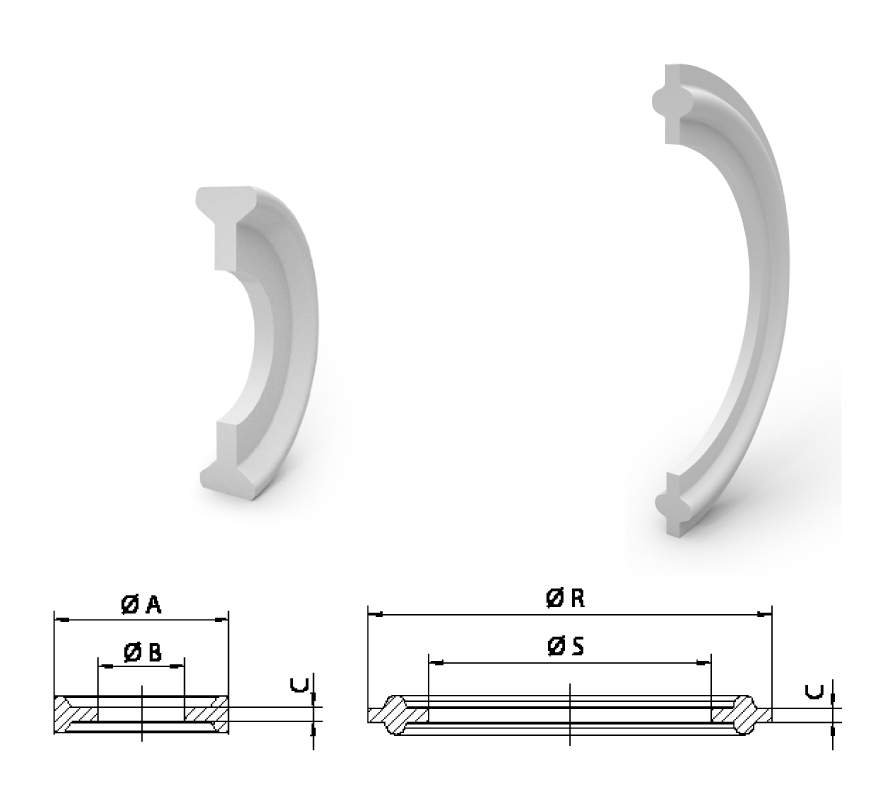

AISI 316L BS 4825 Sanitary Clamp Retainer - Diflon E1
Fitting
Description
| The fitting is used in pharmaceutical and food industries to connect hoses quickly to equipments and plants. Standard construction material is AISI 316L. The fitting is laser marked with material, lot/casting, DN and brand. Mechanical mirror polishing with standard surface finish Ra 0,6. Other finishes are available on request. |

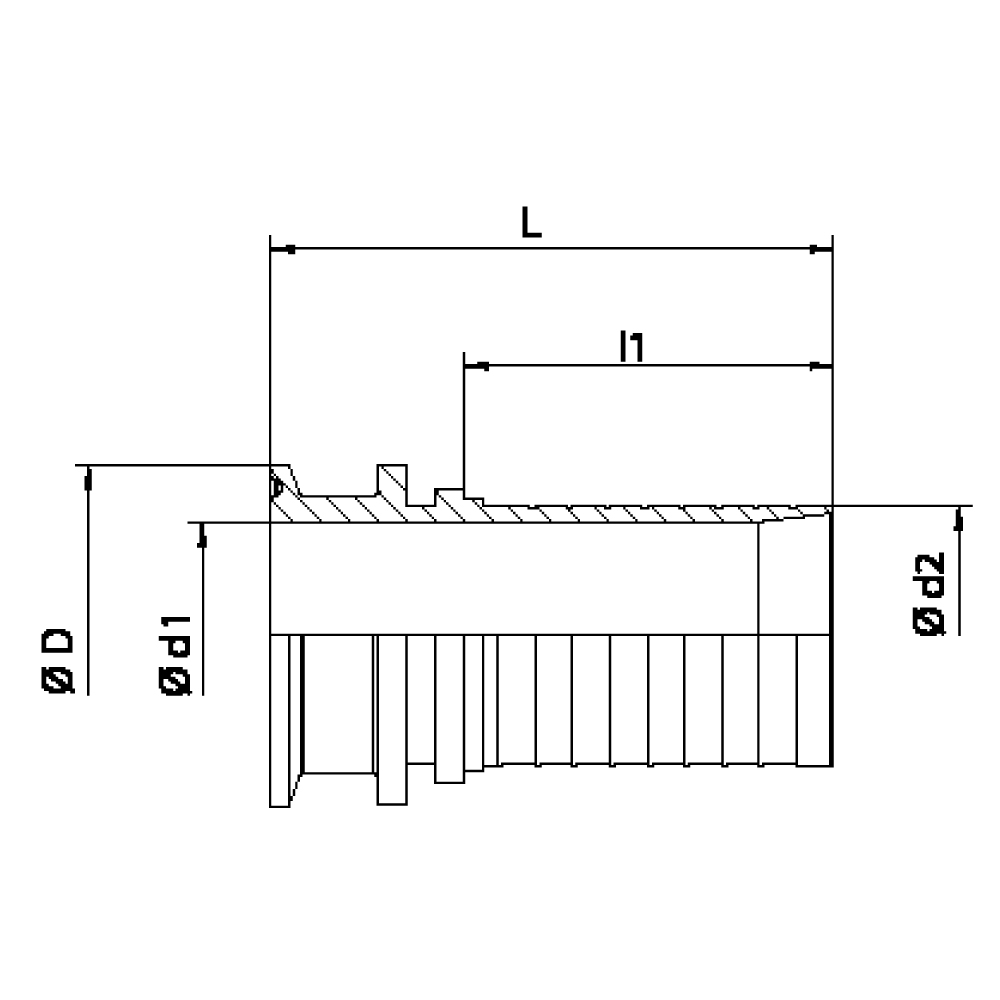

| DN | L | l1 | ØD | Ø d1 | Ø d2 |
|---|---|---|---|---|---|
| 15 - ½" | 58 | 30 | 25,4 | 9 | 13 |
| 20 - ¾" | 64 | 31 | 25,4 | 15 | 19,2 |
| 25 - 1" | 69 | 34 | 50,4 | 20 | 25,7 |
| 32 - 1 ¼" | 80 | 40 | 50,4 | 28 | 32,4 |
| 40 - 1 ½" | 94 | 51 | 50,4 | 33 | 38,5 |
| 50 - 2" | 109 | 62 | 63,9 | 46 | 51 |
| 65 - 2 ½" | 115 | 68 | 77,4 | 59 | 64 |
| 80 - 3" | 134 | 81 | 90,9 | 71 | 75 |
| 100 - 4" | 150 | 92 | 118,9 | 96 | 101 |
